TCD-104/S400, TCD-108/S400 - 4/8-Channel K Type Thermocouple Data Logger Module

New Products 2023-01-11

Introduction：

TCD-104 and TCD-108 are high precision temperature data loggers which support 4/8-channel K-type thermocouple sensors. They are powered by 4x AAA batteries that can operate for more than 60 hours. With an optional thermal insulation box, they can operate in 400℃ environment. TCD-104 and TCD-108 are suitable for use in the industries that concern the temperature change in their manufacturing process, especially heating curve in ovens. A free software utility iTCLogger is provided to download data, display trend chart and analyze data.

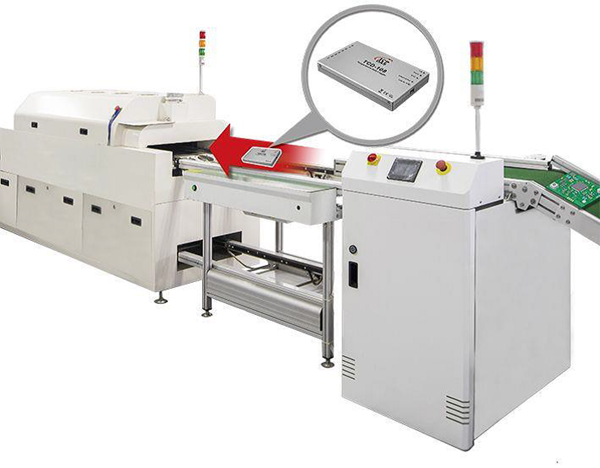

TCD-104_application

Features:

4/8-channel K-type thermocouple (±0.5℃ Accuracy)
High precision measurement
Sampling rate: 50 ms to 60000 seconds
Max. recording for each channel: 450,000/300,000
Powered by 4x AAA batteries (60 hours @ 50 ms sampling rate)
400℃ operating temperature with thermal insulation box
Easy-to-use interface
Traceable temperature data

Applications:

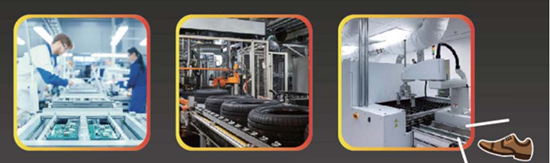

SMD assembly manufacturing, PC board manufacturing, footwear manufacturing, food industry, pharmaceutical industry and any temperature measurement required industries.

TCD-104_application_02

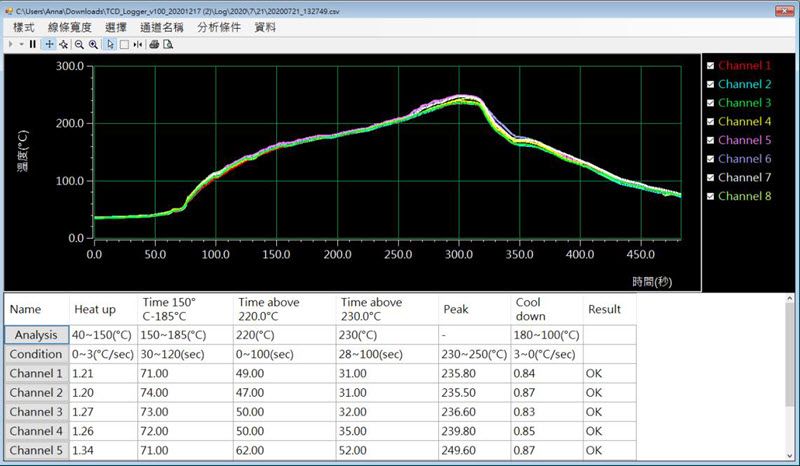

Software: iTCLogger Utility
iTCLogger Utility is used to configure and download the data from TCD-104 and TCD-108 via the USB. It can display the trend chart and analyze the logged data.

iTCLogger軟體

For more information, refer to：
https://www.icpdas.com/en/product/TCD-104_S400
https://www.icpdas.com/en/product/TCD-108_S400
