Introduction:

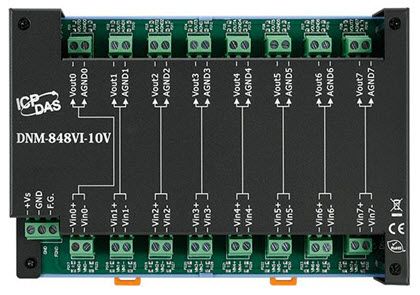

The DN-848VI series are voltage input attenuator. The maximum input range is ±10 V / ±80 V / ±150 V and can be attenuated to ±10 V. The "I" version provides 3000VDC intra-modules isolation and 3000VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS etc. to measure the high voltage.

Features:

• AC/DC Source Input
• High Voltage Input Measurement
• Linear Attenuation Ratio
• High Input Impedance
• Channel to Channel Isolation
• 4 kV ESD Protection
• 3 kV Surge Protection
• Easy Wire Connection
•

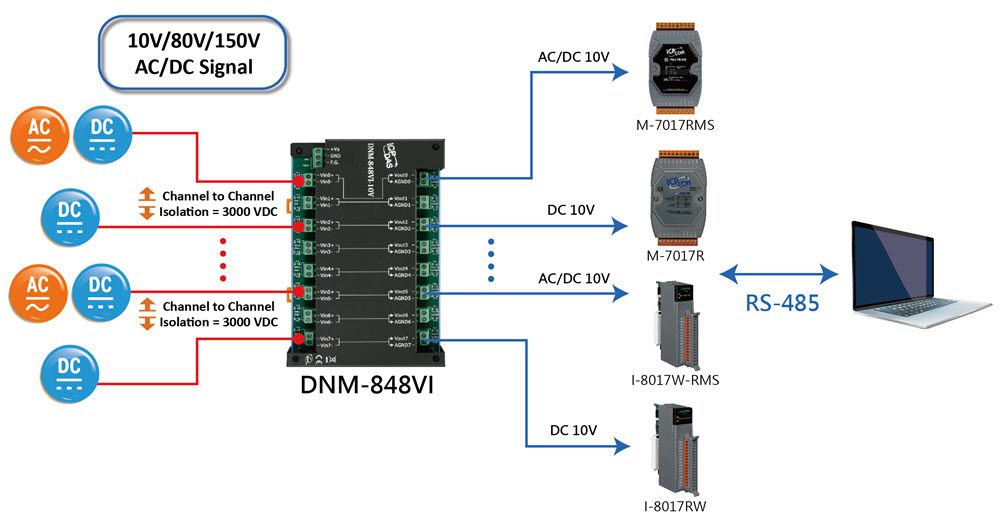

Applications:

For more details, please visit Website:
https://www.icpdas.com/en/product/DNM-848VI-10V
https://www.icpdas.com/en/product/DNM-848VI-80V
https://www.icpdas.com/en/product/DNM-848VI-150V
