VPD-130-H2/130N-H2 – 3.5” Touch HMI Device with RS-232/RS-485, USB, RTC and support XV-board
New Products
2022-05-26
Introduction:

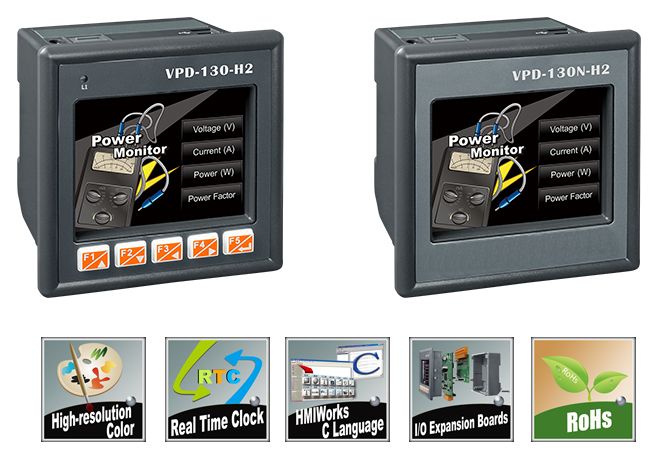

The TouchPAD VPD 3.5" Series is a series of industrial touch HMI devices that features 3.5" high-color high-resolution touch screen LCD. With touch screen capability, it is easy to deploy into all kinds of automation systems, and make them more intuitive and efficient. Either setup new system installations or complete system retrofits, VPD series stands out for its wide variety of communication methods. Its built-in communication ports include RS-232/RS-485 and USB interface, enable integration into the system allowing users to control, monitor I/O at the remote sides. Besides, front-panel IP65 waterproof as well as the rubber keypad make the VPD series more reliable for rugged environments.HMIWorks, the free development software for VPD series, provides an easy-to-use environment, and powerful and intuitive programming with graphic capabilities to let users create appealing graphical interface screens in minutes. For PLC users, HMIWorks provides Ladder Designer and C language environment for IT users. Especially, it only takes no more than 30 minutes to learn how to create an application program when using Ladder Designer. With all the features provided, VPD series touch HMI Devices must be the most cost effective HMI Device ever been in the market.
Features:
The following is the features comparisons table for the VPD-130-H2/130N-H2 series models:| Model | Memory Expansion | Image Storage Capacity | COM Port | LCD | RTC | I/O Expansion Boards | Rubber Keypad | Ingress Protection | Power Input |
|---|---|---|---|---|---|---|---|---|---|
| VPD-130-H2 | 16 MB SDRAM/16 MB Flash | 108 | COM1: RS-485/RS-232 | 3.5 TFT (Resolution 320 x 240, 65536 colors) | Yes | Yes | Yes | Front Panel: IP65 | +12 ~ 48 VDC |
| VPD-130N-H2 | - |
The following is the I/O expansion board selection guide for the XV-Board series models:
|
DIO Expansion
|
||||||
| Model | DI | DO | ||||
|---|---|---|---|---|---|---|
| Channel | Type | Sink/Source | Channel | Sink/Source | ||
| XV107 | 8 | Wet | Source | 8 | Sink | |
| XV107A | 8 | Wet | Sink | 8 | Source | |
| XV110 | 16 | Dry/Wet | Sink/Source | - | - | |
| XV111 | - | - | - | 16 | Sink | |
| XV111A | - | - | - | 16 | Source | |
| XV116 | 5 | Wet | Sink/Source | 6 | Power Relay, Form A | |
|
Multi-Function Expansion
|
|||||||||
| Model | AI | AO | DI | DO | |||||
|---|---|---|---|---|---|---|---|---|---|
| Channel | Range | Channel | Range | Channel | Type | Sink/Source | Channel | Sink/Source | |
| XV306 | 4 | ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA |
- | - | 4 | Wet | Sink/Source | 4 | Relay, FormA, 6A |
| XV307 | - | - | 2 | 0 V ~ +5 V, ±5 V, 0 V ~ +10 V, ±10 V, 0 mA~ +20 mA, +4 mA ~ +20 mA |
|||||
| XV308 | 8 | ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA |
- | - | DI+DO=8 | Dry/Wet | Source | DI+DO=8 | Sink |
| XV310 | 4 | 2 | 0 V ~ +5 V, ±5 V, 0 V ~ +10 V, ±10 V, 0 mA~ +20 mA, +4 mA ~ +20 mA |
4 | Dry/Wet | Source | 4 | Source | |
For more information, please visit the VPD-130-H2/130N-H2 and XV-Board web site.
