I-7012/I-7012D Hardware

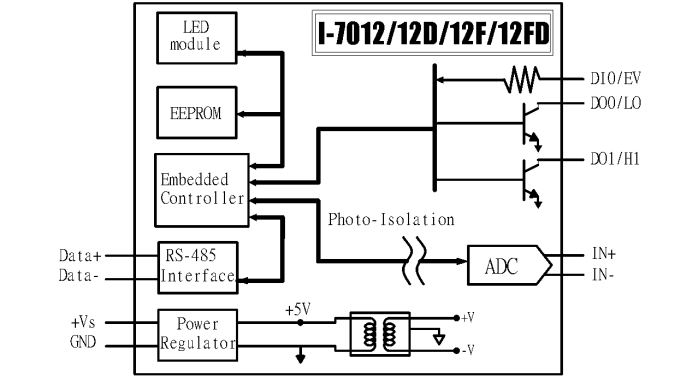

Internal I/O Structure

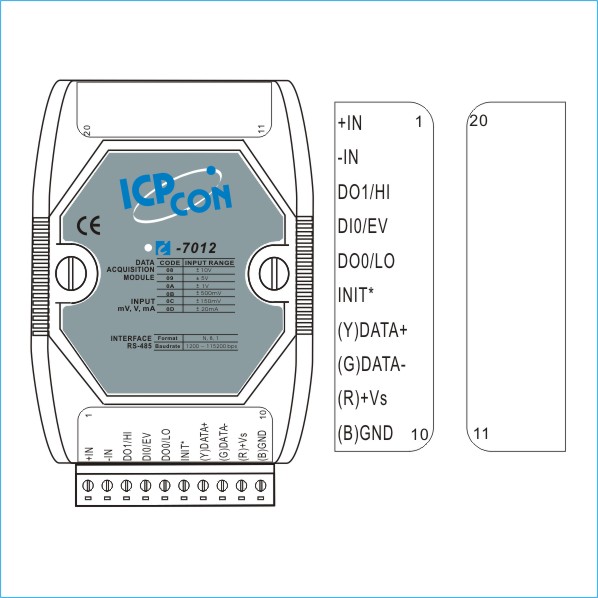

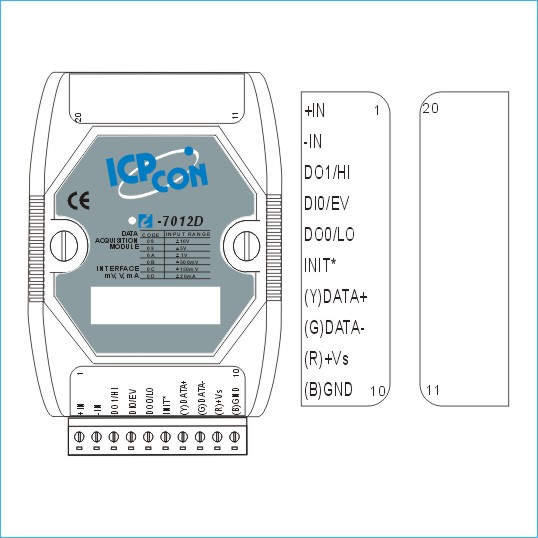

PIN Assignment






Wire Connection

Analog Input Wire Connection

Note: When connecting to a current source, an optional external 125-Ohn resistor is required.

Digital Input Wire Connection

Digital Output Wire Connection
