MD series modules

How to select MD series modules
    The MD-11 features a female 37-pin D-sub connector and works with I-8041 or I-87041. The MD-12 features a female 37-pin D-sub connector and works with I-8040 or I-87040. The I-8041, I-87041, I-8042, I-87042 are all digital series I-8000 PAC and WinCon-8000.

An MD series module is used to extend the I/O distance of PC and PAC
    Since a PC and PAC have many network adapters, they don't really require an MD series module to implement an FRnet network. Therefore, long-distance I/O extension is the best application for MD series modules.

• Communication speed: 250K bps
• Communication distance: 400m max
• Digital input channels: 32
• Digital output channels: 32

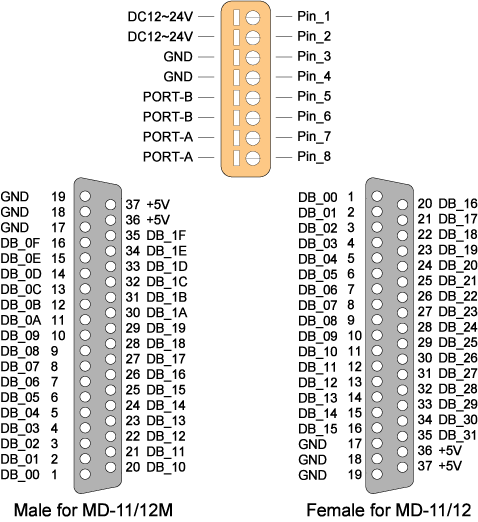

• Connector type:37-pin D-sub female connector (MD-11, MD-12)
• Power requirements: 12~24V
• Wire cable: CPEV 0.9S (2P twisted-pair wire)
• Power consumption: 1.2 W
• Operating temperature: -25°C ~ +75°C
• Operating humidity: 10% ~ 90% RH, non-condensing
• Storage temperature: -30°C ~ +85°C
• Storage humidity: 5% ~ 95% RH, non-condensing
• Dimensions: 76 mm x 73 mm x 15 mm
