Functional Description

    The FR-16POR has 16-channel photo-MOS relay output. The FR-16SSRA/SSRD has 16 solid-state relays. Not like traditional relay output board, the FR I/O module has an FRnet interface. It can be used as a distributed remote I/O module or a MagicWire module. The user should select the correct setting when using these modules. Refer to jumper setting. The user can daisy chain several FRnet modules together. Via FRnet, the FRnet modules can work with PC, PAC, μPAC and PLC easily. Further information about the networking of FR- 16POR, FR-16SSRA and FR-16SSRD; refer to related literatures of I- 7188EF, I-8172, FRB-100/200.

• Factory Automation
• Building automation
• Energy management
• Agriculture automation

• Communication speed: 250K bps
• Communication distance: 400m max
• Output:
  Channels: 16
  DC-type SSR Form A
  "OFF-state" leakage current: 1.0 μA max
  Surge current: 50A
  Load Voltage: 3-50 VDC
  Surge current: 50A
• Power Requirement: 10~30V
• Wire cable: CPEV 0.9S (2P Twisted-pair wire)
• Power consumption:
  24V@150mA(max) (FR-16SSRD)
• Operating temperature: -25°C ~ +75°C
• Operating humidity: 10% ~ 90% RH, non-condensing
• Storage temperature: -30°C ~ +85°C
• Storage humidity: 5% ~ 95% RH, non-condensing
• Dimensions:173 mm x 117 mm (FR-16SSRD)

• Built-in FRnet interface
• Real I/O synchronization
• Innovative token-stream technology
• Support Broadcasting
• Real Deterministic Control
• Fixed Scan time: 256 points @ 2.88 ms
• Each bank consists of 8 input channels and has its own ground reference
• ASIC design without CPU
• Memory-map I/O
• No protocol and no software overhead
• Easy Programming and OS-independent
• Din-rail mounting
• Two-Wire Cabling

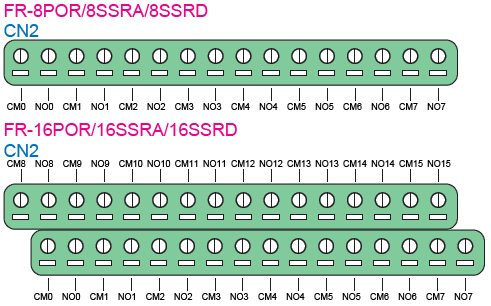

• Jumper setting
• Interface circuit
