ET-6000 Web based I/O module |
|
| |
.jpg) |
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |

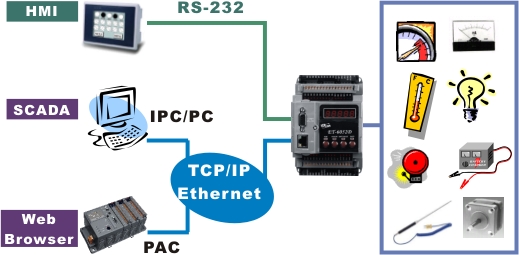

The ET-6000, a web-based Ethernet I/O module, features a built-in web server which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as you surfing the Internet.
Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-6000 offers easily and safely access for users from anytime and anywhere!
In addition, the ET-6000 also supports various Modbus functions. For example, Modbus/TCP slave, Modbus/TCP to Modbus/RTU gateway, Modbus/RTU master, Modbus/RTU slave, and etc, that makes perfect integration for ET-6000 to SCADA software.
The ET-6000 is designed for applications to industrial monitoring and measurement; therefore, we have made it toughly enough to survive the harsh and rough environment. The module contains 2-way isolation from noise and surges, one for digital inputs and the other for Ethernet. The ET-6000 has got a wild range of power input (10~30 VDC) and operating temperature (-25¢XC ~ +75¢XC). |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Built in Web Server |
Each ET-6000 module has a built - in web server that allows the users to easily configure, monitor and control the module from a remote location using a regular web browser. |
|
|
| Web HMI |

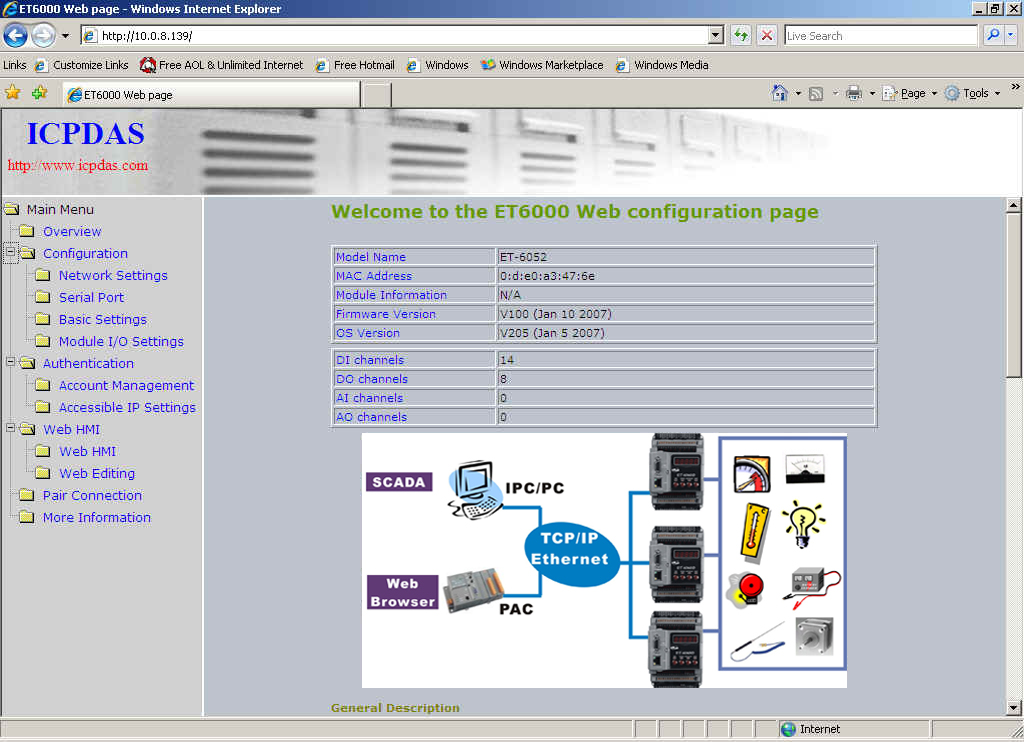

The Web HMI function allows the users to create dynamic and attractive web pages to monitor and control the I/O points. Users can upload specific I/O layout pictures (bmp, jpg, gif format) and define a description for each I/O point. No HTML or Java skills are needed to create the web pages. |
|
|
| Communication Security |
An Account and password is needed when logging into the ET-6000 web server. An IP address filter is also included, which can be used to allow or deny connections with specific IP addresses. |
|
| Modbus Protocol |
The Modbus/TCP slave function on the Ethernet port can be used to provide data to remote SCADA software. |
The Modbus/TCP slave function on the Ethernet port can be used to provide data to remote SCADA
software. |
| The Modbus/RTU slave function on the RS-232 port can be used to connect to a local HMI. |
The Modbus /TCP to Modbus/RTU gateway function through the Ethernet port to the RS-232 port can
be used to upgrade a serial device with Ethernet communication ability.
|
|
|
| Built-in Multi-functionI/O |
A ll D igital Out put modules provide : |
| Power on value (On boot up, the DO status is set to the Power-on value) |
Safe value (If Modbus/TCP communication is lost for a certain period, the DO status will be set to the
user defined safe value)
|
All Digital Input modules provide : |
| High/Low latched status |
DI channels can also be used as DI status and 16-bit low speed (100Hz) counters.
|
An LED indicator is used for each DI or DO channel |
|
|
| All-in-one Module |
Various I/O components are mixed with multiple channels in a single module, which provides the most cost effective I/O usage and enhances performance of the I/O operations |
|
| 3-way Isolated Noise/Surge Protection |
To protect the hardware from damage caused by noise and surge, ET-6000 module is designed with isolation circuits for Ethernet, I/O and Power. |
|
| Portable Configuration |
All configuration settings can be saved to the EEPROM on the ET6000, which is mounted on a daughter board (called the ¡§portable¡¨ board), meaning that the settings can stored and easily backed up and moved. |
|
| Built-in Dual Watchdog |
The Dual Watchdog consists of a Module Watchdog and a Host Watchdog. |
Module Watchdog is a built-in hardware circuit that can be used to monitor the operation of the
module and will reset the CPU module if a failure occurs in the hardware or the software. |
Host Watchdog is a software function that can be used to monitor the operating status of the
host, and is used to prevent network communication problems or host failures
. |
|
|
| Automatic
MDI / MDI-X Crossover for Plug-and-play |
RJ-45 port supports automatic MDI/MDI-x that can automatically detect the type of connection to the Ethernet device without requiring special straight or crossover cables. |
|
| Ventilated Housing Designed to Operate Between -25¢XC to +75¢XC |
ET-6000 is housed in a plastic-based shell/case with a column-like ventilator that helps to cool the working environment inside the shell/case and ET-6000 to operate at temperatures ranging from -25¢XC to +75¢XC. |
|
| I/O Pair
Connection |
This function is used to create a DI to DO pair through the Ethernet. Once the configuration is completed, ET-6000 module can poll the status of local DI channels and then use the Modbus/TCP protocol to continuously write to a remote DO device in the background. |
|
|
|
|
|
|
| |
