I-7547
~ NEW ~
Ethernet to HART Converter

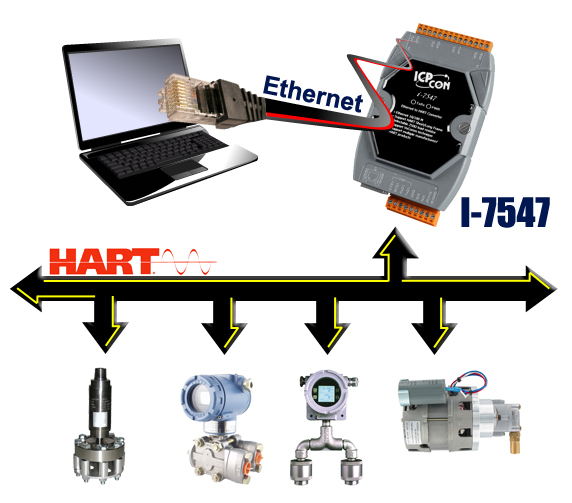

I-7547 is an Ethernet to HART converter specially designed as the master device of HART protocol. When connecting I-7547 to PC via Ethernet and install the VxComm utility, it will allow users to access the HART devices via virtual COM-port of PC. Therefore, users can make data collection and processing of HART network easier and quicker by applying I-7547. In addition, we also provide the free HC_Tool utility for module configuration and HART communication test easily.






  • Current Measuring
  • Petrochemical Industry Application
  • Environment Monitoring
  • Tunnel Monitoring
  • Monitor system
  • Building Monitoring






  • Support HART Short/Long frame
  • Support HART Burst mode
  • Support point-to-point or multi-drop HART mode
  • Support connecting up to 15 HART slave devices
  • Allow two HART masters

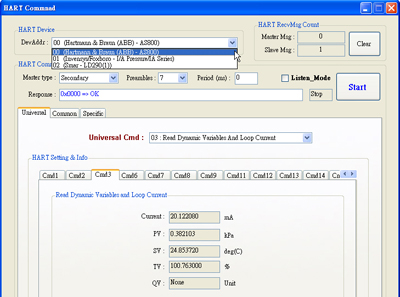

  • Provide HC_Tool utility for module configuration and HART communication
  • Support firmware update via Ethernet
  • Provide PWR / TxRx indication LED
  • 4KV ESD Protection
  • Built-in Watchdog
  • Selectable 250Ω load resistor
  • Provide four HART channels
  • Support VxComm technique
  • Built-In Web Server for network setting
  • Support FDT (Field Device Tool) technique and the below FDT software have been tested OK

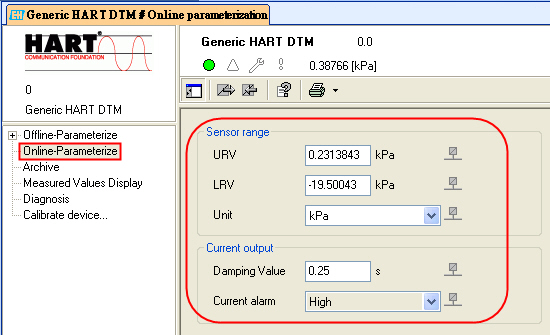

(1) PACTware (PACTware)
(Free download: http://www.pactware.com/en/products/pactware.html)

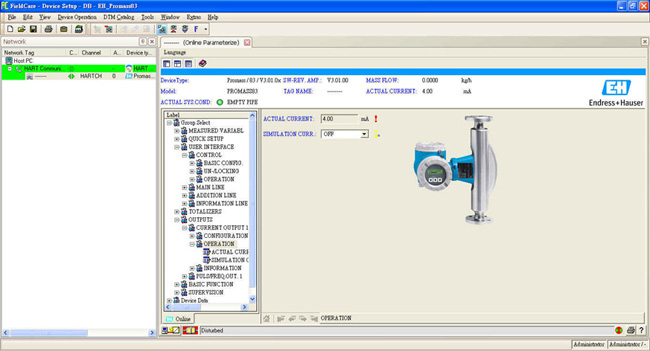

(2) FieldCare (Endress+Hauser)
(Download: http://portal.endress.com/wa010/FieldCareDownloadGui/)

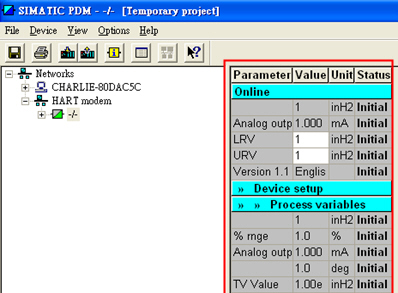

(3) PDM (Seimens)
(Download: http://support.automation.siemens.com/cn/llisapi.dll?func=cslib.csinfo&objid=35125986&lang=en&siteid=cseus&aktprim=0&objaction=csopen&extranet=standard&viewreg=CN)

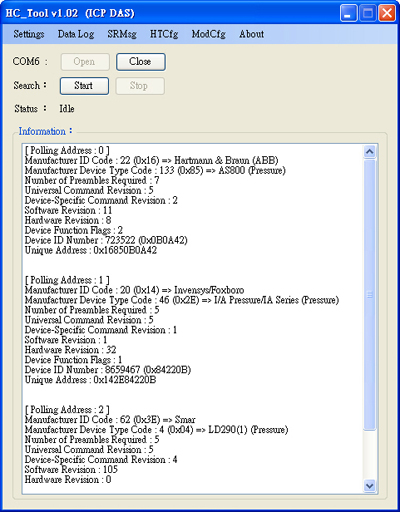

  • Search all HART devices automatically
  • Provide HART Universal & Common-Practice command (v6.0) for HART device configuration
  • Provide module configuration and HART communication easily and quickly
  • Provide data logging for HART communication

¡@








Ethernet Interface
Ethernet Port 10/100 Base-TX with Auto MDI/MDI-X
Virtual COM Yes (VxComm Utility)
Built-In Web Server Yes
HART Interface
Channel 4
Connector 2-pin screwed terminal block for each HART port
Terminator Resistor Selectable 250 £[ terminal resistor for each HART port
4KV ESD Protection Yes, Contact for each terminal
Isolation Voltage 500 VDC
LED
LED Display PWR : Power Indicator
TxRx : Data Received from Ethernet / HART Indicator
Power
Power supply Unregulated +10 ~ +30 VDC
Protection Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption Maximum : 1.5W
Mechanism
Installation DIN-Rail or Wall Mounting
Dimensions 123 mm x 72 mm x 35 mm (H x W x D)
Environment
Operating Temp. -25 ¢J ~ +75 ¢J (-13 to 167 ¢K)
Storage Temp. -30 ¢J ~ +80 ¢J (-22 to 176 ¢K)
Humidity 5% ~ 95% RH, non-condensing







I-7547
Ethernet To HART Converter (Gray Cover) (RoHS)
