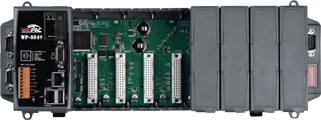

WinPAC-8x49 Series (WP-8149/8449/8849) is the new generation WinCE based InduSoft PAC (Programmable Automation
|
|
| |
Controller) of ICP DAS. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 Operating System, variant connectivity |
|
| |
(10/100 Base-TX dual Ethernet Ports, 2 or 4 RS-232/485 ports, 1 VGA, 1 USB port) and 1/4/8 slots for high performance Parallel-type |
|
| |
I/O modules (High Profile I-8K series) and Serial-type I/O modules (Hot-Swap High Profile I-87K I/O modules). Memories come with |
|
| |
128 MB SRAM, 512 KB dual battery backup SRAM, 96 MB FLASH & 16 GB microSD. For redundant supporting: dual Watchdog |
|
| |
Timers, redundant power inputs, dual battery backup SRAM, dual Ethernet Ports. WinPAC-8x47 Series will upgrade your system! |
|
| |
|
|
| |
 WinPAC-8000 Application Videos |
|
| |
|
|
|
|
|
| |
|
|
| |
 InduSoft Web Studio General Features |

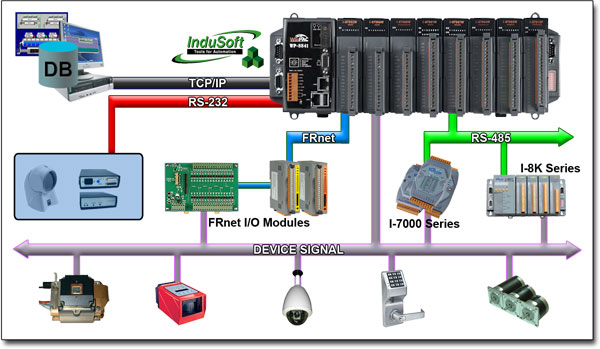

| IWS applications run on microcomputers connected in real-time to machines or processors through WinPAC programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system. |
| |
 |
| |
| |
|
|
| InduSoft Integrated with WinPAC-8000 |
 Easy steps to accomplish your system. |
| Communication drivers are provided by ICP DAS. |
| Monitor and control system from both sites (WinPAC) and control room (PC) |
| |
 |
| |
| |
|
|

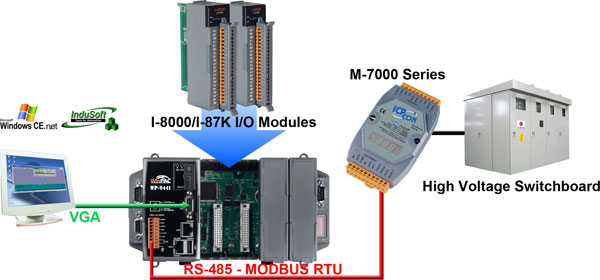

| Communication Protocol |
| DCON Protocol for ICP DAS embedded controllers or I/O modules is provided. |
| Supports more than 200 Communication drivers such as Siemens, Omron and so forth. |
| InduSoft supports Modbus / OPC / DDE / TCP/IP / SNMP Client and Server. |
| |
 |
| |
| |
|
|
| Access Database Easily |
| Supports third-party SQL relational databases such as SQL Server, MS Access, Excel, Oracle ...etc. |
| Database connectivety from any platform supported by IWS or CEView, through the unique Studio Database Gateway. |

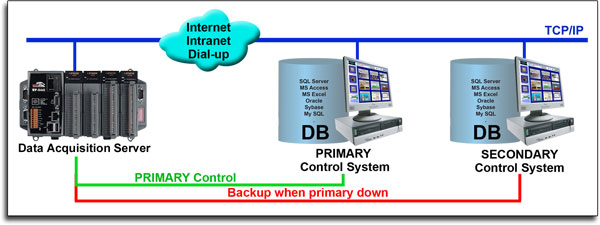

| Supports Secondary Database in the modes "Redundancy" or "Store and Forward" to increase the reliability of the system and avoid loss of data. |
| |
 |
| |
| |
|
|

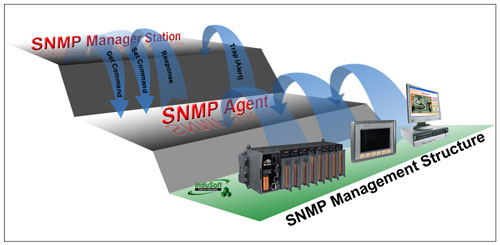

| SNMP Protocol Supported |
| I/O Status of WinPAC can be gathered via Internet by polling or inform actively(trap) mode to remote SNMP manager station. |
| WinPAC controller can be treated as a SNMP gateway to transfer the information including I/O and user-defined data to SNMP manager station. |
| Integrating I/O and Network information in SNMP manager station. |
| |
|
| |
|
|

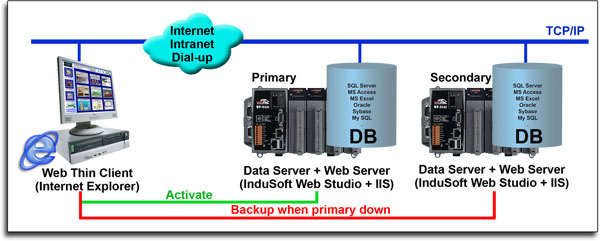

| Web Thin Clients |
| Use a regular WEB Browser (Internet Explorer) to host the application. |
| Requests online and history data from the Server where InduSoft Web Studio is running, becoming a CLIENT for the data. |
| Provide Multi-level security for applications, including the Internet and Intranet. |
| |
 |
| |
| |
|
|
| Useful Package Tool is Provided |
| ICP DAS has released a package tool for InduSoft. The package tool is integrated with several ActiveX objects and communication tools, including "GSM_ActiveX", "SHM_ActiveX", "COM_ActiveX" and "COM Port Communication Tool"...etc. |
| |
| By using ActiveX objects provided by ICP DAS in InduSoft, user can easily develop multi-function application. |
| Reduce the number of used drivers. |

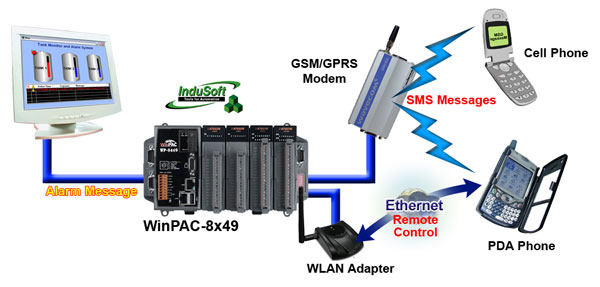

| To integrate with GSM/GPRS external modem easily. |
| |
|
| |

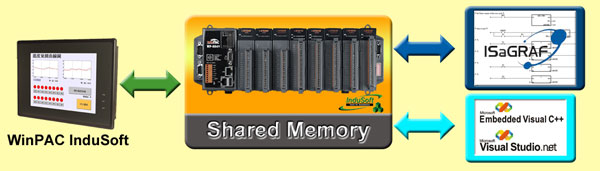

| Provide an easy way to exchange data between InduSoft and other Programs. |
| |
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
| System Software |
|
OS |
Windows CE 5.0 |
.Net Compact Framework |
2.0 |
Embedded Service |
FTP Server, Web Server |
| Development Software |
|
| InduSoft Software |
InduSoft Web Studio v6.1 Service Pack 3 |
| Non-InduSoft |
Options: Microsoft EVC++4.0 or VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008) |
| Web Service |
|
| Web HMI |
Support Web HMI function, PC running Internet Explorer can access to the WP-8x49 via Local Ethernet or Internet or dial Modem, monitoring and control. |
| Security |
Web HMI supports three levels user name and password protection |
| Power Supply |
|
| Input Range |
+10 ~ +30 VDC (unregulated) |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Protection |
WP-8149: 1.0 A, 5 V supply to CPU and backplane; 0.6 A, 5 V supply to I/O expansion slots, total 8 W
WP-8449: 1.1 A, 5 V supply to CPU and backplane; 4.9 A, 5 V supply to I/O expansion slots, total 30 W
WP-8849: 1.2 A, 5 V supply to CPU and backplane; 4.8 A, 5 V supply to I/O expansion slots, total 30 W |
| Consumption |
WP-8149: 7.3 W (0.3 A @ 24 V);
WP-8449: 9.1 W (0.38 A @ 24 V);
WP-8849: 9.6 W (0.4 A @ 24 V); |
| General Environment |
|
| Temperature |
Operating: -25 ¢XC ~ +75 ¢XC ( -13 ¢X F ~ +167 ¢X F) ,
Storage : -30 ¢XC ~ +85 ¢XC ( -40 ¢X F ~ +176 ¢X F) |
| Humidity |
5 % ~ 95 % RH (non-condensed) |
| System |
|
| CPU |
CPU: PXA270, 32-bit and 520 MHz or compatible |
| Dual Watchdog Timer |
Watchdog: Dual Watchdog Timer |
| RTC (Real Time Clock) |
Gives hour, minute, sec, day of week, day of month, month & year, valid up from 1980 ~ 2079 |
| SRAM |
128 MB |
Dual Battery Backup SRAM |
512 KB (for 5 years data retain while power off) |
| FLASH |
96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry) |
Expansion Flash Memory |
microSD socket with 1 GB flash card |
| EEPROM |
16 KB, Data retention: 40 years. 1,000,000 erase/write cycles |
| I/O Slots |
WP-8149: 1 slot (slot0); WP-8449: 4 slots (slot0 ~ slot3); WP-8849: 8 slots (slot0 ~ slot7);
Accept High Profile I-8K Parallel & High Profile I-87K Serial I/O boards
I/O Module Hot Swap Ability: for High Profile I-87K only |
| Rotary Switch |
Yes (0~9) |
| DIP Switch |
WP-8449 & WP-8849: Yes, 8 bits DIP Switch; WP-8149 : no DIP Switch |
| LED, NET ID |
1 programmable LED indicator. NET ID: From 1 ~ 255, set by software |
| Unique Serial Number |
Yes,64-bit hardware unique serial number |
| Serial Ports |
|
| VGA Port |
1 VGA port (800 x 600 resolution) |
| USB Port |
one USB 1.1 Host ports for USB mouse, keyboard or USB drive |
COM0 |
Internal communication with the I-87K High Profile modules in slots |
| COM1 |
RS-232 (RxD, TxD, and GND); Non-isolation; Speed: 115200 bps max. |
| COM2 |
RS-485 (D2+, D2-; self-tuner ASIC inside); 2500 VDC isolation for 1 slot controller and 3000 VDC isolation for 4/8 slots controller; Speed: 115200 bps max. |
| COM3 |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232,
DATA+ and DATA- for RS-485); Non-isolation;
Speed: 115200 bps max. (WP-8149 has no COM3 & COM4.) |
| COM4 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation;
Speed: 115200 bps max. (WP-8149 has no COM3 & COM4.) |
Dual Ethernet Ports |
2 Ethernet Ports: LAN1 & LAN2, 10/100 Base-TX Ethernet Controller
(Auto-negotiating, Auto MDI/MDI-X, LED indicator)
Please use NS-205/NS-208 Industrial Ethernet Switch. |
|
|
| |
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
| WP-8149-EN |
InduSoft based WinPAC-8000 with 1 I/O slot (English version of OS) |
| WP-8449-EN |
InduSoft based WinPAC-8000 with 4 I/O slots (English version of OS) |
| WP-8849-EN |
InduSoft based WinPAC-8000 with 8 I/O slots (English version of OS) |
| WP-8149-TC |
InduSoft based WinPAC-8000 with 1 I/O slot (Traditional Chinese version of OS) |
| WP-8449-TC |
InduSoft based WinPAC-8000 with 4 I/O slots (Traditional Chinese version of OS) |
| WP-8849-TC |
InduSoft based WinPAC-8000 with 8 I/O slots (Traditional Chinese version of OS) |
| WP-8149-SC |
InduSoft based WinPAC-8000 with 1 I/O slot (Simplified Chinese version of OS) |
| WP-8449-SC |
InduSoft based WinPAC-8000 with 4 I/O slots (Simplified Chinese version of OS) |
| WP-8849-SC |
InduSoft based WinPAC-8000 with 8 I/O slots (Simplified Chinese version of OS) |
** The default runtime license (CEView Lite Plus - 300 tags and 1 driver) is installed. ** |
|
|
| |
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
| InduSoft-CE1500R |
Runtime License CEView Standard (1500 Tags and 3 Drivers)for WinPAC-8000 |
|
|
| |
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
| NS-205 CR |
Unmanaged 5-port Industrial Ethernet Switch (RoHS) |
| NS-208 CR |
Unmanaged 8-port Industrial 10/100 Base-T Ethernet Switch (RoHS) |
| RU-87Pn |
Remote Intelligent I/O Expansion Unit ( It used to expand I-87K series I/O modules over the RS-485 ) |
| ADP-1080T-R |
8" Color Industrial Display Monitor with Sealed Touch Screen, RS-232 Interface. |
| Touch 500 |
Touch LCD Monitor (RS-232/RS-485) |
| DP-660 |
24 V/2.5 A , 5 V/0.5 A Dual Output Power Supply |
| DP-665 |
24 V/2.5 A , 5 V/0.5 A Dual Output Power Supply |
| DP-1200 CR |
24 V/5 A Power Supply (RoHS) |
Note1:
The I-7000 & I-87K series provides cost-effective protection and signals conversion for a wide range of valuable industrial control signals and control systems. Our product line includes RS-232 to RS-485 Converter, Digital I/O, Timer/Counter, Data Display, and application programs. I-7000 modules are good for a small amount of I/O channels, while I-87K I/O expansion units are good for medium amount of channels. |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
|
|
|
