X509 |
|
|
|
|
X509
(For I-7188XB/XG/EX/EG, £gPAC-7186EX/EG/FD/SM) |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
|
|
|
|
 |
|
|
|
| |
Power consumption : 0.7 W |
|
| |

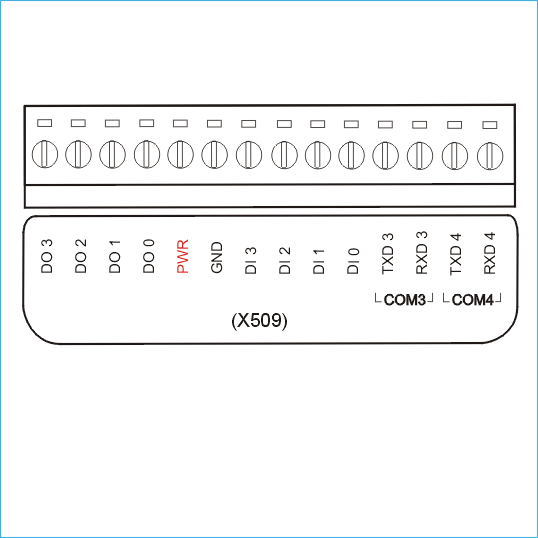

Parallel I/O
- RS-232 port : 2
- COM3 : TXD, RXD, GND
- COM4 : TXD, RXD, GND
- 16550 compatible
- Internal FIFO : 16 bytes
- Transmission speed: 115.2K BPS max.
- Isolated : none
|
|
| |
|
|
|
|
|
| |
|
|
| |
Digital Input
- Channels : 4
- Input Voltage:
Logic high level (3.5V~30V),
Logic low level (0V~1V)
- Isolated : none
|
|
| |
|
|
|
|
|
| |
|
|
| |
Digital Output
- Channels: 4
- Open-collector Output : 100 mA / 30V max
- Isolated : none
|
|
| |
|
|
|
|
|
| |
|
|
| |
Ordering Information
| X509 |
2-Port RS-232 ( 3-Pin ) add 4-channel D/I, 4-channel D/O |
| X509 CR |
2-Port RS-232 ( 3-Pin ) add 4-channel D/I, 4-channel D/O (RoHS) |
|
|
| |
|
|
| |
|
|
|
