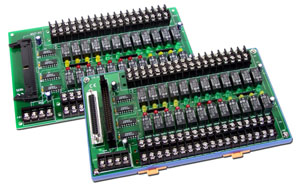

DB-24R / DB-24RD
24-channel Relay Output Board |
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
| The DB-24R consists of 24 form C, electromechanical relays for efficient switching of load by programmed control . The contact of each relay can control a 0.5 A /110 V load or 1A / 24VDC . The relay is energized by applying a 5 voltage signal to the appropriate relay channel on the 50-pin Opto-22 compatible connector or D-Sub 37 connector . Twenty-four enunciator LEDs, one for each relay, light when their associated relay is activated . To avoid overloading your PC¡¦s power supply, this board needs a +12VDC or +24VDC external power supply. |
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- 24 Form C Relays (SPDT)
- SPST: Single Pole Double Throe
- OPTO-22 Compatible Connector
- Connects directly to DIO-24,DIO-48,DIO-144 OPTO-22
compatible board or any 722,724 series board
- Switch up to 0.5A at 120 VAC
- Switch up to 1A at 24VDC
- On board relay driver circuits
- LED¡¦s indicated relay status
- Screw terminals for easy field wiring
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- FORM C RELAY
- Type : 1 form C
- Nominal load : 0.5 A /120 VAC , 1A /24 VDC
- Max. Switching power : 60VA,24W
- Max. Switching Voltage : 120VAC,60VDC
- Max. Switching Current : 1A
- Life Expectancy : Mechanical ( 2 x 107 ); Electrical ( 2 x 10
5)
- Release Time Value : Operate ( 6 ms )
- Control Logic : Input TTL high (+5V) , relay on
- Power Consumption : +12V @0.3A max ,+5V @0.18A max
- Dimension : 220mm X 132mm
- Operating Temperature : 0 -60°C
- Storage Temperature : -20~70°C
- Humidity : 5% to 90 % noncondensing
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- On/off control
- Energy management
- Test Automation
- Process Control
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| DB-24R/12V |
24-channel OPTO-22 compatible relay Output Board (12V)
Include : CA-5015 (50-pin Flat Cable 1.5m) |
| DB-24R/24V |
24-channel OPTO-22 compatible relay Output Board (24V)
Include : CA-5015 (50-pin Flat Cable 1.5m) |
| DB-24R/24V CR |
24-channel relay Output Board (12V,RoHS)
Include : CA-5015 (50-pin Flat Cable 1.5m) |
| DB-24RD/12V |
4-channel DIN-Rail Mounting Power Relay Module, 1 form C |
| DB-24RD/12V CR |
24-channel relay Output Board (12V) (RoHS)
Include : CA-3710 (37-pin D-sub Cable 1m) |
| DB-24RD/24V |
24-channel relay Output Board (24V)
Include : CA-3710 (37-pin D-sub Cable 1m) |
| DB-24RD/24V CR |
24-channel relay Output Board (24V) (RoHS)
Include : CA-3710 (37-pin D-sub Cable 1m) |
| DB-24R/12V/DIN |
DB-24R/12 with DIN-Rail Mounting |
| DB-24R/24V/DIN |
DB-24R/24 with DIN-Rail Mounting |
| DB-24R/24V/DIN CR |
DB-24R/24 with DIN-Rail Mounting (RoHS) |
| DB-24RD/12V/DIN |
DB-24RD/12 with DIN-Rail Mounting |
| DB-24RD/12V/DIN CR |
DB-24RD/12 with DIN-Rail Mounting (RoHS) |
| DB-24RD/24V/DIN |
DB-24RD/24 with DIN-Rail Mounting |
| DB-24RD/24V/DIN CR |
DB-24RD/24 with DIN-Rail Mounting (RoHS) |
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| CA-3720 |
37-pin D-sub connector cable 2.0m |
|
|
| |
|
|
| |
.jpg) |
.jpg) |
| Non-"D" with CA-5015 |
"D" with CA-3710 |
|
|
| |
|
|
|
| |
|
|
| |
|
|
