DB-24POR
24-channel Photo Mos Output Board |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
| The DB-24POR has 24 channels of optically isolated Photo-Mos Relay , and OPTO-22 compatible connector |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- 24 Photo Mos Relay
- One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
- Connects directly to OPTO-22 compatible board or any 722,724 series board
- LED’s indicated relay status
- Screw terminals for easy field wiring
- 5,000Vdc optical isolation
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- PhotoMos Relay
- Turn-on time :0.7ms (typical)
- Turn-off time: 0.05ms (typical)
- Output On resistance : 23 ohm (typical)
- Load voltage : 350V (peak AC)
- Power dissipation : 500mW
- Countinuous load current : 0.13A
- Power Consumption : +5V @0.3A max
- Dimension : 213mm x 132mm
- Operating Temperature : 0 -60°C
- Storage Temperature : -20~70°C
- Humidity : 5% to 90 % noncondensing
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- On/off control
- Energy management
- Test Automation
- Process Control
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| DB-24POR |
24-channel OPTO-22 compatible Photo-Mos Relay Output Board
Include : CA-5015 (50-pin Flat Cable 1.5m) |
| DB-24POR/D |
24-channel Photo-Mos Relay output Board
Include : CA-3710 (37-pin D-sub Cable 1m) |

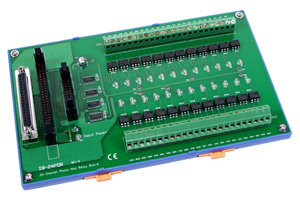

| DB-24POR/DIN |
DB-24POR with DIN-Rail Mounting |
| DB-24POR/D/DIN |
DB-24POR/D with DIN-Rail Mounting |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
.jpg) |
.jpg) |
| Non-"D" with CA-5015 |
"D" with CA-3710 |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
