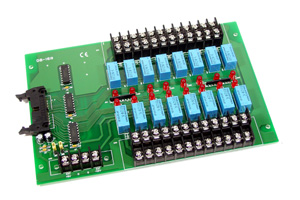

DB-16R
16-channel Relay Output Board

Model: DB-16R









The DB-16R 16 channel Relay Output Board consists of 16 form c relays for efficient switch of load by programmed control. It is connector and functionally compatible with 785 series board but with industrial type terminal block. The DB-16R can be used by A-82x board or any other compatible board The relay are energized by apply 5 volt signal to the appropriate relay channel on the 20-pin flat cable connector . Sixteen enunciator LEDs ,one for each relay , light when their associated relay is activated . To avoid overloading your PC¡¦s power supply ,this board provides a screw terminal for power supply .







  • Form C relays
  • Accept 20-pin connector to control 16 form c relays for use with A-82X , DIO-64 digital output port or any compatible digital output port
  • Each LED light when corresponding relay is activated
  • Screw terminals for field wiring







  • FORM C RELAY
  • Type : SPDT( form C )
  • Maximum input voltage: 24 VDC or 24 VAC
  • Nominal load : 0.5 A /120 VAC , 1A /24 Vdc
  • Max. Switching power : 60VA,24W
  • Max. Switching Voltage : 120VAC,60Vdc
  • Max. Switching Current : 1A
  • Life Expectancy : Mechanical ( 2 x 10 ) , Electrical ( 2 x 10 )
  • Release Time Value : Operate ( 6 ms )
  • Control Logic : Input TTL high (+5V) , relay on
  • Power Consumption :+12V @528mA max.
                                            +5V @150mA max.
  • Dimension : 205mm X 114mm
  • Operating Temperature : 0 -60¢XC
  • Storage Temperature : -20~70¢XC
  • Humidity : 5% to 90 % noncondensing







  • On/off control
  • Energy management
  • Test Automation
  • Process Control







DB-16R 16-channel Relay Board; Include : CA-2010 (20-pin Flat Cable 1m)
DB-16R CR 16-channel Relay Board; Include : CA-2010 (20-pin Flat Cable 1m) (RoHS)







CA-2020 20-pin Flat Cable 2m
