The switches time recording

Data record up to 1,600 records

Inductive action delay time

Relay delay time adjusted by software (0.5~20 sec)

Interface and protocol

RS-485 / Modbus RTU

Double-color status indicators

Blue / Red

Features ACS-20B(W)-MRTU


  • Special infrared code to against interference
  • Multiple operating modes: Sensing, Standby, Lock, Toggle Switch
  • Provides 8 lockup periods each day
  • With relay (N.C. and N.O. output)
  • Double-color status indicators
  • Induction distance: 1~12 cm
  • Inductive action delay time: 0.5 ~ 20 sec
  • The switches time recording: 1,600 records
  • Interface and protocol: RS-485 / Modbus RTU

User Behavior Analysis

ICP DAS No-touch infrared switch! The DAQ executor!

User data acquisition

Amount Counting Data

Big Data
Analytics

Baseline and Peak Analysis

User Behavior Analytics

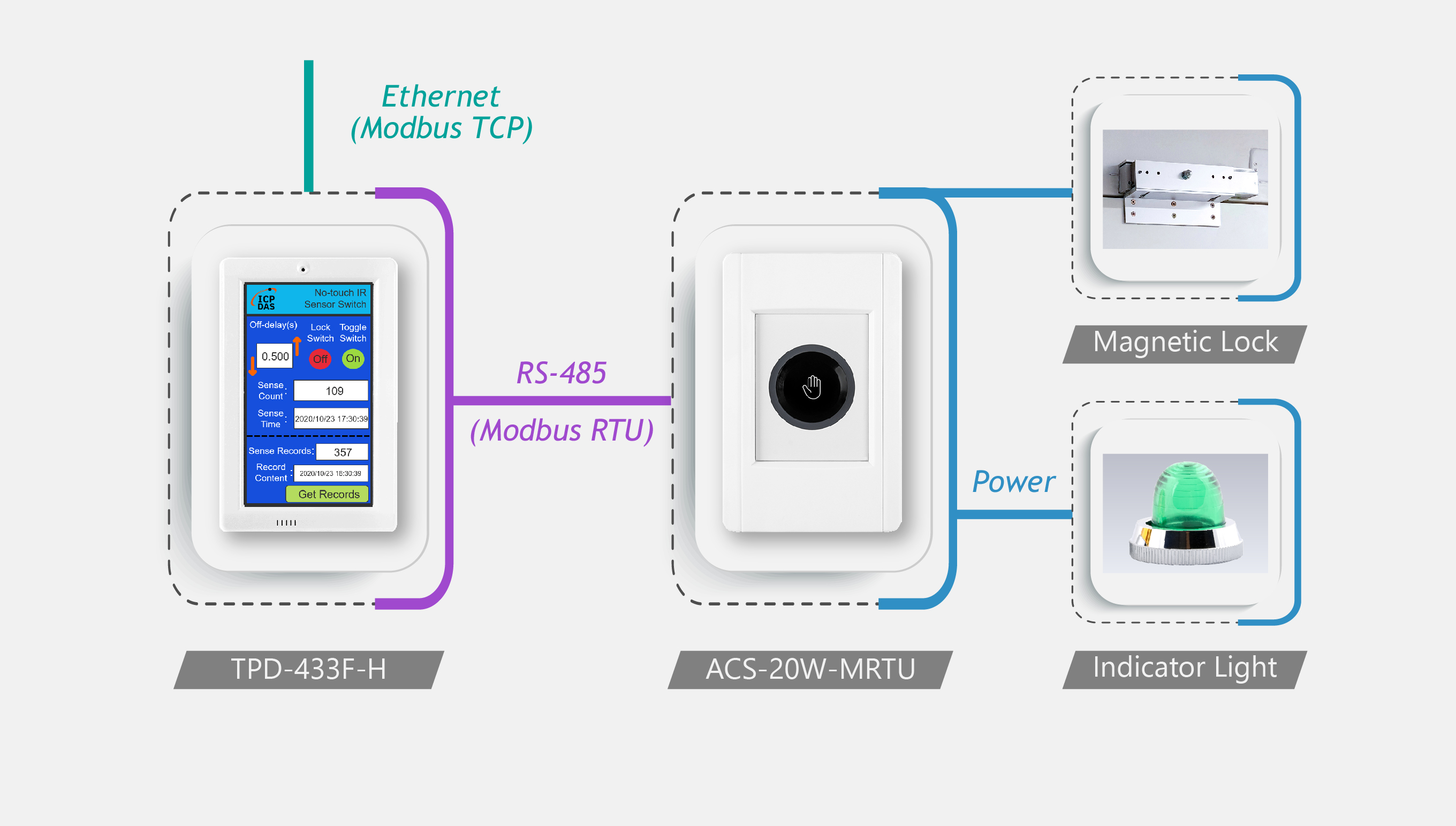

Deployment of Demo Kits


Demonstrate the scenario of employees go inside and outside.

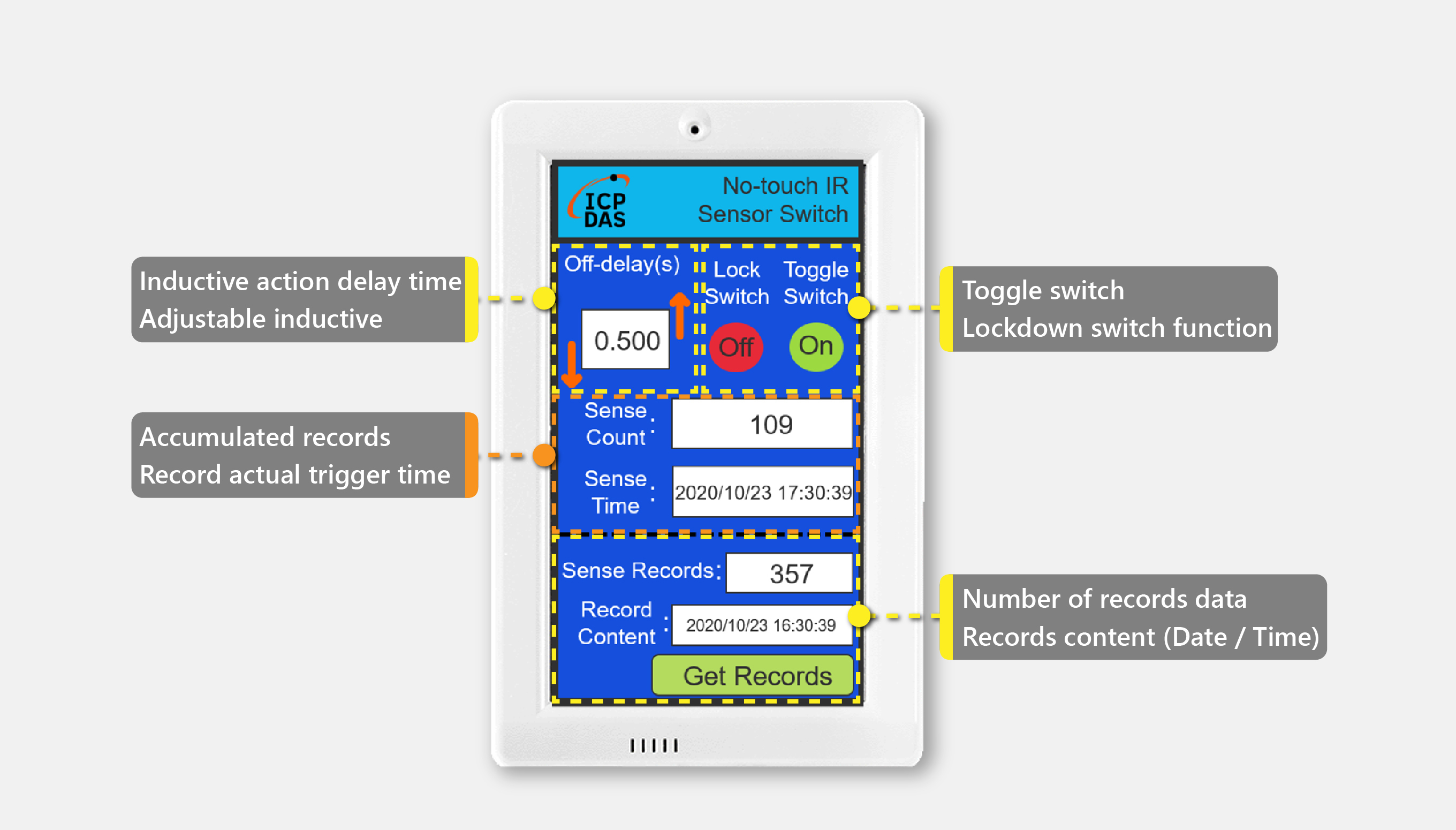

Demonstrate the Modbus RTU communication and Software config function via TPD-433F-H.

Built-in real-time clock, the time will be recorded when the switch has been triggered.

The adjustable off-delay time function.

Lockdown switch function.

Toggle switch function.

Sensing Mode / Off-delay Function / Toggle Mode / Lock Mode Test


Related Accessories
