	Soft-GRAF Studio

	Create a colorful HMI in the ISaGRAF PAC

ISaGRAF Supports IEC 61131-3 Standard PLC Open Languages

Uploading the Program in the Controller

Off-line Simulation

Lock & Unlock I/O

Backup and Restoration of Applications

Graphic Debugging Animation

(More about ISaGRAF...)

Soft-GRAF Studio:

Simplify HMI Screen Editing

HMI without Writing Programming Language

Support Various and Colorful HMI Objects:

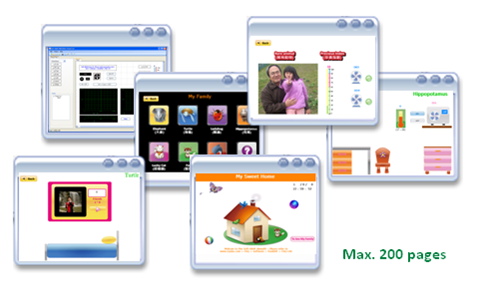

Page :

Pages (Max. 200, Support Password Security)

Label :

Normal	Reverse Type
Under-line

Boolean Value :

Normal	Reverse Type
Blinking

Numeric Value :

Normal	Scaling

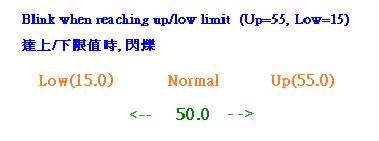

Change color when reaching up/low limit	Blink when reaching up/low limit
Display text when reaching up/low limit

Message Value :

Multiple Text :

Alarm Lists :

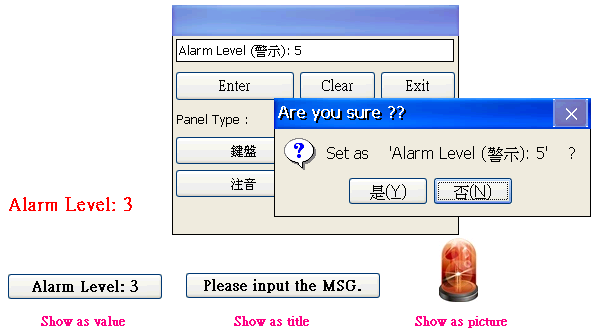

Button :

Normal	Ask before operation

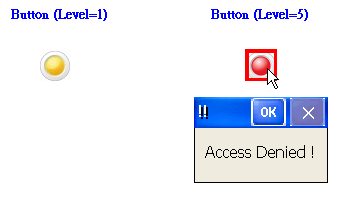

Show as value	Security control
Show as picture	Password control
Show as Title

Message Button :

To Page :

Login/Logout :

Data Logger :

Boolean LED:

LED

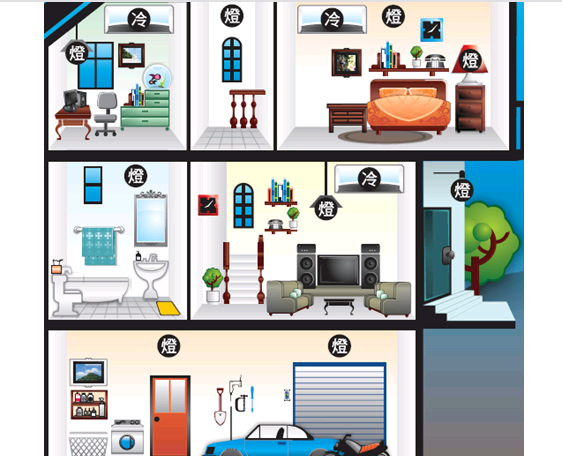

Boolean Picture:

Static picture	Boolean picture
Dynamic picture

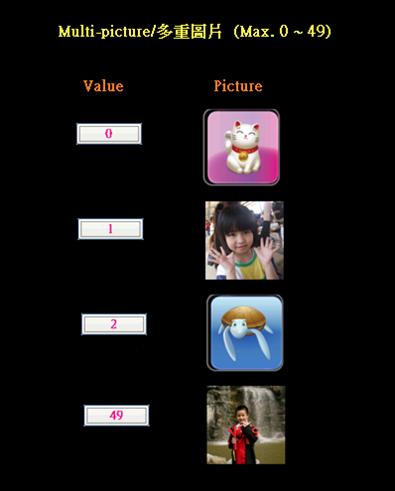

Multiple Picture :

Multi-picture

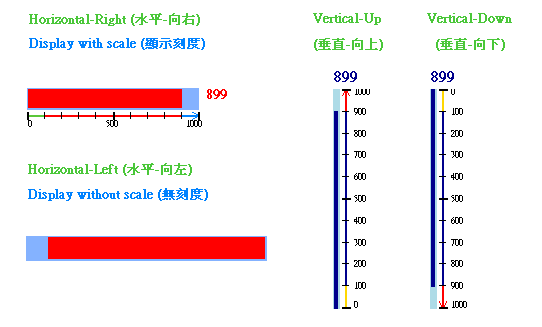

Bar Meter :

Vertical	Horizontal
Display with scale	Display without scale

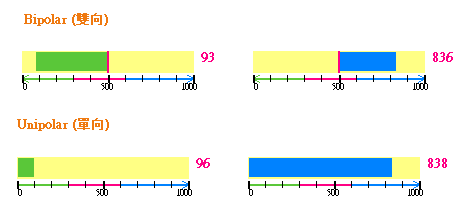

Unipolar	Bipolar

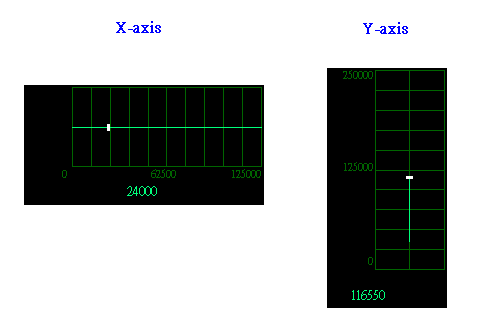

Trace :

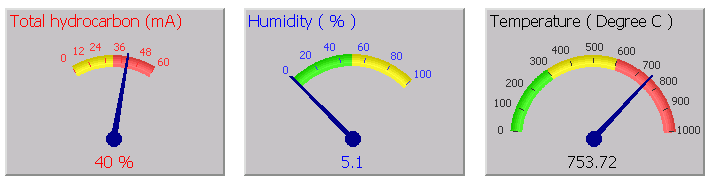

Gauge Meter :

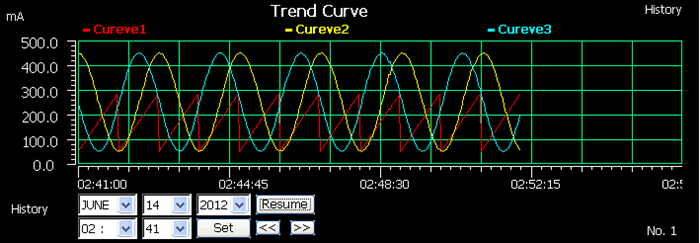

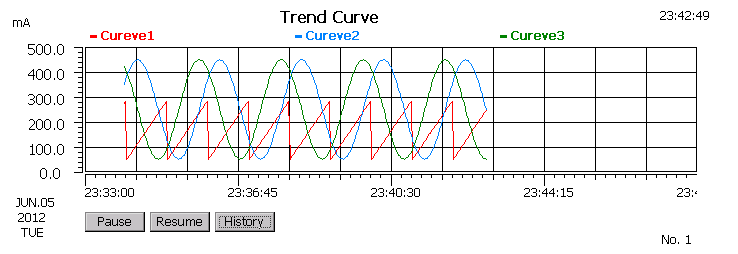

Trend :

Built-in Various Objects (Will be More) :

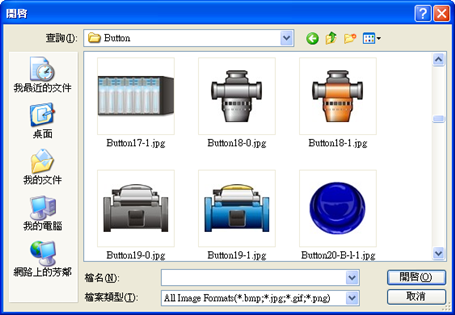

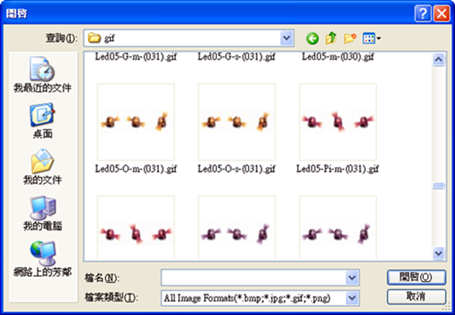

Button	Gif

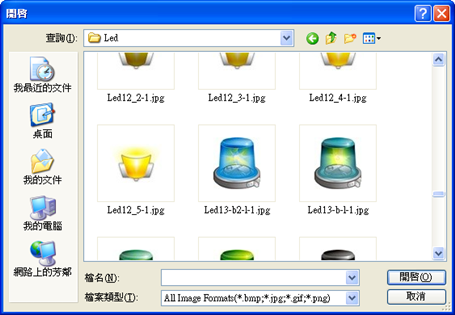

Led	More_Pic

Multi-language:

English, Traditional Chinese, Simplify Chinese, Russian, etc.

HMI Behave Smoothly
