Display an image button
The Soft-GRAF HMI supports showing the button with a static picture. Users can apply it in the "g_B_Inp" (Boolean input), "g_WD_Inp, g_N_Inp" (integer input), "g_F_Inp" (real input), "g_M_Inp" (message input) and "g_ToPage" (switch page) buttons.

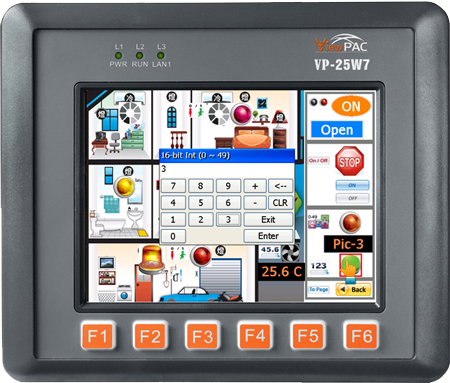

Multi-Picture
Users can use the "g_N_Pic" object to show different pictures by the changes of integer value. It allows showing up to 50 different pictures when the integer value is between 0 and 49. And these pictures can be static pictures or animate pictures that conform to the Soft-GRAF format.

Static Picture

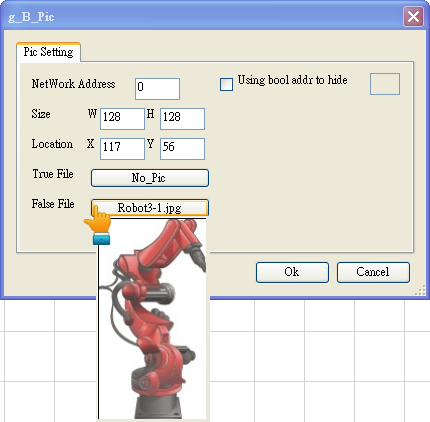

The Soft-GRAF HMI supports the picture with JPG, PNG, BMP (Recommend not to use the BMP format because it consumes larger memory size) and GIF format. Designers can put them into any of the Soft-GRAF HMI page. For general usage, you can choose the "g_B_Pic" object that can show two pictures. One is for boolean status as “True” and the other is for boolean status as “False”. It will just show one picture (it must be “False” status) when you set the "Network address" of the "g_B_Pic" as 0.
