  Soft-GRAF Studio
  Create a colorful HMI in the ISaGRAF PAC

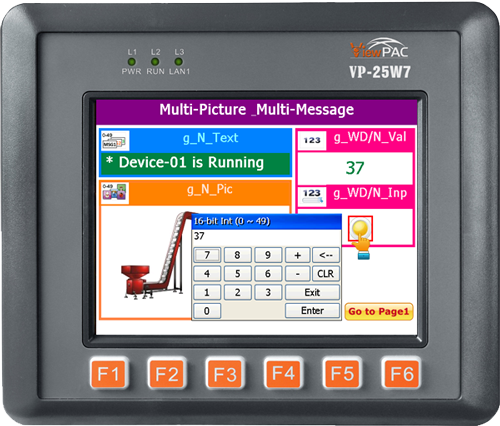

Applications > Multi-Picture and Multi-Message



In some applications, it requires to use a value of an integer variable to display various status. Then users can choose the "g_N_Text" (Multi-text) or "g_N_Pic" (Multi-value) object. The "g_N_Text" can show up to 50 different texts depends on an integer value (0 ~ 49). You can set up it as different text color or background color or to blink, so that to achieve the various effects. The "g_N_Pic" can show up to 50 different pictures depends on an integer value (0 ~ 49) and these pictures can be a static picture or animate pictures that conform to the Soft-GRAF format.
