LC-101
> LC-101 Hardware

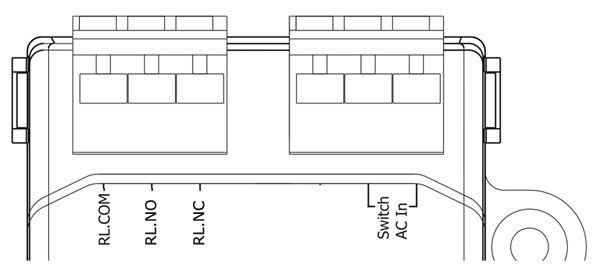

PIN Assignment
Pin
Descriptions
1
+VS
Power Input Voltage (+10 V
DC
~ 30 V
DC
)
2
+VS
Power Input Voltage (+10 V
DC
~ 30 V
DC
)
3
DATA+
RS-485 Serial Communication Interface
4
DATA-
5
GND
Ground
6
GND
Ground
TOP
|
HOME

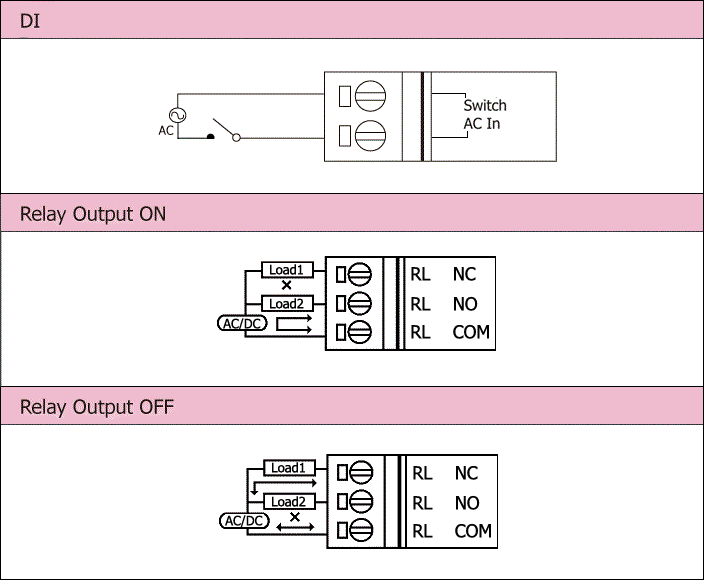

Wire Connection
DIO Wire Connections
