The I-8014W/I-8014CW is a high performance Analog Input module. The I-8014W provides up to 16 single-ended or 8 differential input channels, while the I-8014CW provides up to 8 differential input channels. Both modules feature 16-bit resolution, 250kS/s sampling rate, and a 4 k sample FIFO buffer, as well as providing 2500 Vrms isolation protection.

The I-8014W/I-8014CW module contains an impressive scan function called Magic Scan, which is able to improve many of the functions and meet the demands of high-end users. Magic Scan function can scan the individual input channels at different input range and when performing a multi-channel scan, the sampling rate can be maintained at 250kS/s.

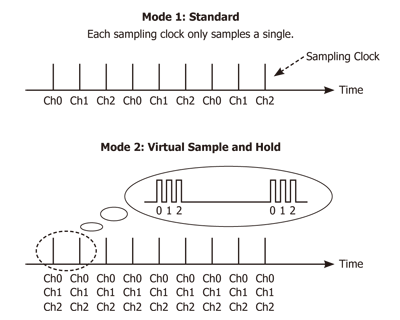

The Magic Scan function on the I-8014W/I-8014CW module can be operated in two ways. The first is a standard scan and the other is a Virtual Sample and Hold function. The cost of almost all AI Cards is high if it includes a Sample and Hold function, but ICP DAS can now offer a low-cost alternative.

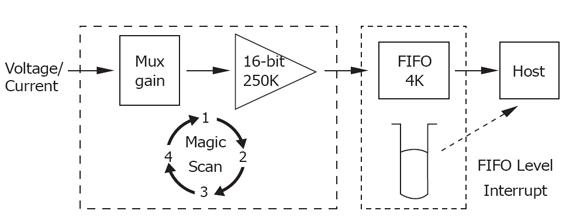

The I-8014W/I-8014CW module includes a 4 k sample onboard FIFO buffer for A/D conversion.The new FIFO technology uses a trigger interrupt signal, meaning that if the sampled count is higher than the pre-defined FIFO level, an interrupt signal will notify the host.

With the Magic Scan function and 4 k FIFO buffer, the I-8014W/I-8014CW can easily implement high-accuracy, high-speed and time-critical data acquisition applications.
