| DN-RTD-08 Terminal Board |
Type |
Description |
Apply To |
DN-RTD-08 |
RTD, Single/Duplex, 8-ch |
F-8015 |
|
|
| |

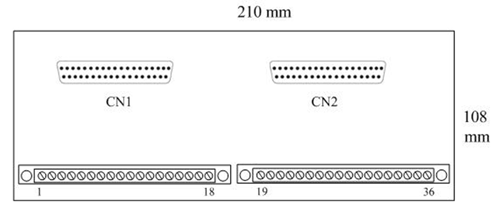

| Appearance |
 |
| |
| Pin Assignment |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
SG |
A0 |
B0 |
b0 |
SG |
A1 |
B1 |
b1 |
SG |
A2 |
B2 |
b2 |
SG |
A3 |
B3 |
b3 |
SG |
FG |
|
| |
19 |
20 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |
28 |
29 |
30 |
31 |
32 |
33 |
34 |
35 |
36 |
SG |
A4 |
B4 |
b4 |
SG |
A5 |
B5 |
b5 |
SG |
A6 |
B6 |
b6 |
SG |
A7 |
B7 |
b7 |
SG |
FG |
|
| |
| Specification |
| I/O range |
| Channel |
8 |
| RTD Input |
Pt 100, Pt 1000, JPt 100 |
| Dimension |
| W x L x H (mm) |
118 mm x 220 mm x 60 mm |
| Mounting |
| Din Rail |
35 mm |
| Environment |
| Ambient Temperature |
-25 ~ 75 °C |
| Humidity |
5 ~ 95%, Non-condensing |
|
| |

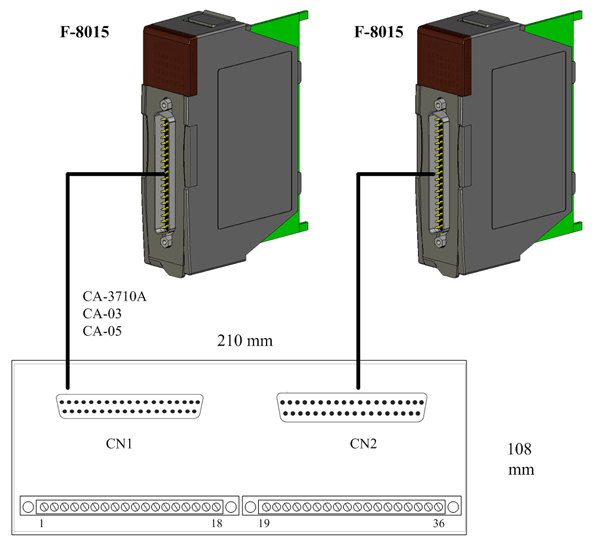

| IOM Redundancy Connection |
 |
| |

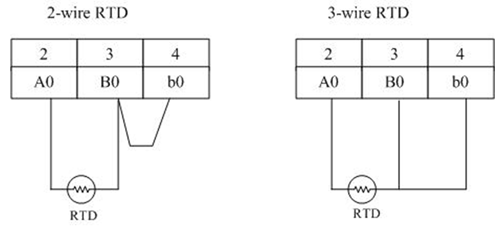

| I/O Wire Connection |
 |
| |
|
