| DN-AIV-08/DN-AIV-08F Terminal Board |
Type |
Description |
Apply To |
DN-AIV-08 |
AIV, Single/Duplex, 8-ch |
F-8017V |
DN-AIV-08F |
AIV, Single/Duplex, 8-ch, surge protection |
F-8017V |
|
|
| |
| DN-AIV-08 Appearance |
 |

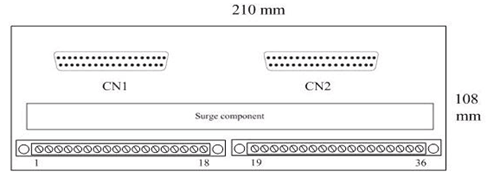

| DN-AIV-08F Appearance |
 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
S.G |
0+ |
0- |
1+ |
1- |
2+ |
2- |
3+ |
3- |
4+ |
4- |
5+ |
5- |
6+ |
6- |
7+ |
7- |
F.G |
|
| |
| Specification |
| Models |
DN-AIV-08 |
DN-AIV-08F |
| I/O range |
| Channel |
8 |
| Analog Input |
0 ~ 6 V (2 wire) |
| Dimension |
| W x L x H (mm) |
118 mm x 220 mm x 60 mm |
| Fuse Ratings |
| Individual channel |
- |
50 mA |
| Module |
- |
1.0 A |
| Transient voltage Suppressor |
| Peak pulse power Dissipation |
|
3000 W |
| Peak forward Surge Current |
- |
250 A |
| Mounting |
| Din Rail |
35 mm |
| Environment |
| Ambient Temperature |
-25 ~ 75 °C |
| Humidity |
5 ~ 95 % RH, Non-condensing |
|
| |

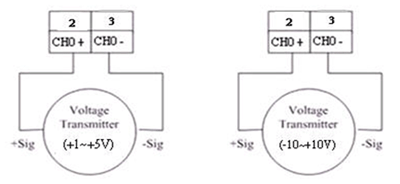

| I/O Wire Connection |
 |
| |
|
|
| |
|
|
