PM-3133-RCT
Three-phase Smart Power Meter |
|
| |
| |
 |
Model: PM-3133-RCT |
|
|
 |
- True RMS Power Measurements
- Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
- Current Measurements Up to 1000 A
- Voltage Measurements Up to 500 V
- Rogowski Coil Soft CT for Easy Installation
- W Accuracy Better than 2% (PF=1; Input Current >50A)
- Supports RS-485, Ethernet (PoE) or CANopen Interface
- Supports Modbus RTU, Modbus TCP or CANopen Protocol
- Supports 2 Power Relay Output (Form A)
- Total Harmonic Distortion (THD)
- Multiple Data Format
|
|
|
| |
 |

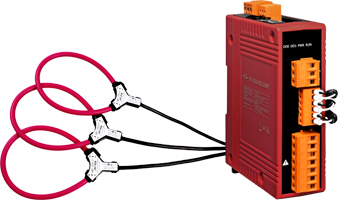

ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3133-RCT that gives you access to real-time electric usage for three-phase power measurement. With its high accuracy (<2%, PF=1; Input Current >50 A), this series can be used to both low voltage primary side and medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under
operation. These compact size and cost-effective power meters monitoring equipment with Rogowski Coil CT is "rope-style" Current Transformer which delivers
"Easy Installation" features for large window size (55 ~ 105 mm) and mechanical flexibility for tight space.
It operates over a wide range of input voltages 10 ~ 500 VAC which allows universal compatibility. Also, with 2 channels relay outputs, it can be linked with
sirens or lightings for alarm messages. It also supports Modbus RTU, Modbus TCP or CANopen protocols for easy integration. |
| |
 |
| Model |
PM-3133-RCT |
PM-3133-RCT-MTCP |
PM-3133-RCT-CPS |
| AC Power Measurement |
| Wiring |
3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Measurement Voltage |
10 ~ 500 V |
| Measurement Current |
CTØ55 mm (500 A), CTØ80 mm (1000 A) |
| Measurement Frequency |
50/60 Hz |
| W Accuracy |
Better than 2% (PF=1; Input Current >50 A) |
| Power Parameter Measurement |
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency, THD |
| Data Update Rate |
1 Second |
| Communication |
| Interface |
RS-485 |
Ethernet (PoE) |
CANopen |
| Protocol |
Modbus-RTU |
Modbus TCP |
CANopen |
| Baud rate |
9600,19200 (default), 38400, 115200; DIP Switch Selectable |
- |
125 k (default), 250 k, 500 k, 1 M;
DIP Switch Selectable |
| Data format |
N,8,1 (default);
N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 |
- |
- |
| Isolation |
3000 VDC |
- |
3000 VDC |
| Alarm Output |
| Power Relay |
Form A (Normal Open) × 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63Hz), 5 A @ 30 VDC |
| Power |
| Input Range |
+12 ~ 48 VDC |
+12 ~ 48 VDC or PoE |
+12 ~ 48 VDC |
| Power Consumption |
2 W |
| Environment |
| Temperature |
Operating Temperature: -20 ~ +70°C / Storage Temperature: -25 ~ +80°C |
| Ambient Relative Humidity |
10% ~ 90% RH, Non-condensing |
|
| |
 |
| RS-485 Interface (Modbus RTU) |
| PM-3133-RCT500P CR ~ NEW ~ |
Modbus RTU, 3-phase power meter, 500A Rogowski Coil CT (Inside diameter 55 mm; wire lead 4 m) x 3 ( RoHS) |
| PM-3133-RCT1000P CR ~ NEW ~ |
Modbus RTU, 3-phase power meter, 1000A Rogowski Coil CT (Inside diameter 80 mm; wire lead 4 m) x 3 (RoHS) |
| Ethernet Interface (Modbus TCP) |
| PM-3133-RCT500P-MTCP CR ~ NEW ~ |
Modbus TCP, 3-phase power meter, 500A Rogowski Coil CT (Inside diameter 55 mm; wire lead 4 m) x 3 (RoHS) |
| PM-3133-RCT1000P-MTCP CR ~ NEW ~ |
Modbus TCP, 3-phase power meter, 1000A Rogowski Coil CT (Inside diameter 80 mm; wire lead 4 m) x 3 (RoHS) |
| CAN bus Interface (CANopen) |
| PM-3133-RCT500P-CPS CR ~ NEW ~ |
CANopen, 3-phase power meter, 500A Rogowski Coil CT (Inside diameter 55 mm; wire lead 4 m) x 3 (RoHS) |
| PM-3133-RCT1000P-CPS CR ~ Available soon ~ |
CANopen, 3-phase power meter, 1000A Rogowski Coil CT (Inside diameter 80 mm; wire lead 4 m) x 3 (RoHS) |
|
| |
|
|
| |
|
|
