| Model |
Description |
Employment |
Connector |
Radiation |
Band |
Gain(dBi) |
Note |
| |
ANT-8 |
9 dBi 2.4GHz External Antenna |
SST-2450, ZigBee products |
RP SMA Male (Plug) |
Omni-Directional |
2.4 ~ 2.5GHz |
8 |
Dipole |
| |
ANT-15 |
15 dBi 2.4GHz External Antenna |
RP SMA Male (Plug) |
Omni-Directional |
2.4 ~ 2.5GHz |
15 |
Dipole |
 |
ANT-15YG |
15 dBi 2.4GHz External Antenna |
RP SMA Male (Plug)
|
Directional
|
2.4 ~ 2.5GHz
|
15
|
Yagi
|
| |
ANT-15YG-1 |
15 dBi 2.4GHz External Antenna |
RP SMA Male (Plug) |
Directional |
2.4 ~ 2.5GHz |
15 |
Yagi |
| |
ANT-18 |
18 dBi 2.4GHz External Antenna |
RP SMA Male (Plug) |
Directional |
2.4 ~ 2.5GHz |
18 |
Panel |
| |
ANT-21 |
21 dBi 2.4GHz External Antenna |
RP SMA Male (Plug) |
Directional |
2.4 ~ 2.5GHz |
21 |
Grid |
| |

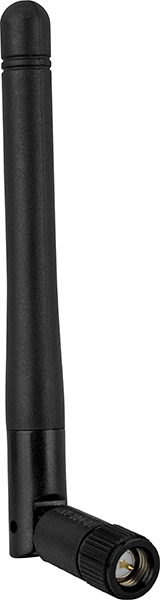

ANT-104-01 |
0 dBi 400MHz External Antenna |
RFU-400 products |
SMA Male (Plug) |
Omni-Directional |
420 ~ 440MHz |
0 |
Dipole |
| |
ANT-104-02 |
0 dBi 400MHz External Antenna |
RFU-433 products |
RP SMA Male (Plug) |
Omni-Directional |
420 ~ 440MHz |
0 |
Dipole |
| |

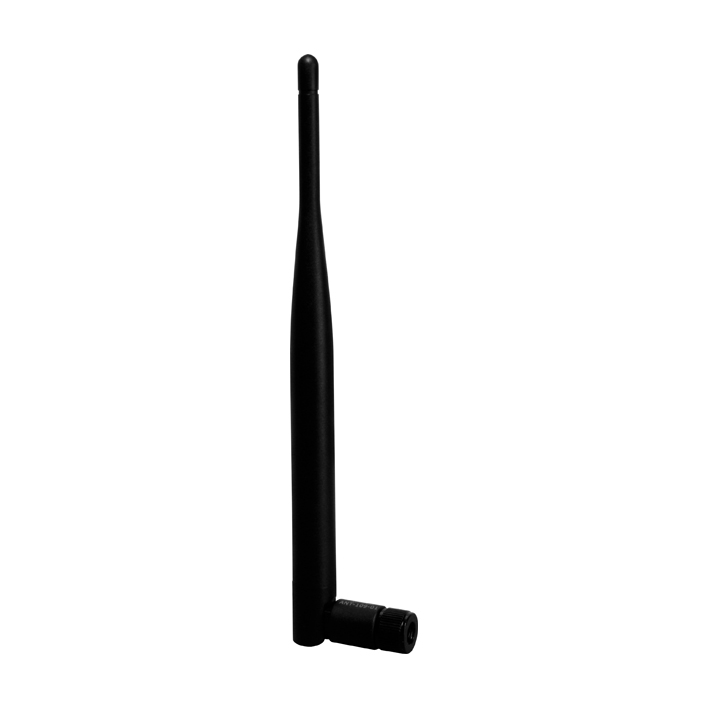

ANT-109-01 |
2 dBi 900MHz External Antenna |
RFU-900 products |
RP SMA Male (Plug) |
Omni-Directional |
824 ~ 960 MHz |
2.0 ± 0.7dBi @ 900 MHz |
Dipole |
| |
ANT-124-03 |
3 dBi 2.4GHz External Antenna |
2.4 GHz Products |
RP SMA Male (Plug) |
Omni-Directional |
2.4 ~ 2.5GHz |
3 |
Dipole |
| |
ANT-124-05 |
5 dBi 2.4GHz External Antenna |
RP SMA Male (Plug) |
Omni-Directional |
2.4 ~ 2.5GHz |
5 |
Dipole |
 |
ANT-Base-02 |
Antenna Base/1500 mm |
RP SMA Male (Plug) |
- |
2.4GHz Band |
- |
Magnetic mount base |
|
ANT-421-01 |
GSM/GPRS External Antenna |
G4500 Series,
GTM-201,
GT-500,
I-8212W,
I-8213W
products |
SMA Male (Plug) |
Omni-Directional |
824 ~ 960MHz
1710 ~ 2170MHz |
1.0 ± 0.7@830 MHz
0.5 ± 0.7@1730 MHz |
with Magnetic Disk Base |
| |

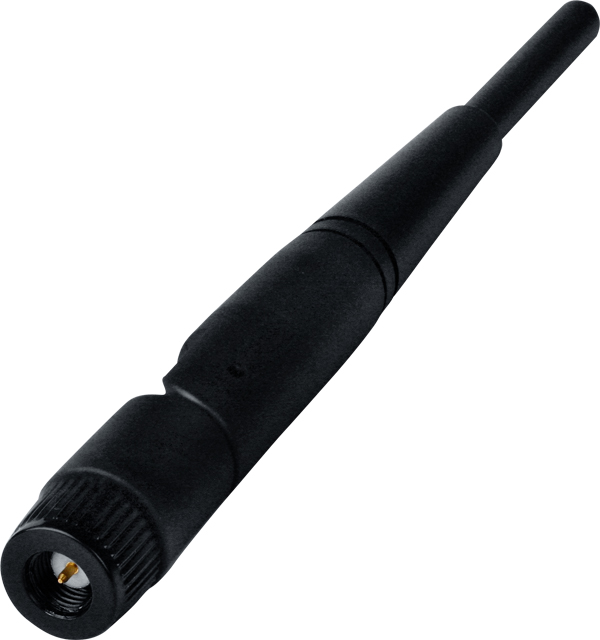

ANT-421-02 |
GSM/GPRS External Antenna |
SMA Male (Plug) |
Omni-Directional |
824 ~ 960MHz
1710 ~ 2170MHz |
-0.9 ± 0.7@890 MHz
+1.7 ± 0.7@1930 MHz |
Dipole |
 |
ANT-421-05 |
5 dBi 4G External Antenna |
4G Products |
SMA Male (Plug) |
Omni-Directional |
698~960MHz
1710~2110MHz
2310~2690MHz |
1.5 dBi @ 698~960 MHz
4.0 dBi @ 1710~2110 MHz
5.0 dBi @ 2110~2500 MHz
3.5 dBi @ 2500~2690 MHz |
Dipole |
|
ANT-Base-01 |
Antenna Base/1500 mm |
3G/4G Products |
SMA Male (Plug) |
- |
3G/4G Band |
- |
Magnetic mount base |
| |
ANT-115-03 |
GPS Active External Antenna |
GPS products |
SMA Male (Plug) |
Directional |
1575.42±1.023MHz |
2 ~ 3 |
Magnetic mount base |
|
ANF-2401/S
ANF-2401-EU/S |
1W 2.4GHz Power Amplifier |
SST-2450, ZigBee products |
N Type Male (Plug)
|
|
2.4 ~ 2.5GHz
|
up to 10 dBm
|
|
