tSL-P4R1/tSL-PA4R1
Single Stack Light Monitoring Module |
|
| |
| ~ NEW ~ |
|
 |
 |
| Model: tSL-P4R1 |
Model: tSL-PA4R1 |
|
|
 |
- Able to detect the status of each color segment: ON, OFF, or Flashing
- 4-channel DC/AC digital input and 1-channel alarm relay output
- Status monitoring for user-defined combinations of multiple color segments
- Reports the duration of the previous status
- Supports Modbus RTU, Modbus TCP and MQTT protocols
- Includes RS-485/Ethernet communication interfaces
- Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
- Web-based configuration interface and firmware update via Ethernet
- Relay output for alarm devices
- Wide operating temperature range: -25 to +75°C
|
|
|
| |
 |
The main purpose of managing machine status is to reduce the amount of downtime and to reduce production costs. The easiest way to achieve this is by
installing a tSL-P4R1/tSL-PA4R1 intelligent module from ICPDAS, which monitors the output of the machine’s indicators without affecting the operation of the equipment, thereby enabling the current operation stage of the machine to be mastered and ensuring timely command of the logistics system support in order to achieve production goals.

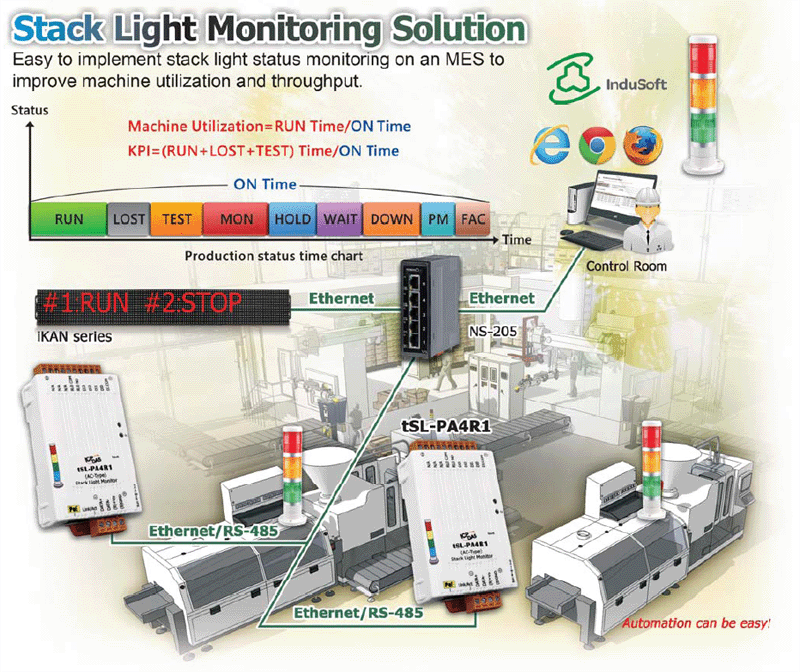

The tSL-P4R1/tSL-PA4R1 is a stack light monitoring module which includes 4-channel DC/AC digital input and 1-channel relay output that can be used to monitor the status of the stack light of the MES (Manufacturing Execution System) machine. The module can be used to detect the status of each color segment of the stack light as being either OFF, ON, or flashing. In addition to detecting the status of each individual color segment, the status of the combination of multiple color segments can also be defined, including the ability to report the duration of the previous status. By integrating the tSL-P4R1/tSL-PA4R1 module into your system, it is easy to implement stack light status monitoring on an MES via SCADA software to improve machine utilization and throughput. |
| |
 |
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
|
| |
 |
| |
 |
| Models |
tSL-P4R1 |
tSL-PA4R1 |
| Software |
| Built-in Web Server |
Yes |
| Communication |
| RS-485 Port |
Baud Rate = 1200 ~ 115200 bps |
| Ethernet Port |
10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicators) |
| Security |
IP filter (whitelist) and Password (web) |
| Protocol |
Modbus/RTU, Modbus TCP and MQTT |
| Dual Watchdog |
Yes, Module (2.3 seconds), Communication (Programmable) |
| LED Indicators |
| S1 |
System indicator |
| E1 |
PoE indicator (Green) |
| Link/Act,(Yellow) |
| Isolation |
| Intra-module Isolation, Field-to-Logic |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal |
| ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
±2 kV for Power |
| Power Requirements |
| Reverse Polarity Protection |
Yes |
| Power Input |
Terminal Block: +10 ~ +48 VDC |
| PoE: IEEE 802.3af, Class 1 |
| Consumption |
PoE |
1 W Max. |
| Non-PoE |
0.9 W Max. |
| Mechanical |
| Dimensions (W x L x H) |
52 mm x 98 mm x 27 mm |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 to +75°C |
| Storage Temperature |
-30 to +80°C |
| Humidity |
10 to 95% RH, Non-condensing |
|
| |
 |
| Models |
tSL-P4R1 |
tSL-PA4R1 |
| Digital Input |
| Input Channels |
4 |
| Type |
Wet Contact (Sink, Source) |
| ON Voltage Level |
+10 VDC ~ 50 VDC |
80 VAC ~240 VAC |
| OFF Voltage Level |
+4 V Max. |
30 VAC Max. |
| Input Impedance |
10 KΩ, 0.5 W |
150 KΩ, 2 W |
| Programmable Digital Filter |
0 ~ 6500 ms |
| Max. Stack Light Flashing Speed |
3 kHz |
60 Hz |
Able to detect the status of each
color segment: ON, OFF, or Flashing |
Yes |
Status monitoring for user-defined
combinations of multiple color segments |
Max. 81 combinations |
| Report duration of previous status |
Yes, 10 ~ 65500 ms |
| Overvoltage Protection |
70 VDC |
300 VAC |
| Isolation |
3750 VDC |
| Digital Output |
| Output Channels |
1 |
| Type |
Power Relay, Form A (SPST N.O.) |
| Operating Voltage Range |
250 VAC or 30 VDC |
| Max. Load Current |
5 A |
| Operate Time |
6 ms |
| Release Time |
3 ms |
| Electrical Life (Resistive load) |
VDE |
5 A @ 250 VAC 30,000 ops (10 ops/minute) at 75°C |
| 5 A @ 30 VDC 70,000 ops (10 ops/minute) at 75°C |
| UL |
5 A @ 250 VAC/30 VDC 6,000 ops |
| 3 A @ 250 VAC/30 VDC 100,000 ops |
| Mechanical Life |
20,000,000 ops at no load (300 ops/minute) |
| Power-on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
|
| |
 |
| tSL-P4R1 CR |
Single Stack Light Monitoring Module with Ethernet/RS-485 Interface and PoE for DC Stack Lights. (4 DC DI + 1 Relay) (RoHS) |
| tSL-PA4R1 CR |
Single Stack Light Monitoring Module with Ethernet/RS-485 Interface and PoE for AC Stack Lights. (4 AC DI + 1 Relay) (RoHS) |
|
| |
 |
| tM-7520U CR |
Isolated RS-232 to RS-485 Converter (RoHS) |
| tM-7561 CR |
Isolated USB to RS-485 Converter (RoHS) |
| I-7514U CR |
4-channel RS-485 Hub (RoHS) |
| NS-205PSE CR |
Unmanaged Ethernet Switch with 4 PoE Ports and 1 RJ-45 Uplink (RoHS) |
|
| |
|
|
| |
|
|
