| 新产品上市: I-8213W 工业级四频GSM/GPRS模组(带GPS功能) |
| |
 |
| |

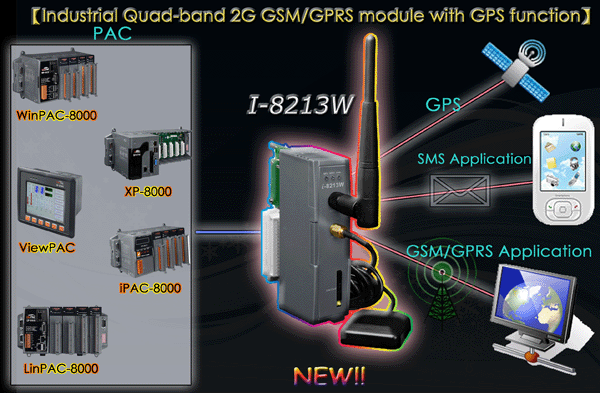

| 近年来泓格科技在M2M (Machine to Machine)领域不断的耕耘，相继推出G-4500可程式控制器系列、智能型GT-5XX系列和GTM-201系列，并受到市场的肯定与喜爱。现在，为了使PAC也能够快速建立2G的M2M应用, 泓格推出新产品I-8213W 工业级四频GSM/GPRS模组(内建GPS功能)，其支援GSM 850 / 900 / 1800 / 1900 MHz频段，提供便利且低廉的GSM/GPRS网路来收集远端设备，各种流量计的资讯或者执行即时的远端控制。除了在PAC系列产品上可当一般modem使用外, I-8212W更内建TCP/IP stack只需搭配简单的控制命令即可达到连线上网功能或简讯的收送，可轻易搭配PAC运用于多种M2M应用，如饮料贩卖机、居家保全系统、车载系统…等等。 I-8213W支援泓格科技各种平台的PAC，如: XPAC-8000(Windows Embedded Standard 2009)， WinPAC-8000/ViewPAC (WinCE 5.0 Based)，iPAC-8000 (miniOS7 Based)，LinPAC-8000 (Linux kernel 2.6 based)...等等，让使用者搭配自己喜爱的平台开发程式，将为使用者带来最大效益。 |
| |
特色:
- 内建四频(850/900/1800/1900 MHz)GSM/GPRS模组
- 4KV ESD瞬间静电保护
- 设计可用于GPRS和简讯应用
- 提供GPRS的TCP Server, TCP Client, UDP Client stack连线
- 支援标准的AT Commands
- GSM LED指示灯、Power LED 指示灯、GPS LED指示灯
- 在恶劣的环境具高可靠度
- 支援XP-8000、WinPAC-8000、LinPAC-8000、ViewPAC和iPAC-8000系列产品
- 支援GPS NMEA 0183
|
| |
| 详细规格 |
| Models |
I-8212W |
I-8213W (NEW) |
| GSM/GPRS System |
| GSM/GPRS Quad-band |
850/900/1800/1900 MHz |
| GPRS Multi-slot |
Class 10/8 |
| Class B |
Class B |
| GPRS Class 10 |
Max. download speed 85.6 kbps |
| CSD |
Up to 14.4 kbps |
| Compliant to GSM Phase 2/2+ |
Class 4 (2 W @ 850/900 MHz); Class 1 (1 W @ 1800/1900 MHz |
| Coding Schemes |
CS 1, CS 2, CS 3, CS 4 |
| SMS |
Text and PDU Mode |
| GPS Interface |
| Support Channels |
- |
32 |
| Sensitivity |
- |
Tracking = up to -159 dBm (with external LNA) |
| Cold start = up to -146 dBm (with external LNA) |
| Acquisition Time |
- |
Hot start (Open Sky) = 2 s(typical) |
| Cold start (Open Sky) = 36 s(typical) |
| Protocol Support |
- |
NMEA 0183 version 3.01 |
| LED Indicators |
| Power |
Red color |
| GSM/GPRS |
Yellow color |
| GPS |
- |
Green color |
| Power |
| Frame Ground Protection |
ESD, Surge, EFT, Hi-Pot |
| Power Consumption |
Idle: 0.16 A @ 5 VDC; Data Link: 0.2 ~ 1.64 A (peak) @ 5 VDC |
| Mechanical |
| Casing |
Plastic |
| Dimensions (W x L x H) |
30 mm x 85 mm x 114 mm |
| Environmental |
| Operating Temperature |
-25°C ~ +75 °C |
| Storage Temperature |
-30°C ~ +80 °C |
| Ambient Relative Humidity |
5 ~ 95% RH, non-condensing |
|
| |
| 比较表 |
| Models |
I-8212W-3GWA |
I-8213W-3GWA |
I-8212W |
I-8213W |
| Frequency Band |
Tri-band 3G/Quad-band 2G |
Quad-band 2G |
| Download Speed |
Max. 7.2 Mbps (3G)
Max. 85.6 kbps (2G) |
Max. 85.6 kbps (2G) |
| SMS |
Text, PDU |
| GPS System |
- |
Yes |
- |
Yes |
| GPS Protocol |
- |
NMEA 0183 |
- |
NMEA 0183 |
|
| |
| 更详细的资讯，请连结到: http://m2m.icpdas.com/i-8212w.html |
| |
| 订购资讯 |
| I-8212W CR |
工业级四频GSM/GPRS模组(RoHS) |
| I-8213W CR (NEW) |
工业级四频GSM/GPRS模组且具有GPS功能(RoHS) |
|
| |
|
| |
