| 新產品上市: I-8212W 工業級四頻GSM/GPRS模組 |
| |
 |
| |

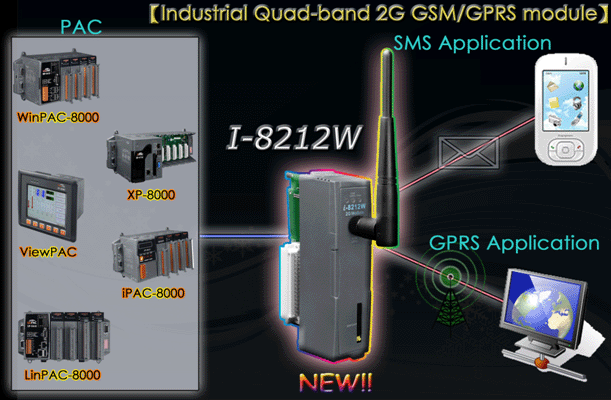

| 近年來泓格科技在M2M (Machine to Machine)領域不斷的耕耘，相繼推出G-4500可程式控制器系列、智能型GT-5XX系列和GTM-201系列，並受到市場的肯定與喜愛。現在，為了使PAC也能夠快速建立2G/3G的M2M應用, 泓格推出新產品I-8212W 工業級四頻GSM/GPRS模組，I-8212W支援GSM 850 MHz, EGSM 900 MHz, DCS 1800 MHz and PCS 1900 MHz頻段，提供便利且低廉的GSM/GPRS網路來收集遠端設備，各種流量計或者及時的遠端控制。除了在PAC系列產品上可當一般modem使用外, I-8212W更內建TCP/IP stack只需搭配簡單的控制命令即可達到連線上網功能或簡訊的收送，可輕易搭配PAC運用於多種M2M應用，如飲料販賣機、居家保全系統…等等。I-8212W支援泓格科技各種平台的PAC，如: XPAC-8000(Windows Embedded Standard 2009)， WinPAC-8000/ViewPAC (WinCE 5.0 Based)，iPAC-8000 (miniOS7 Based)，LinPAC-8000 (Linux kernel 2.6 based)...等等，讓使用者選擇搭配自己喜愛的平台上開發程式，I-8212W搭配泓格科技的各種PAC系列產品的應用，更可讓GSM/GPRS功能的效益發揮到最大。 |
| |
| 特色: |
- 內建四頻(850/900/1800/1900 MHz)GSM/GPRS模組
- 4KV ESD瞬間靜電保護
- 設計可用於GPRS和簡訊應用
- 提供GPRS的TCP Server, TCP Client, UDP Client stack連線
- 支援標準的AT Commands
- GSM LED指示燈與Power LED 指示燈
- 在惡劣的環境具高可靠度
- 支援XP-8000、WinPAC-8000、LinPAC-8000、ViewPAC和 iPAC-8000系列產品
|
| |
| 詳細規格: |
| Models |
I-8212W (NEW) |
I-8213W (Available soon) |
| GSM/GPRS System |
| GSM/GPRS Quad-band |
850/900/1800/1900 MHz |
| GPRS Multi-slot |
Class 10/8 |
| GPRS Mobile Station |
Class B |
| GPRS Class 10 |
Max. download speed 85.6 kbps |
| CSD |
Up to 14.4 kbps |
| Compliant to GSM Phase 2/2+ |
Class 4 (2 W @ 850/900 MHz); Class 1 (1 W @ 1800/1900 MHz) |
| Coding Schemes |
CS 1, CS 2, CS 3, CS 4 |
| SMS |
Text and PDU Mode |
| GSM/GPRS System |
| Support Channels |
- |
32 |
| Sensitivity |
- |
Tracking = up to -159 dBm (with external LNA) |
| Cold start = up to -146 dBm (with external LNA) |
| Acquisition Time |
- |
Hot start (Open Sky) = 2 s(typical) |
| Cold start (Open Sky) = 36 s(typical) |
| Protocol Support |
- |
NMEA 0183 version 3.01 |
| LED Indicators |
| Power |
Red color |
| GSM/GPRS |
Yellow color |
| GPS |
- |
Green color |
| Power |
| Frame Ground Protection |
ESD, Surge, EFT, Hi-Pot |
| Power Consumption |
Idle: 0.16 A @ 5 VDC; Data Link: 0.2 ~ 1.64 A (peak) @ 5 VDC |
| Mechanical |
| Casing |
Plastic |
| Dimensions (W x L x H) |
30 mm x 85 mm x 114 mm |
| Environmental |
| Operating Temperature |
-25°C ~ +75 °C |
| Storage Temperature |
-30°C ~ +80 °C |
| Ambient Relative Humidity |
5 ~ 95% RH, non-condensing |
|
| |
| Ordering information |
| I-8212W CR (NEW) |
工業級四頻GSM/GPRS模組(RoHS) |
| I-8213W CR (Available soon) |
工業級四頻GSM/GPRS模組且具有GPS功能(RoHS) |
|
|
| |
| 更詳細的資訊，請連結到: http://m2m.icpdas.com/i-8212w.html |
| |
|
| |
|
|
|
