RS-405
5-Port Real-time Redundant Ring Switch |
 |
 |
 |
 |
 |
|
|
|
|
|
|
|
 |
|
|
|
| |
|
|
| |
RS-405系列為泓格科技最新的即時備援乙太網路交換器產品(Redundant Ring Switch)，此系列產品可以滿足工控現場對乙太網路的斷線備援(詳見圖1)的需求。除了可以純用RS-405來做出多種的網路拓樸外(詳見圖2)，也可以與一般的乙太網路交換器共用，來做出節費的環狀斷線備援乙太網路(詳見圖3)。
RS-405本身具有兩組電源輸入，互為備援，如果有一組電源輸入有問題，或者發生斷線的狀況，RS-405的繼電器輸出(relay output)可以對外界發出警告訊號(詳見圖4)。透過RS-405的Modbus/TCP 通訊支持，網路管理者可以隨時得知RS-405各個乙太網路端口(port)的狀態(詳見圖5)。
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
- Automatic MDI / MDI-X crossover for plug-and-play
- Each port supports both 10/100 Mbps speed auto negotiation
- Store-and-forward architecture
- Full duplex IEEE 802.3x and half duplex backpressure flow control
- 3.2Gbps high performance memory bandwidth
- Frame buffer memory : 1 Mbit
- Integrated look-up engine with dedicated 2 K unicast MAC addresses.
- Redundant Power Inputs +10 ~ +30V DC
Power failure alarm by relay output
- Supports operating temperatures from -30°C ~ +75°C
- DIN rail mount for industrial usage
| |
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Technology |
| Completely compliant |
IEEE 802.3, IEEE 802.3u, IEEE802.3x |
| Ethernet switch type |
Intelligent store & forward |
| MAC addresses supported |
2K |
| Memory Bandwidth |
3.2 Gbps |
| Interface |
| RJ45 ports (shielded) |
10/100BaseT(x) |
| RJ45 speed (auto-negotiating) |
10 Mbps or 100 Mbps |
| RJ45 auto-mdi/mdi-x |
All 5 ports |
| Ethernet isolation |
1500 VRMS 1 minute |
| Power |
| Required supply voltage |
+10 ~ +30 VDC |
| Power input isolation |
1KV |
Power consumption
(Redundant input terminals) |
5 W
(typical - all ports active at 100 Mbps) |
| Mechanical |
| Case |
Plastic |
| Flammability |
UL 94V-0 |

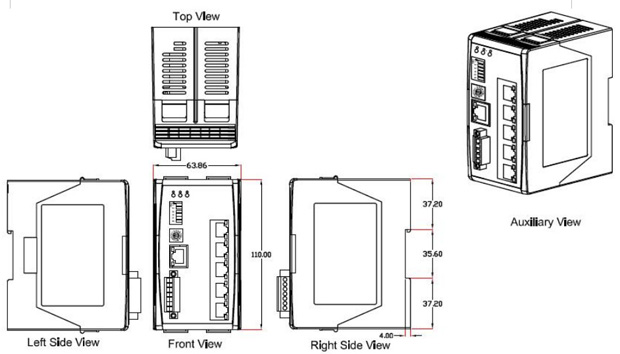

| Dimensions |
64mm x 110mm x 97.5mm (W x H x D) |
| Installation |
DIN rail mount |
| Environmental |
| Operating Temperature |
-40°C ~ +75°C |
| Storage Temperature |
-40°C ~ +85°C |
| Include cable |
| CA-090510 x 1 |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| RS-405 CR |
5-Port Real-time Redundant Ring Switch (RoHS) |
| RSM-405 CR |
5-Port Real-time Redundant Ring Switch with metal case (RoHS) |
| RS-408 CR |
8-Port Real-time Redundant Ring Switch (RoHS) |
| RSM-408 CR |
8-Port Real-time Redundant Ring Switch with metal case (RoHS) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-090510 |
9-pin Female D-sub & RJ-45 cable, 1M Cable |
| PWR-24/110 |
24V/0.2A Power Supply, (No-mounting) |
| KWM020-1824F |
24V/0.75A Power Supply, (No-mounting) |
| DIN-KA52F |
24V/1A Power Supply, (With DIN-Rail mounting) |
|
|
| |
|
|
| |
|
|
|
