Model: NS-205-IP67 Model: NS-205-IP67/DIN
NS-205-IP67
Unmanaged 5-Port Industrial Ethernet Switch with IP67 casing







NS-205-IP67 Ethernet Switches are designed for use in industrial waterproof/harsh environments.The rugged packaging and IP67 connectors guarantee a total protection that can withstand a variety of extreme conditions such as high temperatures, extreme shocks & vibrations, dust particles or even liquid immersion. They can be directly mounted to any machine or convenient flat surface. Even with all its rugged features, the switch still provides a high level of functionality, including the ability to support full-duplex communication and 10Mbps/100Mbps transmission speeds. With 1.4Gbps of total bandwidth, the switch can simultaneously handle full wire speed communication on each port. A dedicated uplink port enables a connection to other switches without use of a crossover cable. No programming is necessary, as the switch auto-learns network addresses. 10 to 30VDC isolated power input keeps spikes and surges on the power line from damaging the power supply. They are completely plug and play and ready to go right out of the box.








  • Automatic MDI / MDI-X crossover for plug-and-play
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Store-and-forward architecture
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • 1.4Gbps high performance memory bandwidth.
  • Integrated look-up engine with dedicated 1 K unicast MAC addresses.
  • Supports +10~+30Vdc voltage with 1KV isolation
    Reverse Polarity Protection
  • Plastic casing with IP67






Technology
Standards IEEE802.3, 802.3u, 802.3x
Packet Buffer Memory 256 KB
Processing Type Store and Forward
Address Table Size 1K uni-cast addresses
Flow Control IEEE802.3x flow control, back pressure flow control
Interface
RJ45 ports 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDIX connection
LED Indicators Power, 10/100M, Link/Act
Cable 10 Base-T (Cat.3, 4,5 UTP cable; 100m Max.)
100 Base-TX (Cat.5 UTP cable; 100m Max.)
Power
Input Voltage +10 ~ +30Vdc (1KV isolation)
Power consumption 0.12A@24VDC, +/- 5% arrowed with 10M Full duplex.
0.1A@24VDC, +/- 5% arrowed with 100M Full duplex
Mechanical
Case Plastic
Flammability UL 94V-0 materials
Environmental rating Protection rating IP67 for Operating Temperature -10 ¢XC~ +60¢XC
Protection rating IP66 for for Operating Temperature -40 ¢XC~ +80¢XC

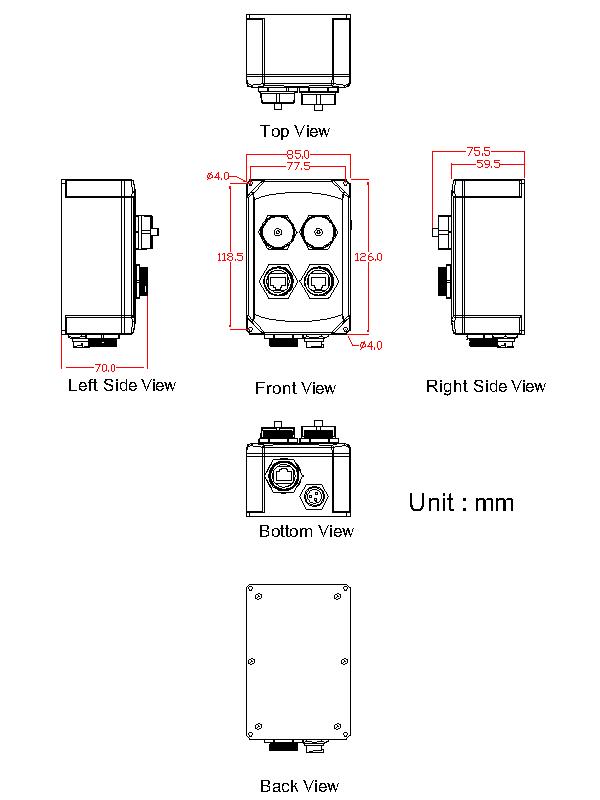

Dimensions 85mm x 126mm x 75.5mm (W x H x D)
Installation Wall Mounting
Environmental
Operating Temperature -10 ¢XC~ +60¢XC (Protection rating IP67)
-40 ¢XC~ +80¢XC (Protection rating IP66)
Storage Temperature -10 ~ +60¢XC (Protection rating IP67)
-40 ~ +85¢XC (Protection rating IP66)
Ambient Relative Humidity 100% RH for Operating Temperature -10 ¢XC~ +60¢XC
10% to 90% non-condensing for Operating Temperature -40 ¢XC~ +80¢XC






NS-205-IP67    Unmanaged 5-Port Industrial Ethernet Switch with IP67 casing
NS-205-IP67 CR    Unmanaged 5-Port Industrial Ethernet Switch with IP67 casing (RoHS)
NS-205-IP67/DIN CR    NS-205-IP67 with DIN-Rail mount (RoHS)






KWM020-1824F    24V/0.75A Power Supply, (No-mounting)
DIN-KA52F    24V/1A Power Supply, (With DIN-Rail mounting)



4SASO-0001

4SIO1K0000016

 4SASO-0004
