Model: I-8092-G/S

I-8092-G/S High Speed 2-Axis Motion Control Module

The I-8092 is a 2-axis stepping/pulse-type servo motor control module that can be used on any of the ICPDAS I- 8000, Wincon, and Lincon series controllers, and is suitable for general-purpose motion applications. Apart from a wide speed range, this intelligent motion controller also has a variety of built in motion control functions, such as 2-axis linear interpolation,2-axis circular interpolation,T/S-curve acceleration/deceleration, and others. In addition, most of the I-8092F motion control functions are performed with little load on the processor. While driving the motors, the motion status, and the other I/O status on the I-8000, Wincon, or Lincon modules, can still be monitored. As a result of the low CPU loading requirements of the I-8092, one or more motion modules may be used on a single I-8000, Wincon, or Lincon controller. ICPDAS has also provided a wide range of functions and examples to reduce the need for programming by users, making it a highly cost-effective solution for motion builders.

back

Independent 2-axis motion control

Support for hand wheel and jog functions

2-axis linear interpolation function

2-axis circular interpolation function

Continuous interpolation function

Programmable T/S-curve acceleration and deceleration

A maximum of 4M pps pulse output rate for each axis

Pulse output types: CW/CCW or Pulse/Direction

32-bit encoder counter for each axis

Encoder pulse input types: A/B phase or Up/Down

Programmable automatic homing for each axis

Position comparison management and software limits

Application

X-Y-Z Table

Fix-Pitch Stamping Machine

Transfer Machine

Spinner

Loader/Unloader

back

Item	Detail Description	Comment
Interpolation Functions	Linear Interpolation (Interpolation Speed: 4Mpps)	24-bit max for any single command
	Circular Interpolation (Interpolation Speed: 4Mpps)	24-bit max for any single command
	Bit Pattern Interpolation (Interpolation Speed: 4Mpps)	for I-8000 only
	Continuous Interpolation (Interpolation Speed: 2Mpps)	Yes
Drive Speed Curve	Maximum Drive Speed	4 Mpps
	Constant Speed Driving	Yes
	Trapezoidal Acc/Dec Driving	Yes
	Asymmetrical Trapezoidal Driving	Yes
	Asymmetrical Trapezoidal Automatic Deceleration Driving	Yes
	S-curve Acc/Dec Driving	Yes
	Asymmetrical S-curve Driving	Yes
	Asymmetrical S-curve Automatic Deceleration Driving	No
Position Control	Logic Position Counter/Bit Length for output pulse	32-bit
	Real Position Counter/Bit Length for output pulse	32-bit
	Position Compare Register Number/Axis	2
	Software Limit	Yes
	Position Counter Variable Ring	Yes
Home Search	Providing 6 modes for home search
External Signal for Driving	Fixed/Continuous Pulse Output	Yes
External Signal for Driving	Manual Pulsar	Yes
Other Functions	Drive Speed Change during Driving	Yes
	Output Pulse Number Change during Driving	Yes
	Triangle Form Prevention of Speed Curve	Yes
Servo Motor Signal	Servo Ready and Alarm Input Signals / Axis	Yes
Servo Motor Signal	Servo Enable Output / Axis	Yes
Other Input Signals	IN0 (Near Home), IN1 (Home), IN2 (Z-phase), IN3/Axis	Yes
Other Input Signals	Emergency Signal	Yes
Input Signal Integral Type Filter	Filter Time Constant: 2 ~ 16ms, 8 stages	Yes
Environment Signals	Operating Temperature: -20 ~ +75°C
	Storage Temperature: -30 ~ +85°C
	Operating Humidity: 10 ~ 85%RH, non-condensing
	Storage Humidity: 5 ~ 90%RH, non-condensing
	Isolation of I/O signal: 2500Vrms

back

I-8092-G/S

High Speed 2-Axis Motion Control Module

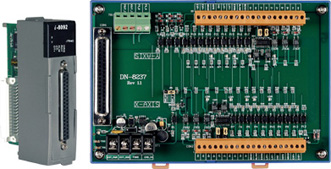

Include I-8092+DN-8237+CA-3710D

back

DN-8237	Daughter board (wiring terminal board) for I-8092F, Din-Rail mountable
CA-3710D	DB-37 Male D-sub cable 1M, Cable for Daughter Board(180°)
CA-3720D	DB-37 Male D-sub cable 2M, Cable for Daughter Board(180°)
