| I-8091W stepping motor control card is a micro-computer controlled, 2-axis pulse generation card. It includes a 2K bytes FIFO to receive motion command from host. A micro-computer for profile generation and protection, 2-axis DDA chip to execute DDA function when interpolation command is used, 2500Vrms optical isolation inserted for industrial application. |
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
 |
|
|
|
|
|
- 2-axis independent, simultaneous stepper motor control / servo motor control (pulse input type)
- Maximum pulse rate : 1 Mpps
- Maximum step counts: 232 -1 steps
- Embedded CPU
- Command type interface
- 2-axis linear, 2-axis circular interpolation
- Automatic trapezoidal acceleration / deceleration
- Output pulse modes : CW/CCW or pulse/direction
- Output polarity can be programmable
- 3 optical isolated digital inputs per axis for limit switches
- Programmable limit switch initial condition as normal open (N.O.) or normal close (N.C.)
|
| |
.jpg) |
| |

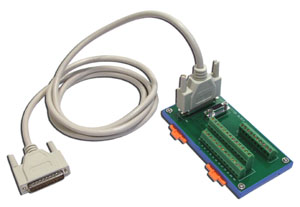

DN-25+CA-2520 |
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
|
|
|
| |
- X-Y Table
- Fix-Pitch Stamping Machine
- Transfer Machine
- Spinner
- Loader/Unloader
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
|
|
|
| |
| Motor control output |
| Output Axis |
2-axis |
| Maximum pulse rate |
1Mpps |
| Output pulse mode |
1. CW/CCW
2. Pulse/Direction |
| Maximum step counts |
232 -1 steps |
| Limit switches |
3 optical isolated inputs per axis |
| Interpolation command |
2-axis linear, 2-axis circular |
| Intra-module isolation, Field to Logic |
2500 Vrms |
| 4KV ESD Protection |
Contact for each channel |
| LED Display |
| 1 LED as Power Indicator/ 7 LED as Status Indicator |
| Power |
| Power Consumption |
Max. 3.9 W |
| Environment |
| Operating
Temperature |
-25 ~ 75¢XC |
| Storage
Temperature |
-30 ~ 75¢XC |
| Humidity |
5 ~ 95% RH, Non-condensing |
| Dimensions |
| 30 mm x 102 mm x 115 mm (W x L x H) Detail |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
|
|
|
| |
| I-8091W |
2-axis Stepping/Servo motor Control Module |
| Standard Pack |
I-8090 x 1,
User's Manual x1, CA-PC25M x 1 |
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
|
|
|
| |
| DN-25 |
I/O Connector Block with DIN-Rail Mounting, 25/9 pin D-sub Connector |
| CA-2520 |
25-pin Male-Male D-sub flat cable, 2 M |
|
|
| |
|
|
|
|
|
| |
