I-7018Z
10-channel Thermocouple Input Module with High Voltage Protection |
 |
 |
 |
 |
|
 |
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Analog Input |
| Input Channels |
10 Differential |
| Input Type |
+/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V
+/-20mA, 0~20mA, 4~20mA (Requires Optional External 125 Ohm Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710) |
| Resolution |
16-bit |
| Sampling Rate |
10 Samples/Sec (Total) |
| Accuracy |
+/- 0.1 % |
| -3dB BandWidth |
15.7 Hz |
| Zero Drift |
+/- 0.5 £gV/¢XC |
| Span Drift |
+/- 25 ppm/¢XC |
| Common Mode Rejection |
150 dB |
| Normal Mode Rejection |
100 dB |
| Input Impedance |
>500k Ohms |
| Over voltage Protection |
240 Vrms |
| Open Thermocouple Detection |
Yes |
| Individual Channel Configuration |
Yes |
| Temperature outputs consistency |
Yes |
| Stable temperature output in the field |
Yes |
| Intra-module Isolation, Field to Logic |
3000VDC |
| Interface |
| Interface |
RS-485 |
| Format |
N, 8, 1 (details) |
| Baud Rate |
1200 ~ 115200 bps |
| DB-1820 (3.81mm pitch) |
| Wire Strip Length |
4 ~ 5 mm |
| Wire Range |
16 ~ 24 AWG |
| DN-1822 (5.08mm ptich) |
| Wire Strip Length |
4 ~ 5 mm |
| Wire Range |
14 ~ 24 AWG |
| LED Display |
| 1 LED as Power/Communication Indicator |
| Power |
| Input |
+10 ~ +30 VDC |
| Power Consumption |
1.0W |
| Environment |
| Operating Temperature |
-25 ~ 75 ¢XC |
| Storage Temperature |
-40 ~ 85 ¢XC |
| Humidity |
5 ~ 95% RH, Non-condensing |
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| Type |
Range (¢XC) |
| J |
-210 ~ +760 |
| K |
-270 ~ +1372 |
| T |
-270 ~ +400 |
| E |
-270 ~ +1000 |
| R |
0 ~ +1768 |
| S |
0 ~ +1768 |
| B |
0 ~ +1820 |
| N |
-270 ~ 1300 |
| C |
0 ~ 2320 |
| L |
-200 ~ +800 |
| M |
-200 ~ +100 |
| L (DIN43710) |
-200 ~ +900 |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
 |
 |
 |
 |
| I-7018Z-G/S |
I-7018Z-G/S with CD-2518D kit |
I-7018Z-G/S with CD-25015 kit |
I-7018Z-G/S2 |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| I-7018Z-G/S CR |
10-channel Thermocouple Input Module with High Voltage Protection (RoHS)

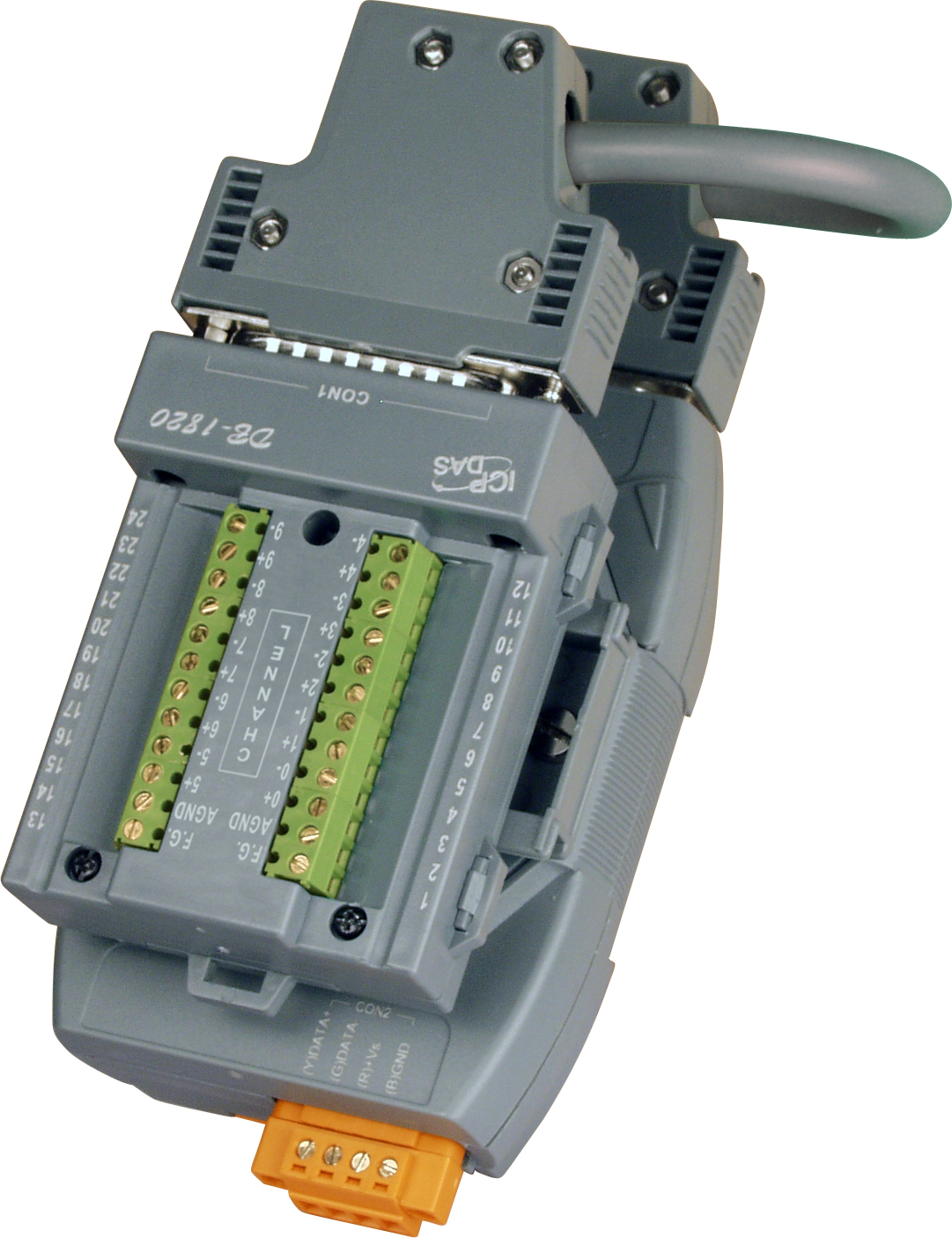

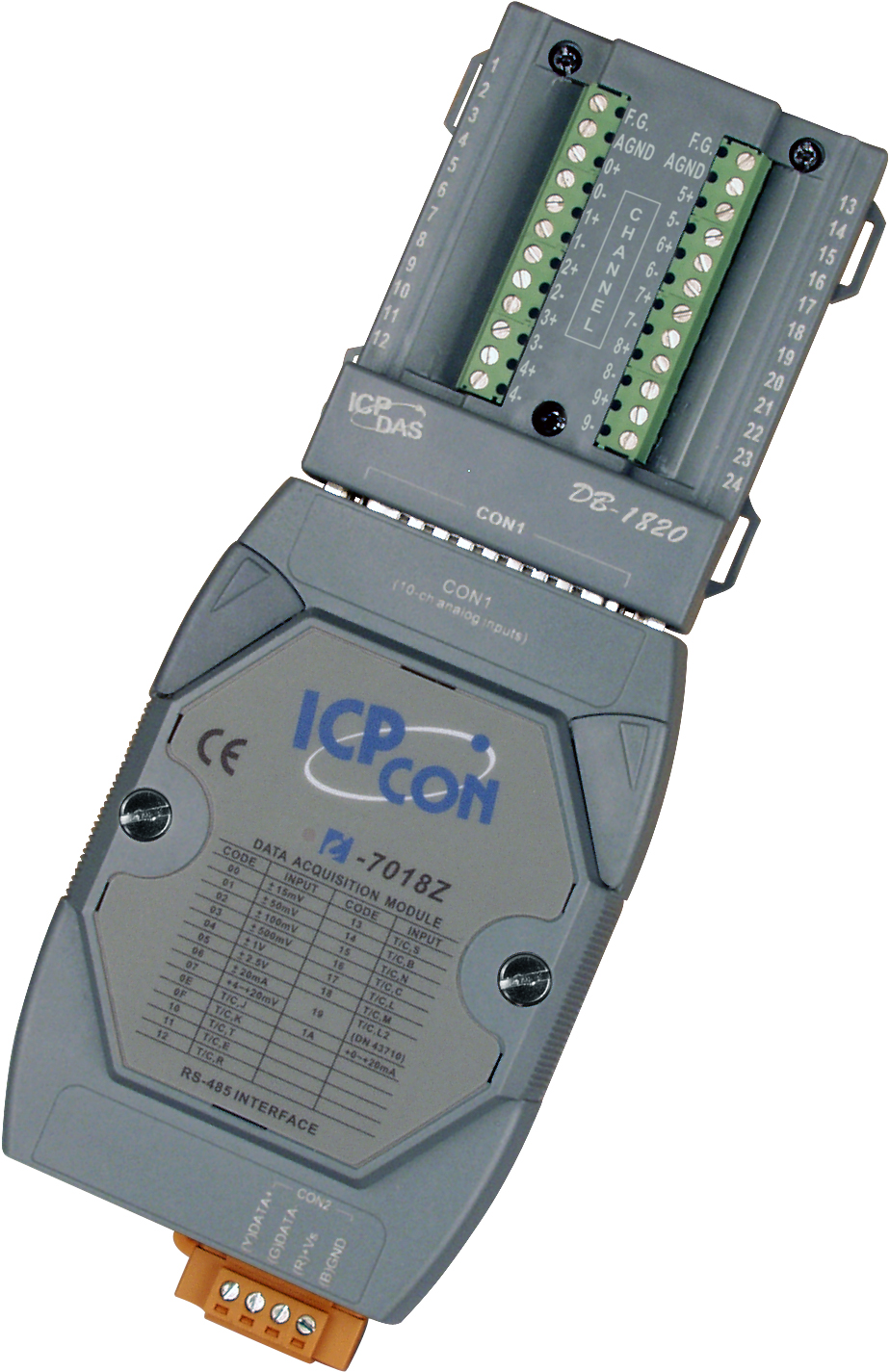

include I-7018Z module and DB-1820 daughter board |
| I-7018Z-G/S2 CR |
10-channel Thermocouple Input Module with High Voltage Protection (RoHS)
include I-7018Z module, DN-1822 daughter board and 1.8m cable |
|
|
|
|
| |
|
|
|
|
|
| |
