I-7016/I-7016D Hardware

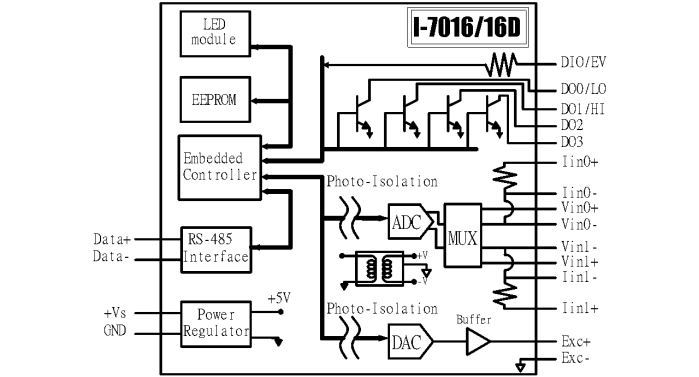

Internal I/O Structure
back

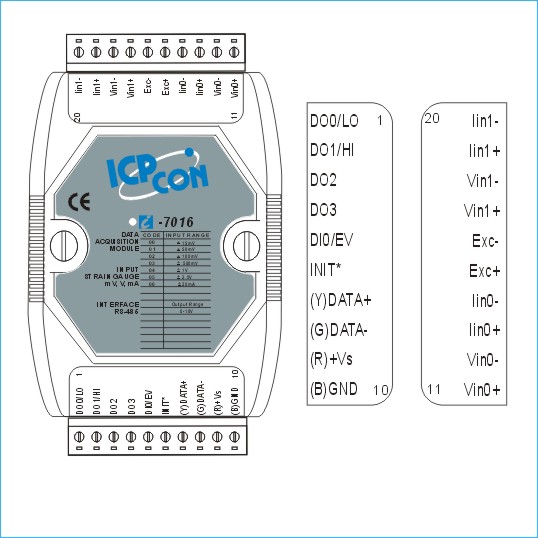

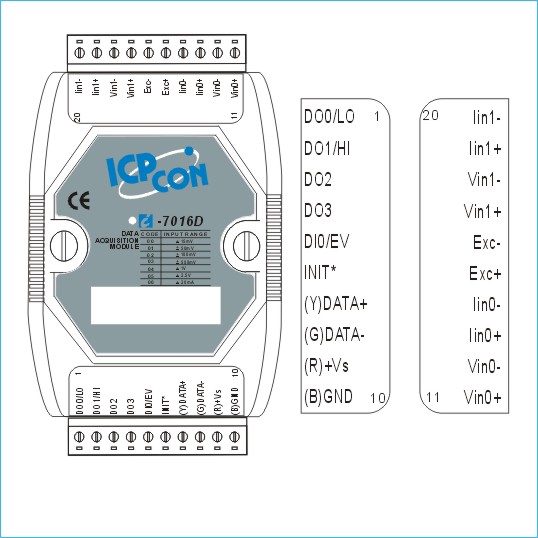

PIN Assignment
back
Wire Connection
Bridge Sensor/Load Cell/Strain Gauge Wire Connection
I-7016/16D
I-7016P/PD
Analog Input Wire Connection
Analog Output Wire Connection
I-7016/16D
I-7016P/16PD
Digital Input Wire Connection
Digital Output Wire Connection
back
