Comparison Table |
|
| |
|
|
| |

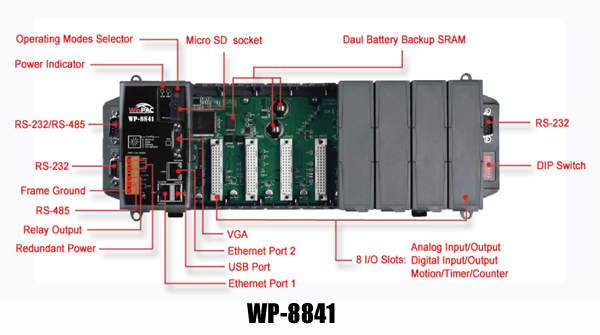

WP-8x4x
WP-8x4x is the second generation of PAC. It is equipped with variant connectivities (VGA, USB, Ethernet, RS-232/485) and 1/4/8 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules). Comparing to the first generation WinCon PAC, it not only improves the CPU performance (from 206 MHz to 520 MHz), but also add many reliablity features. |
|
| |
|
|
| |
 |
|
| |
|
|
| |

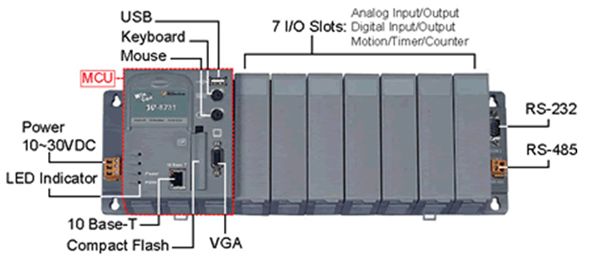

W-8x3x (Phased Out Since 2008)
W-8x3x is a PAC equipped with PC interface and 3/7 slots for I/O modules. Its PC-like interface includes: PS/2(keyboard and mouse), VGA port , USB port and RS-232/RS-485 communication ports. The powerful backplane(3/7 slots) can adopts versatile ICPDAS's high performance parallel (I-8K I/O modules) and serial-type I/O modules(I-87K I/O modules) |
|
| |
|
|
| |
 |
|
| |
|
|
| |
|
|
| |

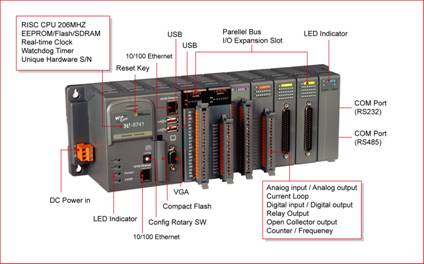

W-8x4x
WinCon-8x4x series embedded controllers are derived from existing WinCon-8x3x series. This evolution includes dual USB host ports to support more connectivity to USB I/O devices, dual Ethernet 10/100M ports to provide higher network performance, network security, and redundancy capability, and a rotate switch to configure your system and applications |
|
| |
|
|
| |
 |
|
| |
|
|
| |
| |
WP-8x4x |
W-8x3x |
W-8x4x |
OS |
Windows CE 5.0 |
Windows CE 4.1 |
Windows CE 4.1 |
CPU |
520MHz |
206MHz |
206MHz |
| SDRAM |
128MB |
64MB |
64MB |
Flash |
96 MB
(64 MB for OS image, 31 MB for built-in Flash disk,
1 MB for registry)
|
32MB
(for OS image only)
|
32MB
(for OS image only)
|
EEPROM |
16KB |
16KB |
16KB |
Expansion Memory Slot |
Micro SD slot
(Default=1GB)
|
Compact Flash type II (Default=1GB) |
Compact Flash type II (Default=1GB) |
| Interface |
USB 1.1 x 1
VGA port x 1 (800x600)
|
USB1.1 x 1
PS/2 port x 2 (Keyboard and Mouse)
VGA port x 1 (320x240~1024x768) |
USB1.1 x 2
VGA port x 1 (320x240~1024x768) |
Ethernet Port |
RJ45 x 2, 10/100 BaseTX |
RJ45 x1, 10BaseT
|
RJ45 x2, 10/100 BaseT
|
COM0 |
For I-87K module in I/O slot |
- |
- |
COM1 |
RS-232 |
For I-87K module in I/O slot |
For I-87K module in I/O slot |
| COM2 |
RS-485 |
RS-232 |
RS-232 |
COM3 |
RS-232/485 |
RS-485 |
RS-485 |
COM4 |
RS-232 |
- |
- |
I/O Expansion Slots |
1/4/8 |
0/3/7 |
0/3/7 |
| 64-bit Hardware Serial Number |
Yes |
Yesr |
Yes |
Push button |
- |
Yes (For Reset) |
Yes (For Reset) |
Programmable LED |
1 |
- |
- |
Dual Watchdog Timer |
Yes |
Yes |
Yes |
| Real Time Clock |
Yes |
Yes |
Yes |
DIP Switch (8 bit) |
Yes |
- |
- |
Rotary Switch |
Yes (0~9) |
- |
Yes (0~F) |
|
|
| |
|
|
|
|
|
| |
