X508 |
|
|
|
|

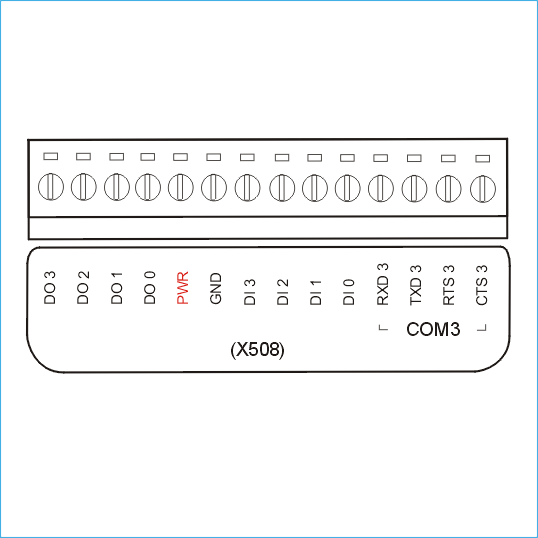

X508
(For I-7188XB/XG/EX/EG, £gPAC-7186EX/EG/FD/SM) |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
|
|
|
|
 |
|
|
|
| |
|
|
| |
| Number of port |
1 |
| Interface |
TXD, RXD, RTS, CTS, GND |
| Controller |
16C550 compatible |
| Speed: 115200 bps Max. |
| Data bit: 5, 6, 7, 8 |
| Stop bit: 1, 1.5, 2 |
| Parity: None, Even, Odd, Mark, Space |
| FIFO: Internal 16 bytes |
| Isolation Voltage |
Non-isolation |
| Software |
| Support interrupt driven software library |
| Support VxCOM library |
| Digital Output |
| Output Channels |
4 |
| Output Type |
Open-Collector (NPN) |
| Load Voltage |
+30VDC, Max |
| Load Current |
100mA, Max |
| Isolation Voltage |
Non-isolation |
| Digital Input |
| Input Channels |
4 |
| Input Type |
Sink, non-isolated channel with common ground |
| Off Voltage Level |
+1V max |
| On Voltage Level |
+3.5V ~ +30VDC |
| Isolation Voltage |
Non-isolation |
| Other specifications |
| Dimensions |
64 mm x 38 mm |
| Power requirement |
+5VDC |
| Environment |
| Environment with I-7188XC or £gpac-7186 series Casing |
Operating Temperature : -25 ~ +75 ¢J |
| Storage Temperature : -40 ~ +80 ¢J |
| Relative Humidity : 5% to 90% Non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| X508 |
1-Port RS-232 ( 5-Pin ) add 4-channel D/I, 4-channel D/O |
| X508 CR |
1-Port RS-232 ( 5-Pin ) add 4-channel D/I, 4-channel D/O (RoHS) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
