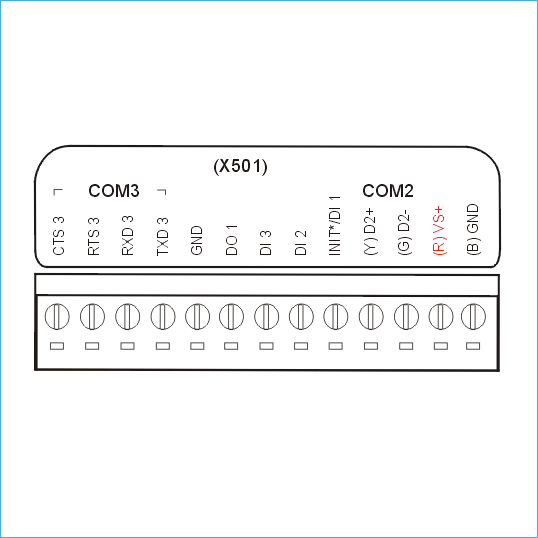

X501 |
|
|
|
|
X501
(For 7188XC) |
|
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
 |
|
|
|
| |
Power consumption : 0.4 W |
|
| |
Parallel I/O
- RS-232 port : 1
- COM3 : TXD, RXD, RTS, CTS, GND
- 16550 compatible
- Internal FIFO : 16 bytes
- Transmission speed: 115.2K BPS max.
- Isolated : none
|
|
| |
|
|
|
|
|
| |
|
|
| |
Ordering Information
| X501 |
1-Port RS-232 ( 5-Pin ) |
| X501 CR |
1-Port RS-232 ( 5-Pin ) (RoHS) |
|
|
| |
|
|
| |
|
|
|
|
|
|
