X302 |
|
|
|
|
|
|
|
|
 |
|
|
|
| |
|
|
| |
| Analog Input |
| Input Channel |
1 |
| Input Type |
+/- 5V |
| Resolution |
12-bit |
| Sampling rate |
900Hz Max |
| Input Impedance |
50K Ohm |
| Over voltage Protection |
+/-5VDC |
| Isolation Voltage |
Non-isolation |
| Analog Output |
| Output Channel |
1 |
| Output Type |
+/- 5V |
| Resolution |
12-bit |
| Output Capacity |
10mA |
| Isolation Voltage |
Non-isolation |
| Other specifications |
| Dimensions |
64 mm x 32 mm |
| Power requirement |
+5VDC |
| Environment |
| Environment with
I-7188XC or £gpac-7186 series Casing |
Operating Temperature : -25 ~ +75 ¢J |
| Storage Temperature : -40 ~ +80 ¢J |
| Relative Humidity : 5% to 90% Non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |

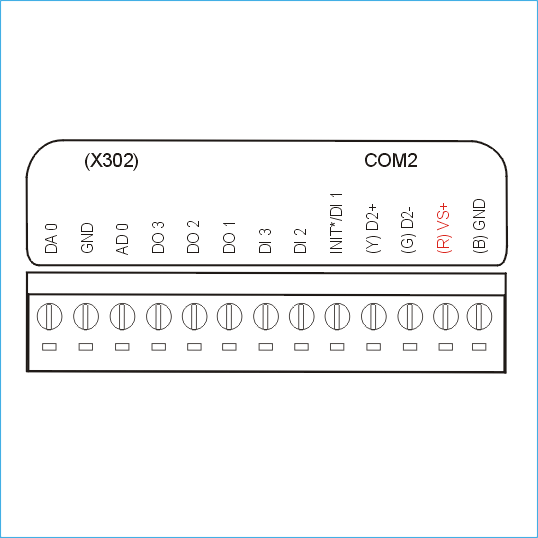

| X302 |
1-channel A/D ( +/-5V), 1-channel D/A ( +/-5V) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
