Introduction |
|
| |
The HERO is an All-In-One RISC base CPU Board with artistic shell covered for users to integrate it to the control platform easily. By using the Intel PXA255 XScale® RISC microprocessor, the HERO is designed for high performance, low power, Fan-Less and because of these specifics, the application of HERO is very wild, for example：Industrial automation, Factory automation, Building automation and Machine automation. The Hero can be fit for rigorous environment. In addition, the Hero support WinCE.net and Embedded Linux OS. You can select the needed OS version to fit for your need.
|
|
| |
|
|
|
|
|
| |
|
|
| |

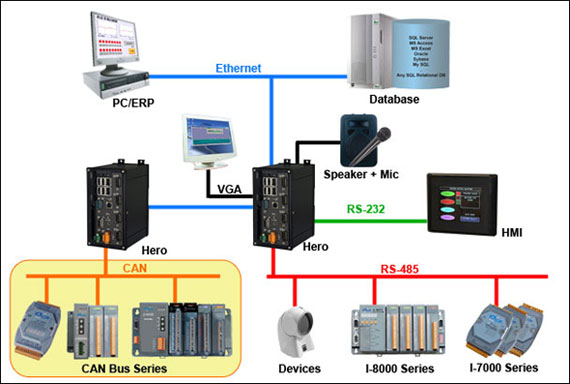

Application |
|
| |
|
|
| |
|
|
| |
|
|
| |

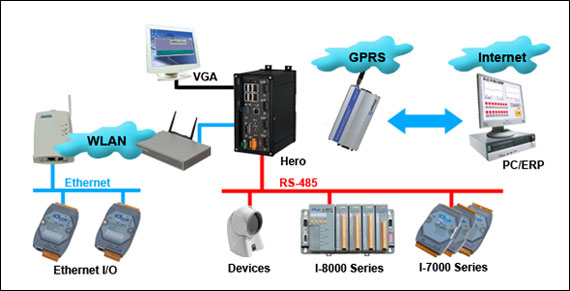

Wireless Architecture |
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Embedded RTOS Solutions
|
|
| |
|
|
| |
Each of our embedded SBCs is embedded Linux built-in, and we also provide OS image OEM/ODM services for our customers to utilize their systems. |
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Application Development Support |
|
| |
|
|
| |
|
|
| |
The Hero supports ISaGRAF to be easily integrated with many HMI software and devices such as ICP DAS's MMICON, iFix, Iconics, Wizcon, Intouch, Citect, Indusoft, Kepware's Modbus OPC server, Touch 506, 510, etc. When the ISaGRAF controller integrate with a GSM Modem, Short Message Service is supported. It can deliver message to a cell phone to report information, or receive message from a cell phone to control something...
|
|
| |
|
|
| |
 (WinCE based only) |
|
| |
The Hero provides a bundled driver to integrate the application performance and easy to use of software and hardware. It can play as an intelligent distributed data acquisition front end connected to a Host machine running a standard SCADA package... |
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
Software Development Kit |
|
| |
|
|
| |
Linux based SDK for Hero-4701L:
ICPDAS provides the library file － libi8k.a which includes all the functions of the I-7000/8000/87k series modules. Users just install LinCon SDK in Windows PC, the cygwin environment will be established automatically and users can develop LinCon-8000 Applications easily by GNU C Language. Otherwises, users can also use Java to develop LinCon applications.
WinCE based SDK for Hero-4701W
The NuWaSDK_LIB has all the essential Library functions designed for the IO series modules of ICP DAS for Microsoft WinCE.Net platform. It can be applied on eMbedded Visual C++ on WinCE 4.2.Net, and even on the newer platforms. Users can easily develop WinCE.NET applications on NuWa by using this toolkit. The various functions in NuWaSDK_LIB are divided into the following sub-group functions for easy use in different applications. |
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Application Field |
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Hardware Specification |
|
| |
|
|
| |
|
HERO-4701 |
Processor |
Intel XScale PXA255 |
Processor Clock Rate |
400 MHz |
Flash A (32 Bits Mode) |
32 MB |
Flash B (16 Bits Mode) |
8MB |
System Memory |
64 MB SDRAM |
Compact Flash Interface |
Type I/II x 1 |
Hardware Unique ID |
v |
RTC |
v |
Watch Dog Timer |
v |
Touch Interface |
v |
RS-232 |
4 |
RS-485 |
1 |
USB Client |
1 |
AC97' Audio |
v |
SRAM (Battery Backup) |
512 KB |
EEPROM |
128 K bit |
PCMCIA |
Type II |
10/100 Ethernet |
2 |
USB Host Port |
2 |
CAN Bus |
1 |
Power In |
DC 10V~DC 30V |
Dimension |
153mm x 135mm x 82mm |
Operation Temp. |
0~70°C |
|
|
| |
|
|
|
|
|
| |
|
|
| |
Ordering Information |
|
| |
|
|
| |
Hero-4701W |
RISC Based Single Board Computer with Windows CE Embedded |
Hero-4701L |
RISC Based Single Board Computer with Linux Embedded |
|
|
| |
|
|
|
|
|
|
