PFN-2055
~ NEW ~
PROFINET I/O Module |
|
|
|
|
|
|
|
| |
|
|
| |

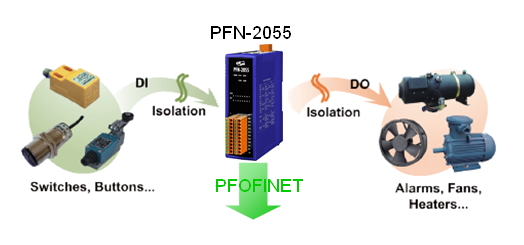

The PFN-2055 is specially designed for PROFINET IO device. It has 8-channel isolated digital inputs and 8-channel isolated digital outputs, and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.
|
|
|
|
| |
|
| |
|
| |
-
Industrial Automation
-
Factory Automation
-
Process Automation
-
Etc¡K
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
-
Protocol: PROFINET IO Device
-
PROFINET Conformance Class B and RT Class 1
-
Cyclic Time: 1ms (min)
-
Generic GSDML File Provided (Version 2.25)
-
Do load voltage: +3.5 ~ +50 VDC
-
Do load current: 700 mA/Channel (max.)
-
Provide short-circuit protection on DO channels
-
DI ON/OFF voltage level: +10 ~ +50 VDC / +4VDC max.
-
4 kV Contact ESD protection for any terminal
-
Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +75°C)
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |

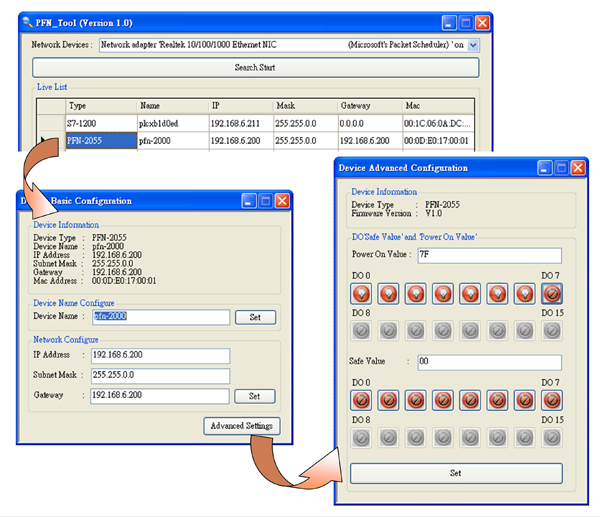

ICP DAS provides the PFN_Tool configuration utility to configure devices.
- Provide device search function
- Show firmware version
- Support network parameters configuration
- Settings for power-on value and safe value
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Hardware |
| CPU |
32-bit CPU Core |
| RAM/Flash/EEPROM |
32 MB / 4 MB / 8 KB |
| Watchdog |
CPU built-in |
| ESD Protection |
4 kV class B |
| PROFINET Interface |
| Protocol |
PROFINET IO Device |
| Conformance Classes |
Class B |
| Services |
RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time |
1 ms (min) |
| Ethernet Interface |
| Controller |
10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |
| Connector |
RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch |
| Services |
ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging |
| Digital Input |
| Channels |
8, Dry Contact: Source, Wet Contact: Sink or Source |
| Dry Contact Level |
Off Voltage Level : Open, On Voltage Level : Close to GND |
| Wet Contact Level |
Off Voltage Level : +4 VDC max., On Voltage Level : +10 VDC to +50 VDC |
| Digital Output |
| Channels |
8, Sink, NMOS |
| Load voltage |
+3.5 ~ +50 VDC |
| Load current |
700 mA/Channel (max.) |
| LED |
| Round LED |
PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
| Power |
| Power supply |
Unregulated +10 ~ +30 VDC |
| Protection |
Power reverse polarity protection, Over-voltage brown-out protection |
| Power Consumption |
4.5 W |
| Mechanism |
| Installation |
DIN-Rail |
| Dimensions |
33 mm x 107 mm x 126 mm (W x L x H) |
| Environment |
| Operating Temp. |
-25 ~ 75 ¢J |
| Storage Temp. |
-30 ~ 80 ¢J |
| Humidity |
10 ~ 90% RH, non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| PFN-2055 CR |
PROFINET I/O Module (Isolated 8-ch DI & 8-ch DO) (RoHS)
|
|
|
| |
|
|
| |
|
|
|
|
