PDS(M)-721(D)/PPDS(M)-721(D)-MTCP
Programmable Serial-to-Ethernet Device Servers |
|
| |
|
 |
 |
| Model: PDS-721(D)/PPDS-721(D)-MTCP |
Model: PDSM-721(D)/PPDSM-721(D)-MTCP |
|
|
|
|
| |
 |
The PDS-700 series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the PDS-700 series into standard COM ports on a PC. By virtue of its protocol independence, a small-core OS and high flexibility, the PDS-700 series is able to meet the demands of every network-enabled application.
The PDS-700 series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in, high-performance MiniOS7 boots the PDS-700 up in just one second and gives you fastest responses.
The PPDS-700-MTCP series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PPDS-700-MTCP also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol. The PDSM-700 is the PDS-700 with Metal Case (RoHS) and the PPDSM-700-MTCP is the PPDS-700-MTCP with Metal Case (RoHS). Metal Case version includes stronger protection than PDS-700 and PPDS-700-MTCP.

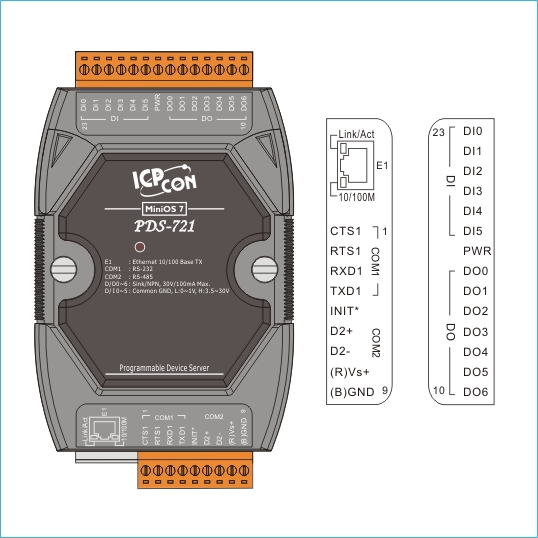

The PDS(M)-721(D) and PPDS(M)-721(D)-MTCP is equipped with 1 RS-232 port, 1 RS-485 port and DI/DO. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations. |
| |
 |
- Incorporate Serial Devices in an Ethernet network
- "Virtual COM" Extend COM Ports
- Virtual COM supports 32-bit and 64-bit Windows XP/2003/Vista/7/8
- Powerful Programmable Device Server
- Watchdog Timer suitable for use in harsh environments
- Power Reverse Polarity Protection
- Serial Port +/-4 kV ESD Protection Circuit
- Self-Tuner ASIC Controller on the RS-485 Port
- 5-digit LED Display (for versions with a display)
- RoHS Compliant with no Halogen
- Built-in High Performance MiniOS7 from ICP DAS
- 10/100 Base-TX Ethernet, RJ-45 Port
(Auto-negotiating, auto MDI/MDI-X, LED indicator)
- ODM Service Is Available
- Low power consumption
- Palm-Sized with multiple Serial Ports
- Supports D/I, Latched D/I and Counter Functions
[PPDS(M)-721(D)-MTCP only]
- Supports Modbus TCP to RTU/ASCII Gateway
- Supports PoE (IEEE 802.3af, Class 1)
|
| |
 |
- Factory Automation
- Building Automation
- Home Automation
|
| |
 |
| Model Name |
PDS(M)-721(D)/PPDS(M)-721(D)-MTCP |
| Digital Output |
| Output Channel |
7 |
| Output Type |
Open Collector (Sink/NPN) |
| Load Voltage |
30 VDC, max. |
| Load Current |
100 mA, max. |
| Isolated Voltage |
Non-isolated |
| Digital Input |
| Input Channel |
6 |
| Input Type |
Source (Dry Type), Common Ground |
| Off Voltage Level |
+1 V max. |
| On Voltage Level |
+3.5 ~ +30 V |
| Isolated Voltage |
Non-isolated |
| Counters |
Channels: 6 |
| Max. Count: 16-bit (65535) |
| Max. Input Frequency: 100 Hz |
| Min. Pulse Width: 5 ms |
|
| |
 |
| Model Name |
PDS(M)-721(D) |
PPDS(M)-721(D)-MTCP |
| CPU |
| CPU |
80186-80 MHz or compatible |
| SRAM |
512 KB |
| Flash Memory |
Flash ROM: 512 KB ; Erase unit is one sector (64 KB);
100,000 erase/write cycles |
| EEPROM |
16 KB;
Data retention: 40 years; 1,000,000 erase/write cycles. |
| Built-in Watchdog Timer |
Yes |
| PoE |
- |
IEEE 802.3af |
| Communication Interface |
| Non-isolated |
COM1 |
RS-232 (TxD, RxD, RTS, CTS, GND) |
| COM2 |
RS-485 (D2+, D2-, GND) |
| RS-485 |
Bias Resistor |
Yes, 1 KΩ |
| Node |
254 (max.) |
| Ethernet |
10/100 Base-TX, RJ-45 port
(Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Port Formats |
| Data Bit |
7, 8: for COM1 and COM2 |
| Parity |
None, Even, Odd, Mark, Space
None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Stop Bit |
1, 2: for COM1 ~ COM2 |
| Baud Rate |
115200 bps Max. |
| LED Indicators |
| 5-digit 7 Segment |
Yes, only for "D" versions |
| System |
Red |
| PoE |
- |
Green |
| Power |
| Protection |
Power Reverse Polarity Protection |
| Required Supply Voltage |
+10 VDC ~ +30 VDC (non-regulated) |
PoE or +12 VDC ~ +48 VDC (non-regulated) |
| Power Consumption |
PDS(M)-721: 2.0 W
PDS(M)-721D: 2.7 W |
PPDS(M)-721-MTCP: 2.2 W
PPDS(M)-721D-MTCP: 2.9 W |
| Mechanism |
| Flammability |
Fire Retardant Materials (UL94-V0 Level) |
| Dimension (W x H x D) |
72 mm x 123 mm x 35 mm (88 mm x 123 mm x 28 mm for "M" versions) |
| Installation |
DIN-Rail or Wall mounting |
| Casing |
Fire Retardant Plastic (Metal for "M" versions) |
| Environment |
| Operating Temperature |
-25 to +75 °C |
| Storage Temperature |
-40 to +80 °C |
| Humidity |
5 to 90% RH, non-condensing |
|
| |
 |
| PDS-721 CR |
Programmable Device Server with 1 RS-232 port and 1 RS-485 port (RoHS)
Includes One CA-0910 Cable |
| PDSM-721 CR |
PDS-721 CR with Metal Case |
| PDS-721D CR |
Programmable Device Server with 1 RS-232 port , 1 RS-485 port and an LED Display (RoHS)
Includes One CA-0910 Cable |
| PDSM-721D CR |
PDS-721D CR with Metal Case |
| PPDS-721-MTCP CR |
Programmable Device Server with PoE, Modbus Gateway, 1 RS-232 port and 1 RS-485 port (RoHS)
Includes One CA-0910 Cable |
| PPDSM-721-MTCP CR |
PPDSM-721-MTCP CR with Metal Case |
| PPDS-721D-MTCP CR |
Programmable Device Server with PoE, Modbus Gateway, 1 RS-232 port, 1 RS-485 port and an LED Display (RoHS)
Includes One CA-0910 Cable |
| PPDSM-721D-MTCP CR |
PPDSM-721D-MTCP CR with Metal Case |
|
| |
 |
|
| |
| |
 |
|
| |
|
| |
|
|
