Web-Enabled LED Display
DLite Message Software for EKAN LED Display |
| |
|
| |
DLite Message Software V1.5 is a easy-to-use but powerful message tool. It includes 5 modules:
Message Editor
Web Message Editor
Script Language Editor
Utility DLite SDK |
|
|
|
 |
|
|
|
| |
Message Editor
DLite Message Editor supports the single EKAN display application. It provides easy-to-use interface to help user to edit marquee type message. User can upload these messages by TCP/IP network after editing f inished. Wi th DLi te, you can program you LED message from PC, including:
|
- Create message with color, font, and layout
- Define message attributes such as entering effect
(scroll-up/down/right/ left) & speed, leaving effect & Speed, idle time
- Create basic animation
|
 |
User friendly interface
DLite provides a user friendly interface to help user upload their messages to LED display. User could edit their messages, preview the scrolling effects, change LED configurations. DLite message editor also support graphic files (like BMP), user could display graphic images on the LED display. |
Built-in LED emulator for preview
DLite provides a preview window and let user could see the effects before messages uploaded. User could easily make sure the WYSIWYG (What you see is what you get) on the LED display.
Message storage support
EKAN use flash memory to store messages. Once messages finished download from PC, it will be there until you erase it, and no extra power was needed. DLite support 100+ messages for display. |
|
Animation capability
DLite Message Editor can let you create several BMP graphic files and build an animation application. So you can easily let you EKAN having animation capability. |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
Web Message Editor
DLite Web Message Editor let you create message with browser, so you always can post message to EKAN no matter where you are only if you can connect to the Internet. Using DLite Web Message Editor, you can create almost 10 messages simultaneously with its attributes & effect such as entering/leaving, font color, background color, speed and delay times. |
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
Script Editor
DLite Script Editor is a handy tool to edit DLite message script file. Script language is the fundamental of EKAN Series. Every EKAN has a script interpreter built-in on its firmware, through this interpreter DLite message script file will be transformed to the display action on EKAN. |
|
Edit Script files
DLite Script is a simple but powerful language. Using Script Editor, you can edit script files to get more precise and variety effect on the EKAN LED display.
 |
Script Emulator
After edit the script, user could preview the script execution result on the LED emulator comes with editor.
Upload & Download
Script Editor provides upload & download ability. When you have seen the display result with emulator, you can upload the message script file to the EKAN and execute this application. You also can download message files originally existed on the EKAN. With the help of DLite Script Editor, it will greatly expend the flexibility and application of EKAN LED display. |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
Utility
DLite Utility can let you configure and modify EKAN system variables like communication setting, display matrix configuration, access control setting and so on. Also, you can use DLite Utility to do files management on EKAN. |
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
DLite SDK

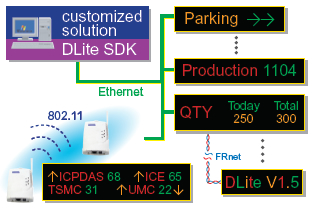

DLite SDK is designed for the customers who want to build their own display application. DLite SDK brings the real-time message transmission ability into traditional LED display.
User can update the data in real-time on the LED display anywhere, anytime, by TCP/IP network. Using DLite SDK, system integrators and users can easily integrate LED display into their solution and let it be able to send real-time data to EKAN Series display to fulfill lots of application such as. |
|
Production line and warehousing
| With DLite SDK, user could easily display dynamic data and static data at same time. It could be used on real-time production line quantities and accomplish percentage display. |
 |
Facility Monitoring
|
By using the active lighting LED to show real-time message, EKAN makes\ facility or equipment monitoring become a easy job. DLite SDK let distribute I/O module (like ICPDAS i7000 series) or PC Based PLC (for example: ICPDAS WinCon-8000) can deliver their realtime data to LED display. |
 |
LED bulletin board
LED provides better visibility and let user could see bulletin board content from a distance. Applications like bus or train station's schedule list, movie theaters' play list...etc
 |
Real-time message direction
For public place with mass moving traffic, like airport or convention center, it need real-time and dynamic direction ability. DLite helps management group realtime change direction message from control center, provide dynamic direction for people or car.
 |
Dynamic marquee
Using DLite SDK could let LED real-time display new information, and could dynamic change content on scrolling marquee. This application fits large information with variety, such as : |
- Stock Quote
- Real-time news
- Multiple I/O real-time monitor
|
|
|
Real-time Graphic display
EKAN hardware LED control ability With DLite SDK, bring real-time graphic ability into tradition LED. By sing EKAN built-in graphic with DLite SDK real-time linking transmission, let EKAN become a HMI like graphic display. Combining data and graphic, EKAN enrich LED display for nowadays application. |
|
Game machine
Using DLite SDK, every single pixel on EKAN LED could operate independence, so it provides very flexible display ability. For game machine need complex realtime graphic control, it is an excellent choice.
Wi th DLi te SDK bui l t - in ActiveX cont rols , any application supports ActiveX can easily communicate with EKAN , including: |
|
- HMI/SCADA like Wonderware, Intellution, GE Cimplicity, etc.
- Any customized application using EXCEL, VB, VC++,MS .NET and DHTML
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
Real-time message for LED display
Custom message refresh rate (0.01 sec~)
Support TCP/IP network (LAN, Wireless LAN, WAN)
User authentication, authorization
Secure transmission
Message could be put in any position on LED display
Support graphic library for drawing pixel & line in real-time
Maintain connection state
ActiveX component .NET Ready |
|
| |
|
|
|
|
|
| |
|
|
|
|
