ZB-2570-T
Ethernet/RS-485/RS-232 to ZigBee Converter (Host) |
 |
 |
 |
 |
| |
|
|
|
|
 |
|
|
|
| |
|
|
| |
|
|
| |
ZigBee Network
The ZB-2570-T/2570P-T is a host ZigBee converter, and the ZB-2571-T/2571P-T is a slave ZigBee converter. Each feature an Ethernet/RS-485/RS-232 interface. Devices that have an Ethernet/RS-485/RS-232 interface are also able to be connected using the ZB-2570-T/2570P-T/2571-T/2571P-T. By distributing host and slave ZigBee converters in the field, users can easily build a wireless network that can be used for both monitoring and control.
User-friendly interface
A Windows compatible GUI configuration utility is available. Only four steps are required to set the ZB-2570-T/2571-T/2570P-T/2571P-T and then it is ready for use. The utility allows users to set different operating modes based on the type of application, and several of the required ZigBee variables such as PAN ID, etc.
What are the benefits of using ZigBee?
ZigBee is a specification based on the IEEE 802.15.4 standard for wireless personal area networks (WPANs). It is targeted at applications that require secure networking as well as high flexibility for network expansion anytime new nodes are to be added. It is also widely used in the industrial control field, in hospitals, labs and in building automation. Three topologies are defined in the IEEE 802.15.4 standard: Star, Cluster Tree and Mesh. The typical transmission range for the 2570-T/2571-T is 100 m, and the 2570P-T/2571P-T is 700 m. more... |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- ISM 2.4 GHz Operating Frequency.
- Full Compliance with 2.4 G IEEE 802.15.4/ZigBee Specifications.
- Wireless transmission range up to 100 m (LOS)
- GUI Configuration Software (Windows Version)
- DIN-Rail Mountable.
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |

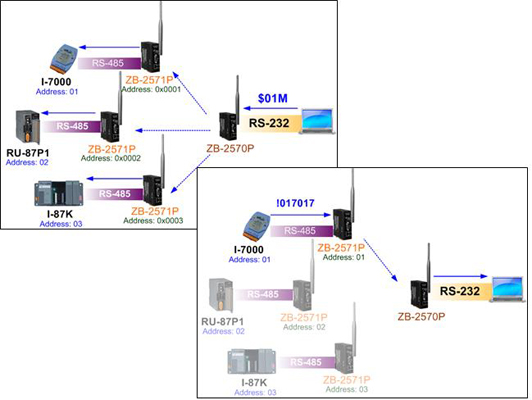

| Serial Transparent non-addressable Mode : |
 |
| |

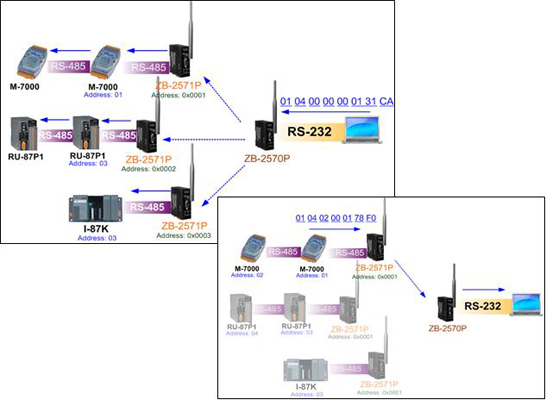

| Modbus RTU/ASCII Mode : |
 |
| |
| Serial Transparent addressable Mode : |
 |
| |

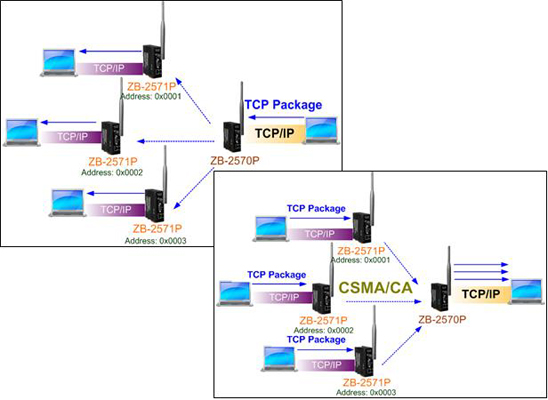

| Ethernet Transparent non-a ddressable Mode : |
 |
| |

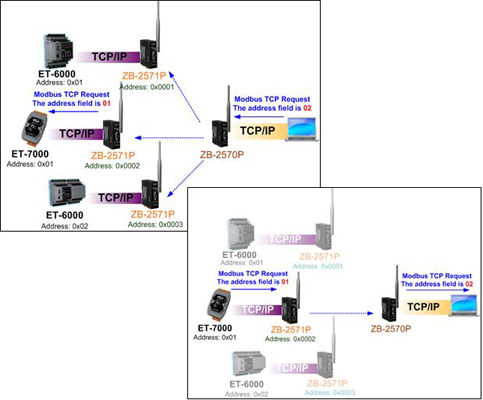

| Modbus TCP Mode : |
 |
| |

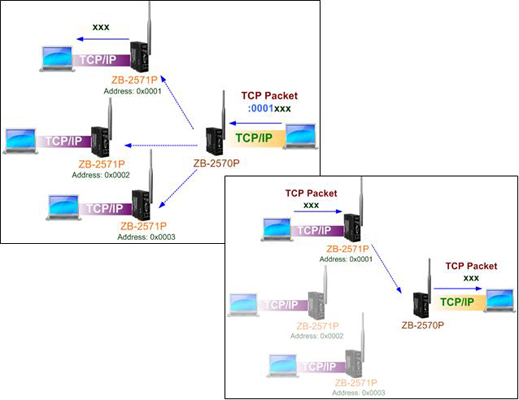

| Ethernet Transparent addressable Mode : |
 |
| |
| Modbus RTU/ASCII to Modbus TCP Mode : |
 |
| |

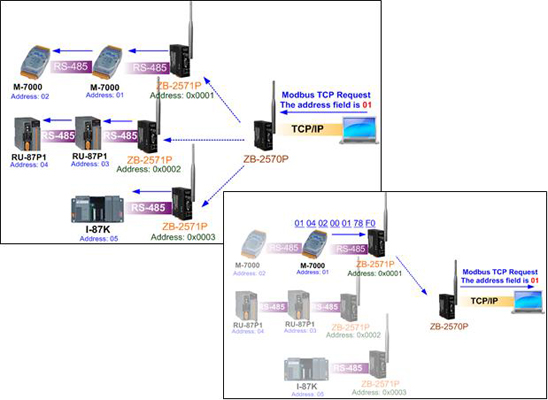

| Modbus TCP to Modbus RTU/ASCII Mode: |
 |
| |
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| Industrial control, medical data collection, smoke and intruder warning, building automation, home automation, and domotics. |
 |
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| General |
| CPU |
80186, 80 MHz or compatible |
| Module Type |
Host |
| Communication Interface |
| COM 0 |
RS-232 (TxD, RxD, and GND); D-Sub 9 Female, Non-isolated. |
| RS-485 (D+, D-; internal Self-Tuner ASIC); Non-isolated. |
| Ethernet |
10/100 Base-TX (Auto-negotiating, auto_MDI/MDI-X, LED indicators) |
| COM 0 Settings |
| Baud Rate |
1200 ~ 115200 bps |
| Data Bit |
7, 8 |
| Parity Check |
Even, Odd, None |
| Stop Bit |
1 |
| LED Indicators |
| ZigBee Net State |
Green |
| ZigBee RxD |
Yellow |
| Power |
Red |
| Power |
| Protection |
Power reverse polarity protection. |
| EMS Protection |
ESD, Surge, EFT |
| Required Supply Voltage |
+10 VDC ~ +30 VDC |
| Power Consumption |
2.5 W |
| Connection |
5-pin 5.08 mm Removable Terminal Block. |
| Mechanical |
| Casing |
Plastic |
| Flammability |
UL 94V-0 materials |
| Dimensions (W ¡Ñ L ¡Ñ H) |
33 mm ¡Ñ 78 mm ¡Ñ 107 mm |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ¢J ~ +75 ¢J |
| Storage Temperature |
-40 ¢J ~ +80 ¢J |
| Relative Humidity |
5 ~ 95 % RH, non-condensing |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| RF channels |
16 |
| Receive
sensitivity |
-102 dBm |
| Data encryption |
AES-CRT/AES-128 |
| Transmit power |
6 dBm |
| Network Topology
support |
Star, Mesh and cluster tree |
| Antenna (2.4 GHz) |
3 dBi Omni-Directional antenna |
| Transmission range (LOS) |
100 m |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| ZigBee Converter |
| ZB-2570-T CR |
Ethernet/RS-485/RS-232 to ZigBee Converter (Host) (RoHS) |
| ZB-2570-T/S CR |
Ethernet/RS-485/RS-232 to ZigBee Converter (Host) (RoHS)+ GPSU06U-6 (Power Supply) |
| ZB-2571-T CR |
Ethernet/RS-485/RS-232 to ZigBee Converter (Slave) (RoHS) |
| ZB-2571-T/S CR |
Ethernet/RS-485/RS-232 to ZigBee Converter (Slave) (RoHS)+ GPSU06U-6 (Power Supply) |
| ZB-2570P-T CR |
Ethernet/RS-485/RS-232 to High Power Amplifier ZigBee Converter (Host) (RoHS) |
| ZB-2570P-T/S CR |
Ethernet/RS-485/RS-232 to High Power Amplifier ZigBee Converter (Host) (RoHS)+ GPSU06U-6 (Power Supply) |
| ZB-2571P-T CR |
Ethernet/RS-485/RS-232 to High Power Amplifier ZigBee Converter (Slave) (RoHS) |
| ZB-2571P-T/S CR |
Ethernet/RS-485/RS-232 to High Power Amplifier ZigBee Converter (Slave) (RoHS)+ GPSU06U-6 (Power Supply) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
