~Phased out~ |
|
| |
| |
|
|
|

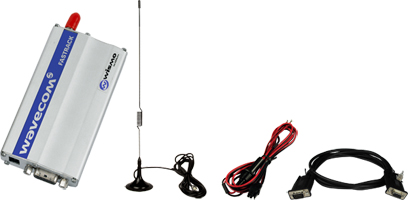

M1306
900/1800 GSM/ GPRS External Modem |
 |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
- Dual Band GSM/GPRS modem (EGSM900/1800 MHz)
- Fully Type Approved
- Fully compliant with ETSI GSM Phase 2 + specifications (Normal MS)
- Output power:
Class 4 (2W @ 900 MHz)
Class 1 (1W @ 1800/1900 MHz)
- Input voltage: 5V-32V
- Input current:
Always on version (GPRS):- 13,2mA in idle mode, 130mA in communication(GSM 900 ) ,
94mA in communication (GSM1800 / 1900 )@ 13,2V
Autoshutdown version (GSM):
- 2,5mA in idle mode, 130mA in communication (GSM 900), 94mA in communication (GSM 1800 / 1900) @ 13,2V
- Temperature range:
- -20oC -- +55oC operating
- -25oC -- +70oCstorage
- Overall dimensions: 98 x 54 x 25mm
- Weight: 130g
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Telephony |
| Emergency calls |
| Full Rate, Enhanced Full Rate and Half Rate (FR/EFR/HR) |
| Dual Tone Multi Frequency function (DTMF) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Data circuit asynchronous, transparent and non-transparent up to 14,400 bits/s |
| Automatic fax group 3 (Class 1 and Class 2) |
| MNP2, V.42bis |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
GPRS Class 10, PBCCH support
Coding schemes: CS1 to CS4
Compliant with SMG31bis
Optional embedded TCP/IP stack |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Text and PDU |
| Point to point (MT/MO) |
| Cell Broadcas |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Call Forwarding |
| Call Barring |
| Multiparty |
Call Waiting and Call Hold
Calling Line Identity |
| Advice of Charge |
| USSD |
| Closed User Group |
| Explicit Call Transfer |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| ME+SIM phone book management |
| Fixed Dialling Number |
| SIM Toolkit Class 2 |
| SIM, network and service provider locks |
| Real Time Clock |
| Alarm management |
| Software upgrade through Xmodem protocol |
| UCS2 character set management |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
RS-232 and audio through mini sub-D 15-pin connector
supporting:
- Remote control by AT commands (GSM 07.07 and 07.05)
- Baud rate from 300 to 115,200 bits/s
- Autobauding (300 to 38,400 bits/s) |
| Power supply through micro-FIT 4-pin connector |
| SMA antenna connector |
| Sliding SIM holder (3V/5V SIM interface) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| User guide |
| Power supply cable |
| Y-cable for data and audio connection (optional) |
| Fixing equipment |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| M1306 |
900/1800 GSM/GPRS External Modem |
|
|
| |
|
|
|
|
|
| |
|
|
