Supreme

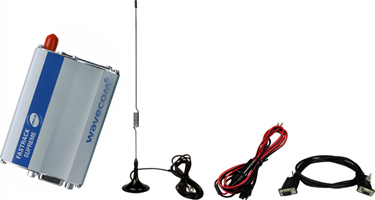

Supreme 850/900/1800/1900 GSM/ GPRS External Modem

The Supreme is discrete, rugged cellular Plug & Play Wireless CPUR offering state-of-the-art GSM/GPRS connectivity for machine to machine applications.
Proven for reliable, stable performance on wireless networks worldwide, Having comparable size with the previous M1306B generation, and updated with new features, the Fully certified, the quad band 850/900/1800/1900 MHz Supreme offers GPRS Class 10 capability. Supreme supports a powerful open software platform (Open ATR). Open ATR is the world’s most comprehensive cellular development environment, which allows embedded standard ANSI C applications to be natively executed directly on the Wireless CPUR.

back

GSM850 / GSM900

DCS1800 / PCS1900

Standard

850MHz / 900 MHz.

E-GSM compliant.

Output power: class 4 (2W).

Fully compliant with ETSI GSM phase 2 +
small MS.

1800 MHz / 1900MHz

Output power: class 1 (1W).

Fully compliant with ETSI GSM phase 2 +
small

GPRS

Class 10.

PBCCH support.

Coding schemes: CS1 to CS4.

Compliant with SMG31bis.

Embedded TCP/IP stack.

EGPRS

Output power: 0.5W

Output power: 0.4W

Interfaces

RS232 (V.24/V.28) Serial interface supporting:

Baud rate (bits/s): 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200,
230400, 460800 and 921600.

Autobauding (bits/s): from 1200 to 921600.

2 General Purpose Input/Output gates (GPIOs) available.

1.8 V / 3 V SIM interface.

AT command set based on V.25ter and GSM 07.05 & 07.07.

Open ATR interface for embedded application.

Open ATR Plug-In Compatible.

SMS

Text & PDU.

Point to point (MT/MO).

Cell broadcast.

Data

Data circuit asynchronous.

Transparent and Non Transparent modes.

Up to 14.400 bits/s.

MNP Class 2 error correction.

V42.bis data compression.

Fax

Automatic fax group 3 (class 1 and Class 2).

Audio

Echo cancellation

Noise reduction

Telephony.

Emergency calls.

Full Rate, Enhanced Full Rate, Half Rate operation and Adaptive Multi-Rate
(FR/EFR/HR/AMR).

Dual Tone Multi Frequency function (DTMF).

GSM　supplement　services

Call forwarding.

Call barring.

Multiparty.

Call waiting and call hold.

Calling line identity.

Advice of charge.

USSD

Other

DC power supply

Real Time Clock with calendar

Complete shielding

back

Power Supply
DC +5.5 V to +32 V at 2.2A.
Maximum current	480 mA Average at 5.5V.
	2.1 A Peak at 5.5 V. (TBC)
Protected against voltage over +32 V.
Protected by an 800 mA / 250 V fuse directly bonded on the power supply cable.
RS232 Serial Link
Filtering guarantees	EMI/RFI protection in input and output
	Signal smoothing.
Signals available on the RS232 serial link are	TX data (CT103/TX)
	RX data (CT104/RX)
	Request To Send (CT105/RTS)
	Clear To Send (CT106/CTS)
	Data Terminal Ready (CT108-2/DTR)
	Data Set Ready (CT107/DSR)
	Data Carrier Detect (CT109/DCD)
	Ring Indicator (CT125/RI).
Autobauding Mode.
Audio
Microphone Inputs
Speaker Outputs
Mechanical Characteristics
Dimensions	73mm x 54.5mm x 25.5mm (excluding connectors)
Overall Dimension	88mm x 54.5mm x 25.5mm
Weight	80 grams (Supreme only)
	< 120 grams (Supreme + bridles + power supply cable)
Volume	101.5 cm3
Housing	Aluminum profiled
SIM card	1.8V / 3 V
Frequency ranges
Frequency TX	24 to 849 MHz @GSM 850.
	880 to 915 MHz @E-GSM 900.
	1710 to 1785 MHz @DCS 1800.
	1850 to 1910 MHz @PCS 1900.
Frequency RX	869 to 894 MHz @GSM 850.
	925 to 960 MHz @E-GSM 900.
	1805 to 1880 MHz @DCS 1800.
	1930 to 1990 MHz @PCS 1900.
Receiver and transmitter RF performances
Receiver	E-GSM900/GSM850 Reference Sensitivity: -104 dBm Static & TUHigh
	DCS1800/PCS1900 Reference Sensitivity: -102 dBm Static & TUHigh
	Selectivity: @ 200 kHz > +9 dBc @ 400 kHz > +41 dBc
	Linear dynamic range: 63 dB
	Co-channel rejection: >= 9 dBc
Transmitter	Maximum output power (E-GSM 900/GSM850) at ambient temperature: 33 dBm +/- 2 dB
	Maximum output power (DCS1800/PCS1900) at ambient temperature: 30 dBm +/- 2 dB
	Minimum output power (E-GSM 900/GSM850) at ambient temperature: 5 dBm +/- 5 dB
	Minimum output power (DCS1800/PCS1900) at ambient temperature: 0 dBm +/- 5 dB
External antenna characteristics
Antenna frequency range	Quad-band GSM 850/GSM900/DCS1800/PCS1900 MHz
Impedance	50 Ohms nominal
Ranges of temperature
Operating / Class B	-30 °C to +85°C
Storage	-40 °C to +85°C

back

Supreme

850/900/1800/1900 GSM/ GPRS External Modem
