| £gP-4500-TC65: M2M Mini-Programmable Automation Controller |
 |
| £gP-4500D-TC65: M2M Mini-Programmable Automation Controller with LCD display |
| £gP-4500P-TC65: M2M Mini-Programmable Automation Controller with GPS function |
| £gP-4500PD-TC65: M2M Mini-Programmable Automation Controller with LCD display and GPS function |
|
| |
|
|
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
ICP DAS has just launched the mini-style uP-4500 series since today. The uP-4500 features M2M (Machine to Machine) which is the hottest topic in the 21 century. Instant monitoring, immediate message sharing, quick responding, and so on are becoming the popular issues when speaking of machines. Most importantly, an intelligent, efficient machine effectively lowers your labor cost which always counts the most.
But how are we going to make this happen? uP-4500 would tell you!

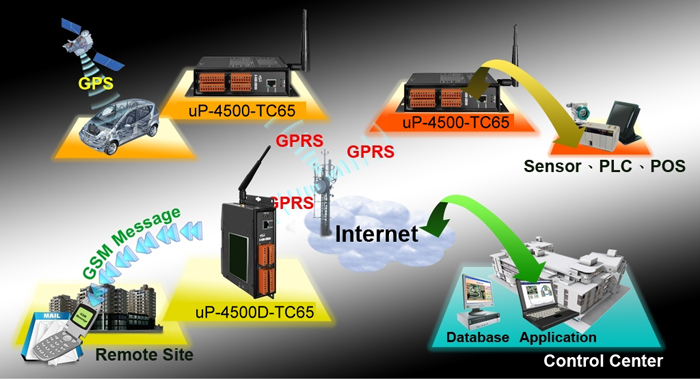

A compact programmable automation controller plus an antenna makes uP-4500 born in the world. With built-in GPRS/GSM, uP-4500 does more than just working alone by itself. uP-4500 not only monitors the data but sends them out in real time to the control center if necessary.
Also, by combining a GPS (optional) with uP-4500, uP-4500 suddenly becomes a tracking system which you can often find out in the car system, marine system, etc.
Inside uP-4500, a high-performance CPU is working over there; outside uP-4500, you get the standard interface of an antenna, an Ethernet port, 3 digital inputs, 3 digital outputs, 8 analog inputs, 2 RS-232 COM ports and 1 RS-485 COM port. GPS is optional.
There are uP-4500 and uP-4500D for your options. uP-4500D equips with a 128x64 display for direct data presenting. |
|
|
| |
|
|
| |
 |
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
- Embedded MiniOS7, anti-virus
- Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, ARP
- 10/100 BASE-T NE2000 compatible Ethernet Controller
- COM port: COM1 (5-wire RS232), COM2 (RS-485), COM3 (3-wire RS232)
- Built-in self-tuner ASIC controller on RS-485 port
- I/O: 3 channel DI, 3 channel DO, 8 channel AI
- Support SD storage card
- GPRS/GSM: Quad-band 850/900/1800/1900
- Support TCP, UDP, HTTP, FTP, SMTP, POP3 connection from GPRS
- GPS : 16 channels with All-In-View tracking (option)
- 128*64 dots LCM display (only for uP-4500D-TC65)
- Support for Virtual COM technology
- Support Modbus Protocol
- High reliability in harsh environment
- Free easy-to-use software development toolkits
- Supports using several service profiles at the same time, provided all of them are running on the same connection profile
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |

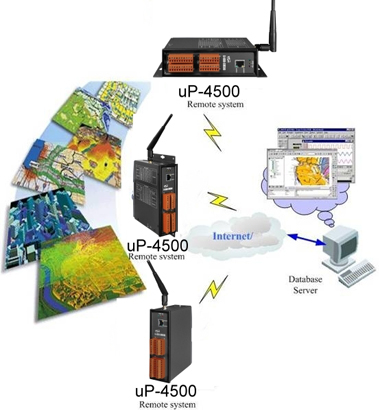

Application 1: GIS system System |
|
| |
 |
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Power supply |
| Power requirements |
+10 to +30 VDC power |
| Power consumption |
Operating mode < 4 W (GPRS transmission; GPS receiving) |
| General environment |
| Operating temperature |
-25¢XC to +65¢XC |
| Storage temperature |
-40¢XC to +80¢XC |
| Humidity |
5% to 95% Non-condensing |
| System |
| CPU |
£gP-4500 : 80186, 80M Hz |
| SRAM |
512K Bytes |
| Flash Memory |
512K Bytes, Erase unit is 64K Bytes, 1,000,000 erase/write cycle |
| OS |
MiniOS7 of ICP DAS (64K bytes) |
| NVSRAM |
31 bytes, battery backup, data valid up to 10 years |
| EEPROM |
16K bytes, data retention> 40 year. 1,000,000 erase/write cycles |
| Real time clock |
Gives time(sec, min, hour) & date, leap year compensation from 1980 to 2079 |
| Watchdog timer |
Yes |
| Serial ports |
| COM1 |
RS-232 : TXD,RXD,RTS,CTS,GND |
| COM2 |
RS-485 self-tuner ASIC inside ; D2+, D2- |
| COM3 |
RS-232 : TXD,RXD, GND |
| Ethernet |
10M/100M bps |
| DIO channel |
| Input |
3 digital input channels
Input type : Sink
On Voltage : +3.5V~+30V
Off Voltage : +1V Max. |
| Output |
3 digital output channels
Output type : Open-Collector (NPN)
Load Voltage : +30V Max.
Load Current : 100mA Max. |
| AI channel |
| Input |
8 analog input
Resolution : 12-bit
Input Range/Type : 0~20Ma
Sample Rate : 1KHz Max (Read one channel) |
| Expand Memory Interface |
| MMC/SD socket |
Data Format : FAT16 |
| Development tool |
| C programming |
Supports TC 1.0~3.0/TC++ 1.0~3.0/BC 2.0/BC++ 3.1~5.02/MSC8.00c/MSVC++ 1.52. Provides C Lib functions for GPRS ¡BDigital I/O¡BAnalog input ¡Bread/write COM Port¡BEEPROM¡BRTC¡BFLASH¡BSRAM¡Btimer¡BWatchdog¡AProgram downloaded from PC via COM1 |
| Protocols |
| Remote I/O |
COM2 Supports I-7000 and I-87K remote I/O module
COM1 and COM3 via I-7188 or I-8000 control connect I-7000 and I-87K remote I/O module or PLC or X Boards |
| User defined protocol |
User can write his own protocol |
| LED light |
| LED |
LED * 3 |
| GPRS/GSM system |
| GPRS/GSM |
GPRS/GSM Quad-Band 850/900/1800/1900 MHz
GPRS multi-slot : class 12
GPRS mobile station : class B
CSD up to 14.4 kbps
Compliant to GSM phase 2/2+
-Class 4(2W @ 850/900 MHz)
-Class 1(1W @ 1800/1900 MHz)
Coding schemes : CS 1-4
Supports using several service profiles at the same time, provided all of them are running on the same connection profile
SMS: Text and PDU mode |
| GPS system |
| GPS |
16 channels with All-In-View tracking
Built-in high gain amplifier and bandpass filter
Cold/Warm Time: 42 / 35 sec. at open sky and stationary environments.
Reacquisition Time: 0.1 second
Extra high sensitivity: -159dBm
SMA Connector |
| LCD Display Module |
| LCM |
Character Format: 128*64 Dots
Dot size: 0.48(W)*0.48(H)mm
Dot pitch: 0.52 (W)£Y0.52(H)mm
Module dimension: 93(W)£Y70(H)£Y1.6(T) mm
Effective display area: 80.61(W)£Y14.37(H) mm
Viewing direction: 12 O¡¦clock
Lcd type : STN(Y-G), Positive, Transflective
Life Time : Expected life is more than 100,000 hours under normal
operating condition
|
| Case |
| Dimensions |
154mm X 118mm X 42mm (long*width* high) |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| £gP-4500-TC65 CR |
M2M Mini-Programmable Automation Controller (RoHS) |
| £gP-4500D-TC65 CR |
M2M Mini-Programmable Automation Controller with LCD display (RoHS) |
| £gP-4500P-TC65 CR |
M2M Mini-Programmable Automation Controller with GPS function (RoHS) |
| £gP-4500PD-TC65 CR |
M2M Mini-Programmable Automation Controller with LCD display and GPS function (RoHS) |
|
|
| |
|
|
|
|
|
| |
|
|
|
|
