PCI-P16R16/PCI-P8R8
16-channel isolated digital input, 16- channel relay output
8-channel isolated digital input, 8- channel relay output |
|
| Model: PCI-P16R16/PCI-P8R8 |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |

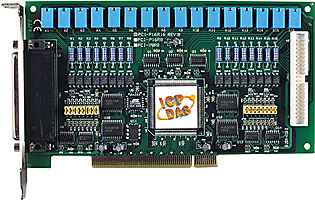

The PCI-P16R16 provides 16 optically isolated inputs and 16 Relay outputs. The PCI-P16R16 has those two 37-pin D-Sub connector. It can be installed in a 5 V PCI slot and can support truly "Plug & Play".
The PCI-P16R16/PCI-P8R8 supports various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT, Windows XP 32-Bit, Vista 32-Bit and Windows 7 32-Bit. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications. |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
[PCI-P16R16]
- 16 Relay output channels
- 16 Optical isolated digital input channels
- Selectable DC signal input filter
- AC Signal input with filter
[PCI-P8R8]
- 8 Relay output channels
- 8 Optical isolated digital input channels
- Selectable DC signal input filter
- AC Signal input with filter
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7.
- VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included.
- LabVIEW toolkit for Windows.
- Driver for Linux.
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Model Name |
PCI-P8R8 |
PCI-P16R16 |
| Digital Input |
| Isolation Voltage |
5000 Vrms(Photo-couple) |
| Channels |
8 |
16 |
| Input Voltage |
Logic 1:AC/DC 5 ~ 24 V(AC 50 ~ 1 kHz)
Logic 0: AC/DC 0 ~ 1 V |
| Response Speed |
Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz(Typical) |
| Relay Output |
| Channels |
8 |
16 |
| Relay Type |
4 SPDT ,4 SPST |
8 SPDT ,8 SPST |
| Contact Rating |
AC:120 V@0.5 A
DC: 24 V@1 A |
| Operate Time |
5 ms (typical) |
| Release Time |
10 ms (typical) |
| Insulation Resistance |
100 M£[ |
| Life |
Mechanical: 5,000,000 ops.
Electrical: 100,000 ops. |
| General |
| Bus Type |
5 V PCI, 32-bit, 33 MHz |
| Data Bus |
16-bit |
| Card ID |
No |

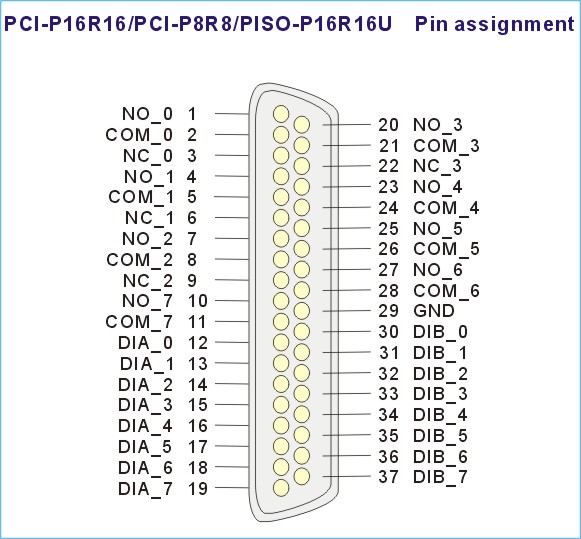

| I/O Connector |
Female DB37 x 1 |
Female DB37 x 1
40-pin box header x 1 |
| Dimensions (L x W x D) |
183 mm x 105 mm x 22 mm |
| Power Consumption |
500 mA @ +5 V |
800 mA @ +5 V |
| Operating Temperature |
0 ~ 60 ¢XC |
| Storage Temperature |
-20 ~ 70 ¢XC |
| Humidity |
5 ~ 85% RH, non-condensing |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| PCI-P16R16 CR |
16-channel isolated digital input,16-channel Relay output (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors. |
| PCI-P8R8 CR |
8-channel isolated digital input,8-channel Relay output (RoHS)
Includes one CA-4002 D-Sub connector. |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45¢X)) |
| CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180¢X)) |
| CA-3710DM |
DB-37 Male-Male Cable, 1.0 M, 180¢X. (RoHS) |
| CA-3730DM |
DB-37 Male-Male Cable, 3.0 M, 180¢X. (RoHS) |
| CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| CA-4037W |
40-pin flat & D-sub 37-pin Female cable 24 cm. |
| DB-37 |
Directly connect signal to D-sub 37-pin connector |
| DN-37 |
DIN Rail Mounting 37-pin Connector |
|
|
|
|
| |
|
|
|
|
|
| |
