SG-3081-G
Isolated DC Current Input/Output Module |
|
| |
| |
 |
| Model: SG-3081-G |
|
|
|
|
| |
 |
| Analog Input |
| Input Channels |
1 |
| Input Type (Unipolar) |
0 ~ 20 mA, 4 ~ 20 mA |
| Input impedance |
250 Ω |
| Input bandwidth |
1KHz |
| Analog Output |
| Channels |
1 |
| Voltage Output (Unipolar) |
0 ~ 5 V, 0 ~ 10 V |
| Voltage Output impedance |
<50 Ω (10 mA max) |
| Current Output (Source) |
0 ~ 20mA, 4 ~ 20mA |
| Current load resistor |
0 ~ 500 Ω (Source) |

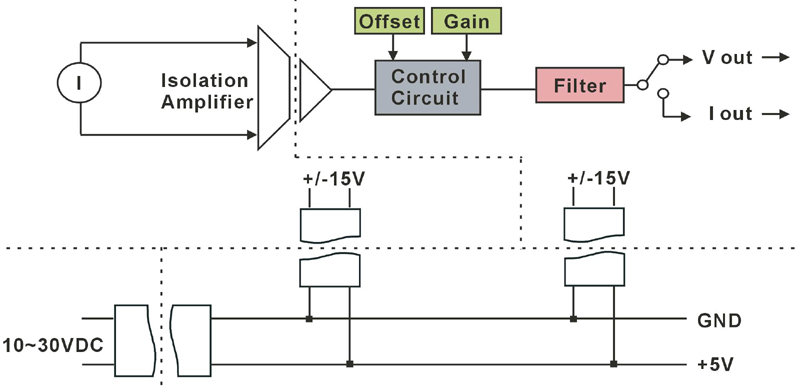

| Other specifications |
| Three-way isolation |
1000 VDC |
| Accuracy |
±0.1% of full range |
| Weight |
95.5 gram |
| LED Display |
| 1 LED as Power/Communication indicator |
| Power |
| Input |
+10 ~ +30 VDC |
| Power Consumption |
1.61 W(Voltage Output), 2.10 W(Current Output) |
| Environment |
| Operating temperature |
-25 °C ~ 75 °C |
| Storage temperature |
-30 °C ~ 75 °C |
| Humidity |
5 ~ 95%, non-condensing |
|
| |
 |
SG-3081 Input To Output Setting |
Input |
Output |
Polarity |
4 ~ 20 mA |
4 ~ 20 mA |
Unipolar |
4 ~ 20 mA |
0 ~ 20 mA |
Unipolar |
4 ~ 20 mA |
0 ~ 10 V |
Unipolar |
4 ~ 20 mA |
0 ~ 5 V |
Unipolar |
0 ~ 20 mA |
0 ~ 20 mA |
Unipolar |
0 ~ 20 mA |
4 ~ 20 mA |
Unipolar |
0 ~ 20 mA |
0 ~ 10 V |
Unipolar |
0 ~ 20 mA |
0 ~ 5 V |
Unipolar |
|
| |
 |
| SG-3081-G |
Isolated DC Current Input/Output Module |
| SG-3081-G CR |
Isolated DC Current Input/Output Module (RoHS) |
|
| |
 |
|
| |
|
