SG-3016/SG-3016-80
Isolated Strain Gauge Input Module |
|
| |
| |
~ NEW ~ |
 |
 |
| Model: SG-3016 |
Model: SG-3016-80 |
|
|
|
|
| |
 |

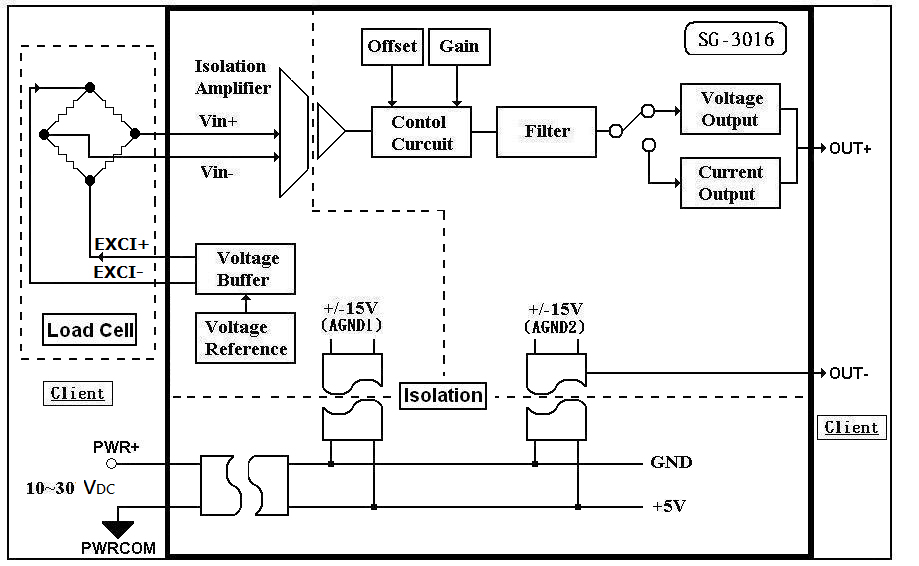

| Models |
SG-3016 |
SG-3016-80 |
| Analog Input |
| Input Channels |
1 |
| Input Type |
±10 mV, ±20 mV, ±30 mV, ±50 mV, ±100 mV |
| Excitation Voltage Output |
| Output Channels |
1 |
| Output Range |
0 ~ +10 VDC |
| Max Output Load |
+20 mA |
| Analog Output |
| Channels |
1 |
| Voltage Output (Bipolar) |
±5 VDC, ±10 VDC |
| Voltage Output (Unipolar) |
0 ~ +10 VDC, 0 ~ +5 VDC |
| Voltage Output impedance |
<50Ω |
| Current Output(Source) |
0 ~ +20 mA |
| Current load resistor |
0~500Ω(Source) |
| Other specifications |
| Three-way isolation |
1000 VDC |
| Accuracy |
±0.1% of full range |
| Bandwidth |
>600 Hz |
<30 Hz |
| Weight |
102.5 gram |
| LED Display |
| 1 LED as Power/ Communication indicator |
| Power |
| Input |
+10 ~ +30 VDC |
| Power Consumption |
1.44W(Voltage Output) ,1.74W(Current Output) |
| Environment |
| Operating temperature |
-25 °C ~ 75 °C |
| Storage temperature |
-30 °C ~ 75 °C |
| Humidity |
5 ~ 95%, non-condensing |
|
| |
| Input/Outout Range |
SG-3016 Input To Output Range |
Input (mV) |
Output |
Polarity |
±10, ±20, ±30, ±50, ±100 |
±10V |
Bipolar |
±10, ±20, ±30, ±50, ±100 |
±5V |
Bipolar |
+10, +20, +30, +50, +100 |
0~10V |
Unipolar |
+10, +20, +30, +50, +100 |
0~5V |
Unipolar |
+10, +20, +30, +50, +100 |
0~20mA |
Unipolar |
|
| |
 |
| SG-3016-G |
Isolated Strain Gauge Input Module (Gray Cover) |
| SG-3016-G CR |
Isolated Strain Gauge Input Module (Gray Cover) (RoHS) |
| SG-3016-80-G CR |
Isolated Strain Gauge Input Module with Low pass filter (Gray Cover) (RoHS) |
|
| |
 |
|
| |
|
|
| |
|
|
