USB-2026
5-channel Analog Input, 2-channel Analog Output,
2-channel Digital Input and 2-channel Digital Output Module

~ NEW ~
Model: USB-2026

  • Multifunction (5 AI, 2 AO, 2DI and 2 DO)
  • Overload and Short Circuit Protection for Digital Output
  • 240 Vrms Overvoltage Protection for Voltage Input
  • 4kV ESD protection
  • Wide Operating Temperature Range
  • 3000 VDC Intra-Module Isolation
  • USB 2.0 Full-Speed (12Mbps)
  • USB Bus Powered
  • Lockable USB cable
  • Driver Free

The USB-2026 is a multifunction module that includes 5 analog input channels, 2 analog output channels, 2 digital input channels, 2 digital output channels and compatibles with USB 2.0 full-speed. It equips small size, portable, USB bus powered, various input type features to help user build up own project easily and quickly. Compare with traditional PC I/O card, it is waste of time to open chassis and configure I/O board. In ICP DAS USB I/O, you will enjoy the simply controlling I/O in the efficient way. ICP DAS USB I/O equips USB bus powered feature, one cable to access I/O and provide power without additional power wiring. ICP DAS USB I/O is a small size module. You can use these I/O modules in wide range application, ex: fan-less control or measurement, automatically testing with BOX-PC…etc. ICP DAS USB I/O provides 10kS/s data acquisition functionality. User can apply this to real-time demanded application, ex: noise measurement.

The USB-2026 provides a programmable input range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0 ~ +20 mA), analog outputs are 12-bit at +/-5 V, +/-10 V, 0 ~ +20 mA or +4 ~ +20 mA and all digital outputs can be set as alarm output. Each analog input can be configured for an individual range and provides a high overvoltage protection of 240 Vrms.

  • Automation
  • Measurement and testing
  • Laboratory research

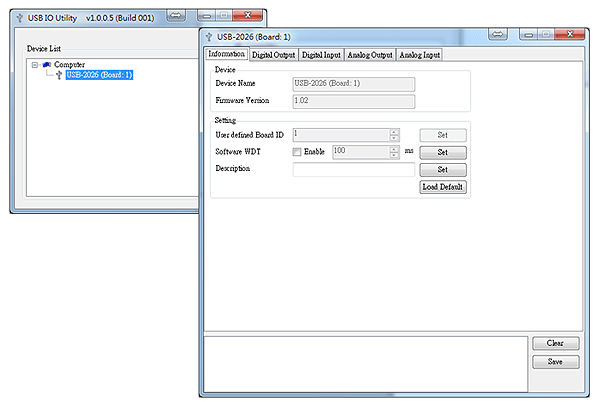

USB-2K Utility
USB-2K Utility provides a simple way to easily test and instant acquire data for all ICP DAS USB IO series modules without programming.
  • USB module configuration
  • I/O configuration
  • Log Data analysis
  • Easy to test
VB/C++/C#.NET/VB.NET SDK
ICP DAS provides a SDK for USB I/O modules to help user to develop own project easily and quickly. The SDK can be supported in VB/C++/C#.NET/VB.NET to fulfill project development.

Analog Input
Channels 5 Differential
Input Type Voltage: ±1 V, ±2.5 V, ±5 V, ±10 V
Current: ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
Resolution Normal Mode 14 bit
Fast Mode 12-bit
Sampling Rate Normal Mode 10 Hz total
Fast Mode 200 Hz total
Accuracy Normal Mode ±0.1% FSR
Fast Mode ±0.5 % FSR
Zero Drift ±20 μV/°C
Span Drift ±25 ppm/°C
Input Impedance Voltage: 20 MΩ
Current: 135 Ω
Overvoltage Protection Voltage: 120 VDC
Current: N/A
Overcurrent Protection Voltage: N/A
Current: Yes, 50 mA at 110 VDC
Analog Output
Channels 2
Range (Jumper Selectable) Voltage: +0~+5 VDC, +0~+10 VDC, ±5 VDC, ±10 VDC
Current: +0~+20 mA, +4~+20 mA
Resolution 12-bit
Accuracy ±0.1% of FSR
Output Capacity Voltage Output Capability 10 V @ 20 mA
Open Wire Detection Yes, for 4 ~ 20 mA only
Power On Value Yes
Safety Value Yes
Digital Input
Channel 2
Type Dry Contact (Source)
On Voltage Level Close to GND
Off Voltage Level Open
Input Impedance 10 KΩ, 0.5 W
Counters Channels 2
Max. Count 4,294,967,285 (32-bit)
Max. Input Frequency 100 Hz
Min. Plus Width 10 ms
Overvoltage Protection ±57 VDC
Digital Output
Channels 2
Type Isolation Open Collector (Sink)
Max. Load Current 700mA/Channel
Load Voltage +3.5 ~ 50 VDC
Overvoltage Protection ±60 VDC
Overload Protection 1.4 A (with short-circuit protection)
Short Circuit Protection Yes
Power-on Value Yes, Programmable
Safe Value Yes, Programmable
Communication
Interface USB 2.0 Full-Speed (12Mbps)
Watchdog 1 Hardware watchdog (1.6 second)
1 Software watchdog (Programmable)
LED Indicators
System LED Indicators 3 LED as Power, Run and Error
EMS Protection
ESD (IEC 61000-4-2) 4 kV contact for each terminal
8 kV air for random point
Mechanical
Dimensions (W x L x H) 33 mm × 78 mm × 107 mm
Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, non-condensing

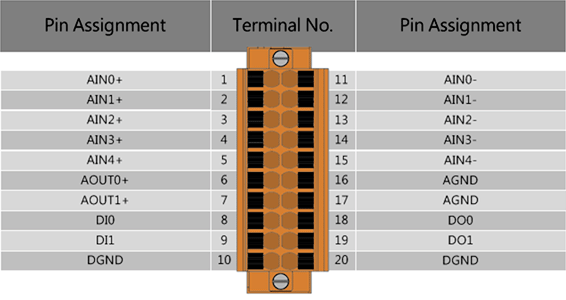

USB-2026 5-channel Analog Input, 2-channel Analog Output, 2-channel Digital Input and 2-channel Digital Output Module
