| PIN Assignment |
 |
| |
 |
| |
| RJ11 Pin Assignment |
 |
| Pin |
Descriptions |
| 1 |
+VS |
Power Input (+10 ~ +30 VDC) |
| 2 |
| 3 |
DATA+ |
RS-485 Interface (D+) |
| 4 |
DATA- |
RS-485 Interface (D-) |
| 5 |
GND |
Ground |
| 6 |
|
|
| |

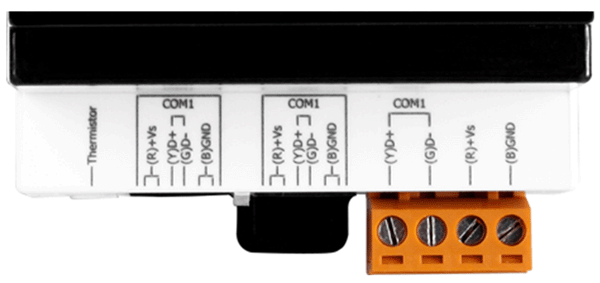

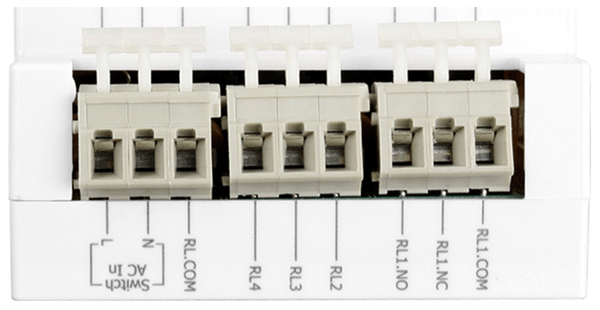

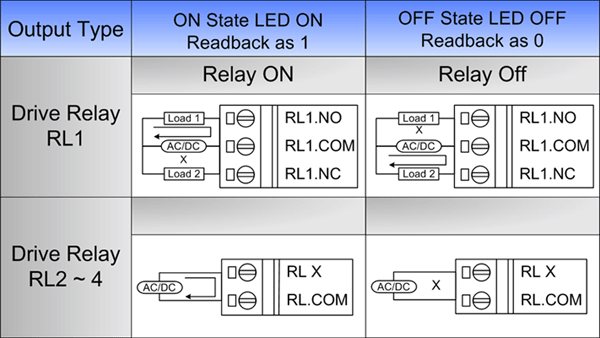

| Terminal Block Assignment |
 |
| Pin |
Descriptions |
| 1 |
DATA+ |
RS-485 Interface (D+) |
| 2 |
DATA- |
RS-485 Interface (D-) |
| 3 |
+VS |
Power Input (+10 ~ +30 VDC) |
| 4 |
GND |
Ground |
|
|
| |
|
|
