CL-210-WF/CL-211-WF/CL-212-WF/CL-213-WF
Remote PM2.5/CO/CO2 Temperature/Humidity/Dew Point Data Logger Module |
|
|
~ NEW ~ |
 |
Model: CL-210-WF/CL-211-WF/CL-212-WF/CL-213-WF |
|
|
 |
- Able to record PM2.5, CO, CO2, Temperature, Humidity and Dew Point Measurements
- Non-dispersive Infrared (NDIR) CO2 Senso
- Up to 450,000 records with date and time stamps

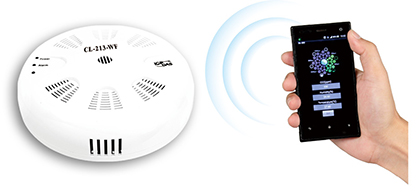

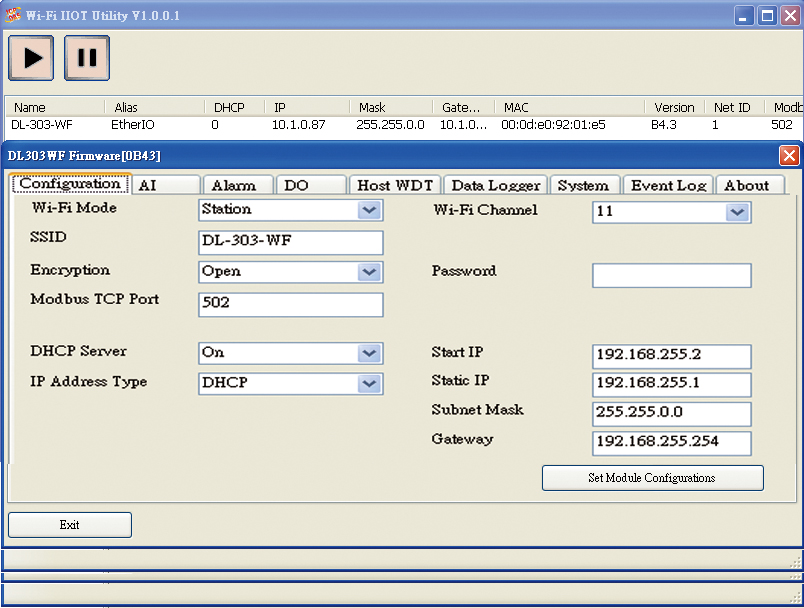

- Simple and Powerful Software Utility, iOS APP and Android App Included
- Supports the DCON and Modbus RTU/TCP Protocols
- Supports the MQTT Protocol for Ethernet Interface
- Includes RS-485/Ethernet/Wi-Fi Communication Interfaces
- Relay Output for Alarm or IAQ Device Control
- Compatible with IEEE802.11b/g/n standards
- Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input

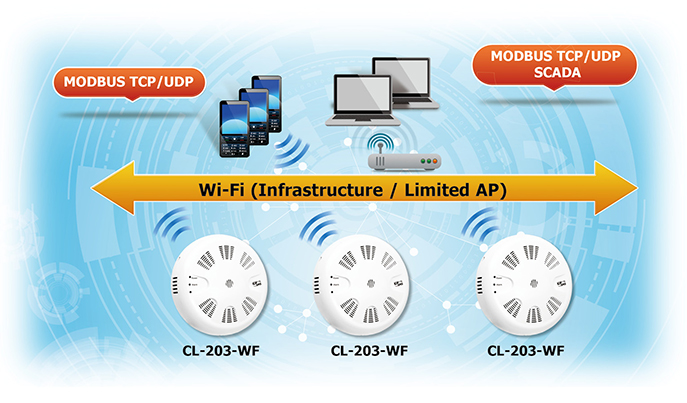

- Support Infrastructure and Limit-AP Modes for Wireless Networks
- Ceiling Mounting or Wall Mounting
|
|
|
|
 |
The CL-200-WF is an IAQ (Indoor Air Quality) monitoring module that includes Wi-Fi, Ethernet and RS-485 interfaces, It provides a WLAN connection which complies with the IEEE802.11b/g/n standards. With the popularity of 802.11 network infrastructure, the modules provide an easy method of incorporating
wireless connectivity into monitoring and control systems. The CL-200-WF series of Data Logger devices can be used to record PM2.5, CO, CO2, Temperature, Real-time data can be accessed from the CL-200-WF Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger.

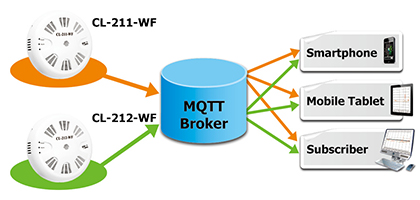

Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP. For Ethernet interface, it also supports the emerging machineto-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The CL-200-WF Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet, PoE and Wi-Fi, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easily maintained in a distributed control system. |
|
|
 |
|
- Transportation of Food or Pharmaceuticals
- Food and Beverage Industry (HACCP)
- Blood Stations and Pharmacies
- Building and Energy Management
- Warehouse Management
- Museums, Archives and Galleries
|
 |
|
|

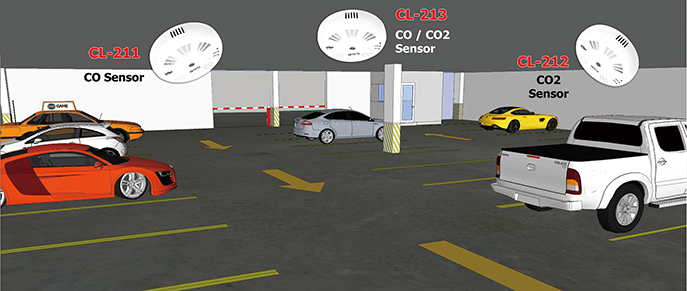

Indoor or Underground Parking Lot Automatic Monitoring Solution
The air quality automation system for indoor or underground parking lot can use the CL-200-WF series modules to monitor the health and safety information, such as CO, CO2, temperature, humidity and dew point, and more... |
 |
|
 |
Model |
CL-210-WF |
CL-211-WF |
CL-212-WF |
CL-213-WF |
System |
PM2.5 Alarm |
Yes |
CO Alarm |
- |
Yes |
- |
Yes |
CO2 Alarm |
- |
Yes |
Yes |
RH/Temperature Alarm |
|
Real Time Clock |
Yes |
Data Logger |
Yes, up to 450,000 records |
Relay Output |
Form A×1, SPST 30 VDC @ 16 A or 250 VAC @ 16 A |
Communication |
RS-485 Port |
Baud Rate = 1200 ~ 115200 bps |
Ethernet Port |
10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicators) |
Security |
IP filter (whitelist) and Password (web) |
Protocol |
Modbus/RTU(RS-485), Modbus TCP(Ethernet, Wi-Fi) and MQTT(Ethernet) |
Dual Watchdog |
Yes, Module (2.3 seconds), Communication (Programmable) |
Wi-Fi Interface |
Antenna |
Antenna = 1 dBi (PCB Antenna) |
Output Power |
18 dBm @ 1 DSSS, 14.5 dBm @ 54 OFDM |
Receive Sensitivity |
-95.7 dBm @ 1 DSSS, -74.0 dBm @ 54 OFDM |
Standard Supported |
IEEE 802.11 b/g/n |
Wireless Mode |
Infrastructure & Limited AP |
Encryption |
WEP, WPA and WPA2 |
Transmission Range |
50 meters (LOS) |
Electrical |
Powered from Terminal Block |
+12 to +48 VDC |
Power Consumption |
Non-PoE |
2.7 W (Max.) |
2.8 W (Max.) |
2.9 W (Max.) |
2.9 W (Max.) |
PoE |
2.8 W (Max.) |
2.9 W (Max.) |
3.0 W (Max.) |
3.0 W (Max.) |
Mechanical |
Installation |
Ceiling Mounting/Wall Mounting |
Protection Class |
IP20 |
Dimensions (D x H) |
Ø 150 mm x 53 mm |
Environment |
Operating Temperature |
0 to +50°C |
Storage Temperature |
-30 to +75°C |
Humidity |
10 to 90% RH, Non-condensing |
|
|
 |
Model |
CL-210-WF |
CL-211-WF |
CL-212-WF |
CL-213-WF |
PM2.5 Measurement |
Range |
0 ~ 400 μg/m3 |
Resolution |
1μg/m3 |
Response Time |
<= 1 min. |
CO Measurement |
Range |
- |
0 to 1000 ppm
(Electrochemical) |
- |
0 to 1000 ppm
(Electrochemical) |
Resolution |
- |
1 ppm |
- |
1 ppm |
Accuracy |
- |
±5% of measured value |
- |
±5% of measured value |
Response Time |
- |
30 seconds |
- |
30 seconds |
Warm-up Time |
- |
300 seconds |
- |
300 seconds |
CO2 Measurement |
Range |
|
0 to 9999 ppm (NDIR) |
Resolution |
|
1 ppm |
Accuracy |
|
±40 ppm ±3% of measured value |
Response Time |
|
120 seconds |
Warm-up Time |
|
5 minutes |
Temperature Measurement |
Range |
-10 to +50°C |
Resolution |
0.1°C |
Accuracy |
±0.6°C |
Relative Humidity Measurement |
Range |
0 to 100% RH, Non-condensing |
Resolution |
0.1% RH, Non-condensing |
Accuracy |
±5% RH, Non-condensing |
Dew Point |
Range |
Calculated using temperature and relative humidity |
Resolution |
0.1°C |
|
|
 |
|
|
|

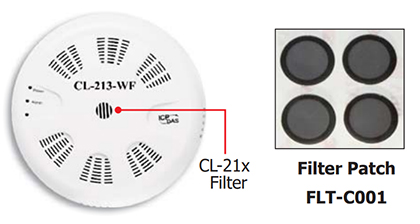

Replaceable Filter Patch:
CL-21x Series offers a replaceable fi lter patch on the back of the hood fi lter. This mechanism makes users to replace only the fi lter patch rather than uninstall all devices. |
|
CL-2xx-E + RJ45 Cable:
CL-2xx-E (Ethernet Type) are with optional angle-bent RJ45 cable to smoothly install the Ethernet plug in the hole of the ceiling-mounted. |

|
|
|
|
|
 |
CL-210-WF CR |
Remote PM2.5/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485/Wi-Fi Interfaces and PoE (RoHS) |
CL-211-WF CR |
Remote PM2.5/CO/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485/Wi-Fi Interfaces and PoE (RoHS) |
CL-212-WF CR |
Remote PM2.5/CO2/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485/Wi-Fi Interfaces and PoE (RoHS) |
CL-213-WF CR |
Remote PM2.5/CO/CO2/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485/Wi-Fi Interfaces and PoE (RoHS) |
|
|
 |
|
|
|
|
|
|
|
